XLPE Insulated Duplex Triplex Quadruplex 1*2AWG+1*2AWG Service Drop Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Material Shape：Round Wire
- Wire Core Material：Aluminum
Base Info
- Model NO.：ABC cable XLPE insulation
- Certification：ISO, CCC, CE
- Model：ABC Cable
- Brand：Yifang
- Conductor：1350 Aluminum
- Insulation：XLPE
- Neutral Messenger：AAC,AAAC,ACSR
- Number of Core：Multi Core

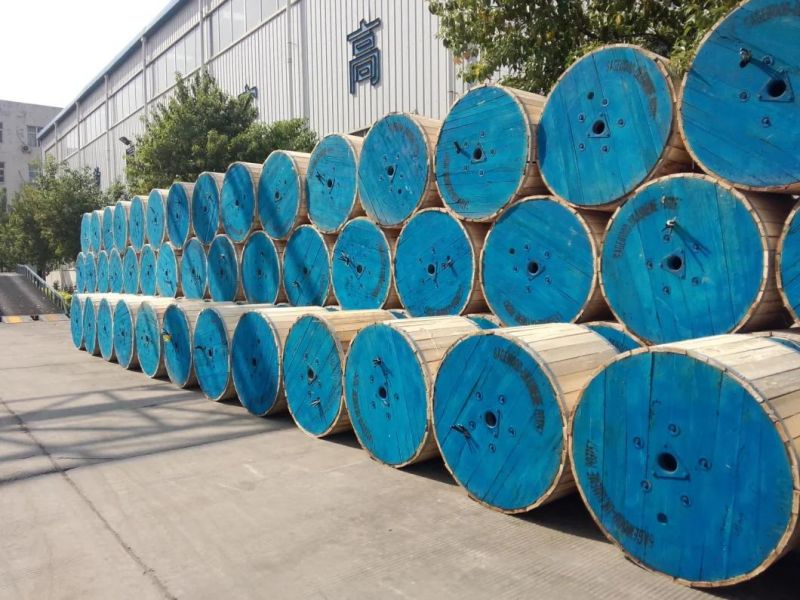

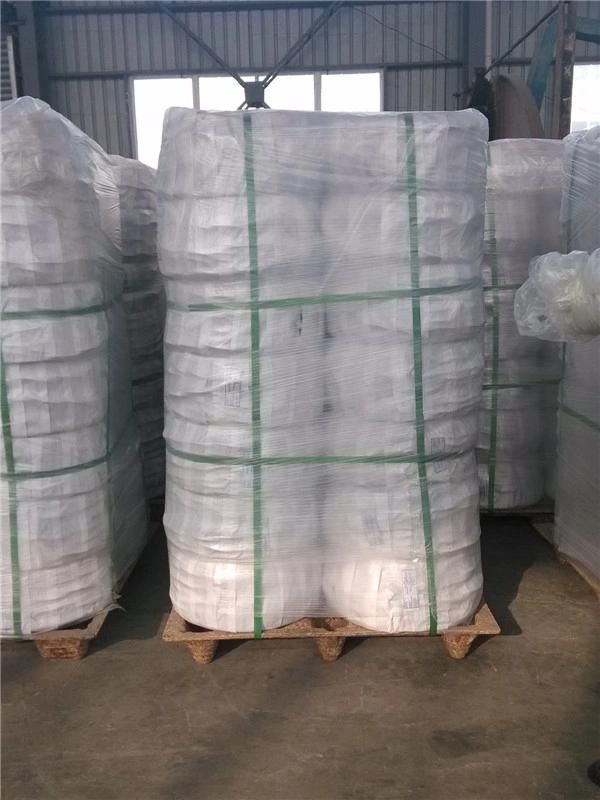

- Transport Package：Coil, Reel, Drum
- Specification：1*2AWG+1*2AWG
- Trademark：Yifang cable
- Origin：Henan Zhengzhou
- HS Code：8544492100
- Production Capacity：3000 Km,Year
Description
Code wordAWG or kcmil Bare neutral messenger Phase conductor Weight kg/km ACSR stranding and wires dia. (mm) Rated strength (lbs) AAC Insulation thickness (mm) Stranding and wires dia. (mm) Setter 1*6AWG+1*6AWG 1/1.68+6/1.68 1190 1/4.11 1.14 111 Shepherd 1*6AWG+1*6AWG 1/1.68+6/1.68 1190 7/1.56 1.14 113 Eskimo 1*4AWG+1*4AWG 1/2.12+6/2.12 1860 1/5.19 1.14 171 Terrier 1*4AWG+1*4AWG 1/2.12+6/2.12 1860 7/1.96 1.14 173 Chow 1*2AWG+1*2AWG 1/2.67+6/2.67 2850 7/2.47 1.14 266 Bull 1*1/0AWG+1*1/0AWG 1/3.37+6/3.37 4380 19/1.89 1.52 427
