• Model NO.：ABC cable
• Wire Core Material：Aluminum or AAAC ACSR
• Certification：ISO, CCC, CE
• Model：Aerial Bundled Cable
• Brand：Yifang
• Standard：NFC 33209
• Color：Black
• Insulation：XLPE
• Neutral：AAAC 54.6mm2

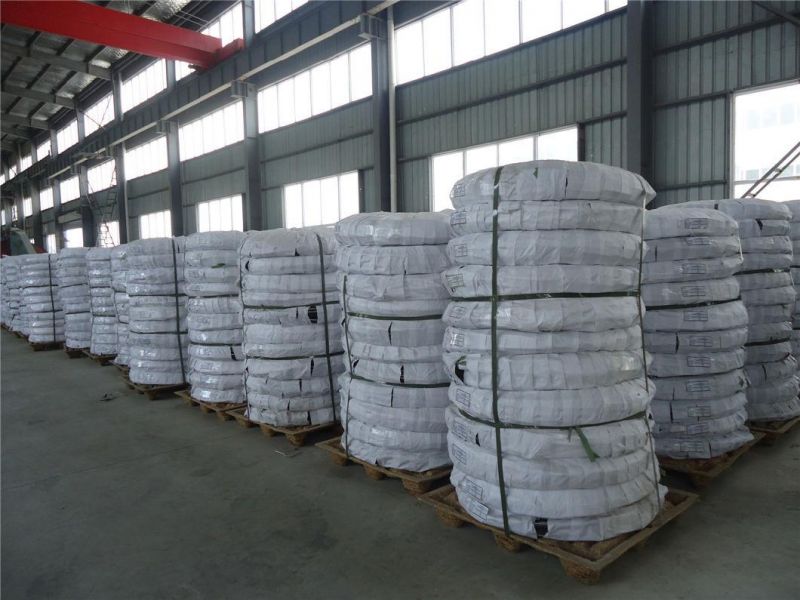

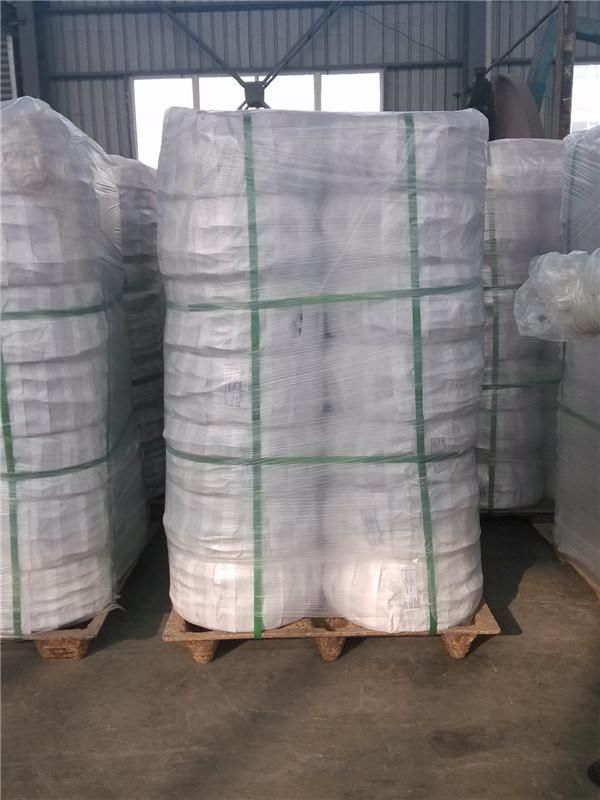

• Transport Package：Drum Circles or According to U Request
• Specification：3X50+54.6+16MM2
• Trademark：Yifang cable
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：500, 000kilometers Per Month

Basic Info.

Model NO. ABC cable Wire Core Material Aluminum or AAAC ACSR Certification ISO, CCC, CE Model Aerial Bundled Cable Brand Yifang Standard NFC 33209 Color Black Insulation XLPE Neutral AAAC 54.6mm2 Transport Package Drum Circles or According to U Request Specification 3X50+54.6+16MM2 Trademark Yifang cable Origin Zhengzhou, China HS Code 8544492100 Production Capacity 500, 000kilometers Per Month

Product Description

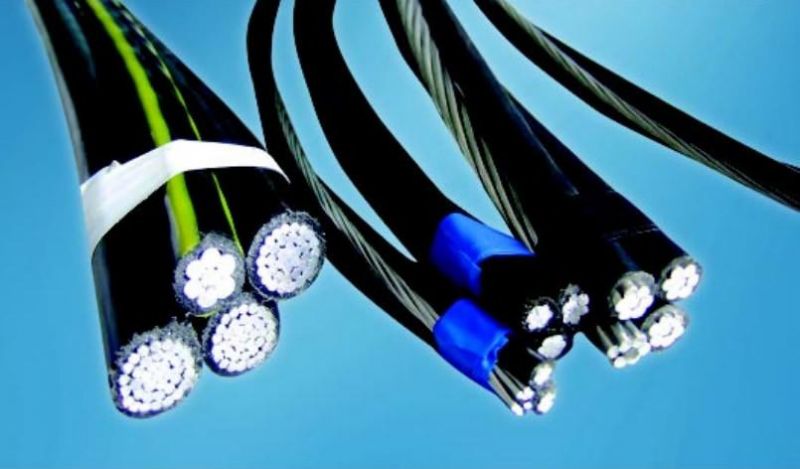

XLPE Insulation with Insulated 54.6mm2 AAAC Neutral Aerial Bundled Cable (ABC Cable)

Product Details:
Insulation Material XLPE
Application Overhead
Jacket NON SHEATH
Conductor Material Aluminum
Type Low Voltage
Place of Origin Henan China
Brand Name YIFANG
Model Number DUPLEX, TRIPLEX, QUADRUPLEX

Payment & Shipping Terms:
Payment Terms: L/C, T/T

1. Application of Aerial Bundle Cable:
Aerial Bundle Cable are used for electric power transmission, extensively used for rebuiding of urban and forest regions. They can improves safety and reliance of electrified wire netting.

2. Type of Aerial Bundle Cable:
Aerial Bundle Cable covers mainly three types:
Two core(Duplex Service Drop)
Three core(Triplex Service Drop)
Four core(Quadruplex Service Drop)
The cable can be produced whose construction is phase conductor with neutral bare conductor or phase conductor with insulated neutral conductor, etc. And we can still produce the cables according to the request of customers.

3. Construction of Aerial Bundle Cable:
Rated voltage 0.6/1kv
Phase conductor: Aluminium conductor
Insulation: PVC or PEe or XLPE
Neutral Bare Conductor: AAC, ACSR, AAAC.

Nominal Cross Section mm 2	1.5	2.5	4	6	10	16	25
Cu core Ohm/km	12.1	7.41	4.61	3.08	1.83	1.15	0.727
Al core Ohm/km	18.1	12.1	7.41	4.61	3.08	1.91	1.2
Nominal Cross Section mm 2	35	50	70	95	120	150	185
Cu core Ohm/km	0.524	0.387	0.268	0.193	0.153	0.124	0.0991
Al core Ohm/km	0.868	0.641	0.443	0.32	0.253	0.206	0.164
Nominal Cross Section mm 2	240	300	400	500	630	800	1000
Cu core Ohm/km	0.0754	0.06	0.047	0.0366	0.0283	0.0221	0.0176
Al core Ohm/km	0.125	0.1	0.0778	0.0605	0.0469	0.0367	0.0291
