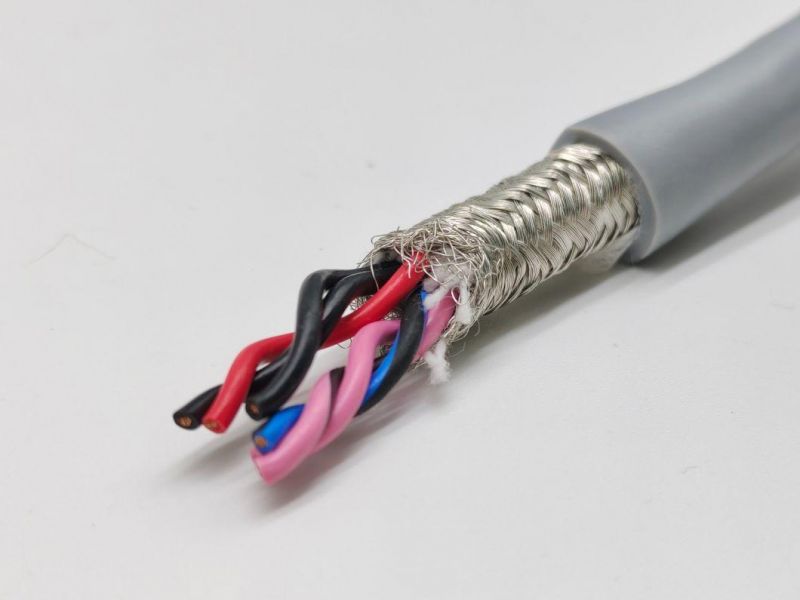

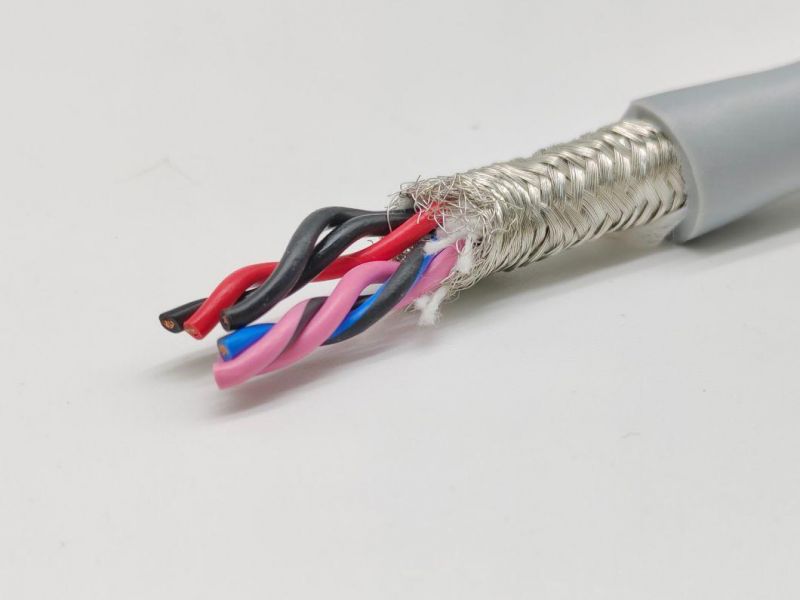

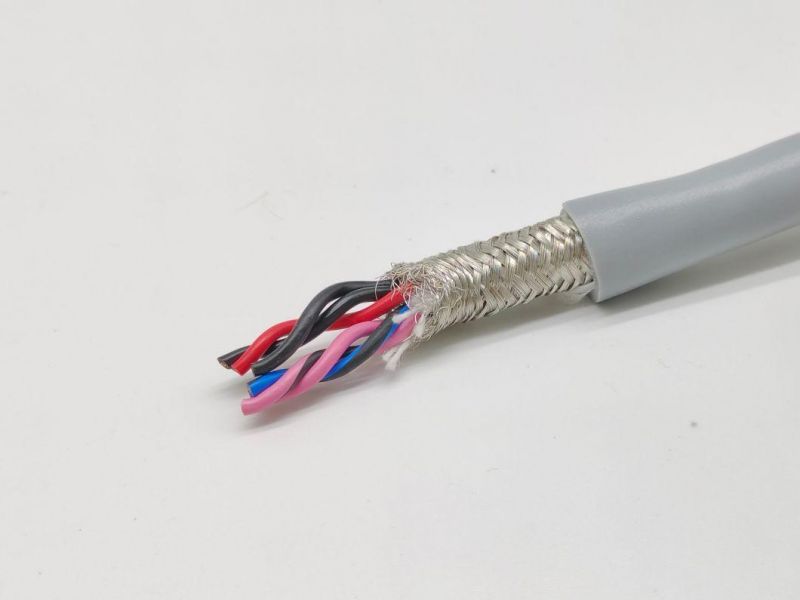

Paar-Tronic-Li-2ycyv PE-Insulated Data Cable with Twisted Pairs Helukabel Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PE
  • Material Shape：Round Wire

Base Info

  • Model NO.：PAAR-TRONIC-Li-2YCYv
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemPAAR-TRONIC-Li-2YCYv PE-Insulated Data CableConductorCopper wire bare, 0.5 - 1.5 mm²: finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5Wire structure0.14 mm²: approx. 18 x 0.10 mm
0.25 mm²: approx. 14 x 0.15 mm
0.34 mm²: 7 x 0.25 mmInsulationPE acc. to DIN VDE 0819-103 / DIN EN 50290-2- 23 (compound type LD/MD)WrappingFoil ScreenBraided screen of tinned copper wires, approx. coverage 85%Outer SheathPVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2), reinforced (v)Peak operating voltage250 V (not for high power current installation purposes)Test voltage core/core2000VTest voltage core/screen1800VTemperature RangeFlexible -5°C to +70°C
Fixed -30°C to +80°CColorOptionalCertificationCEApplicationPE-insulated data cable with twisted pairs, for interference-free transmission of data and signals over longer distances. The twisted-pair lay-up prevents electrical unbalances within the cable and this thus effectively suppresses cross-talking effects. The high transmission rates are particularly suitable for RS 422 and RS 485 interfaces; suitable for fixed installations in dry, damp and wet rooms, as well as outdoors and direct burial.
