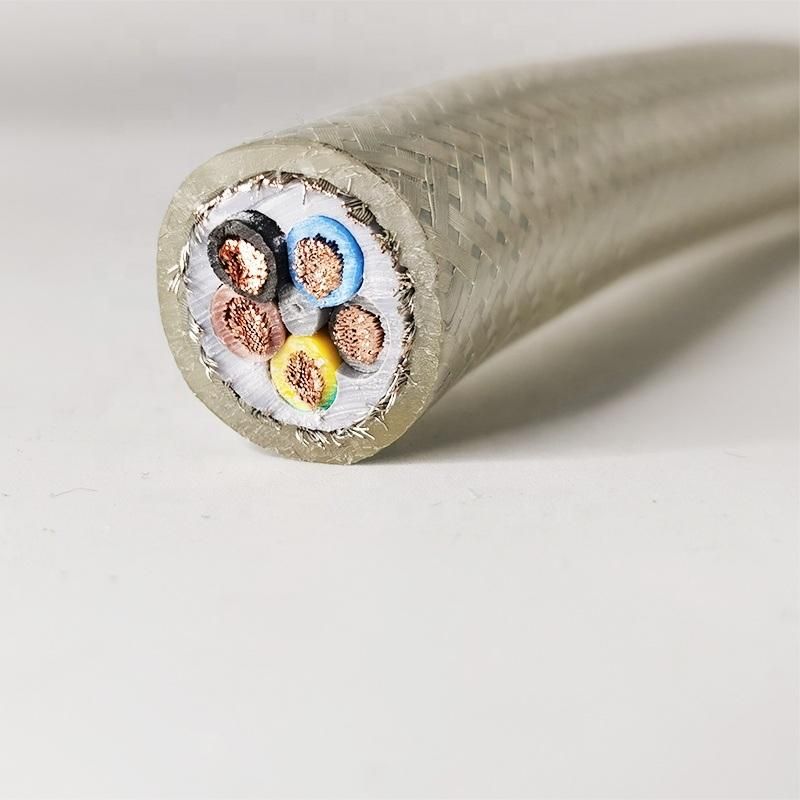

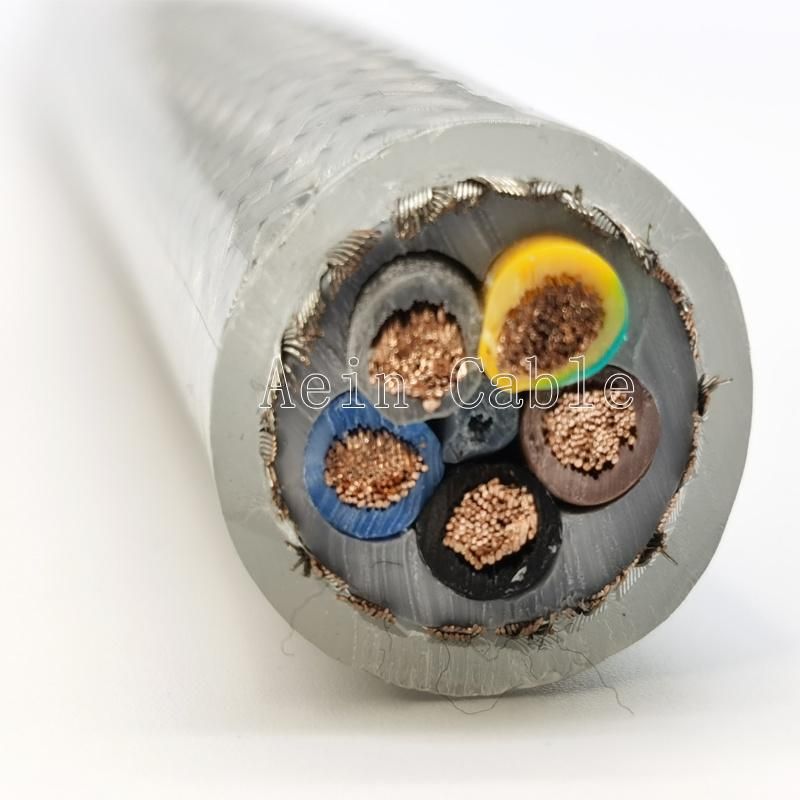

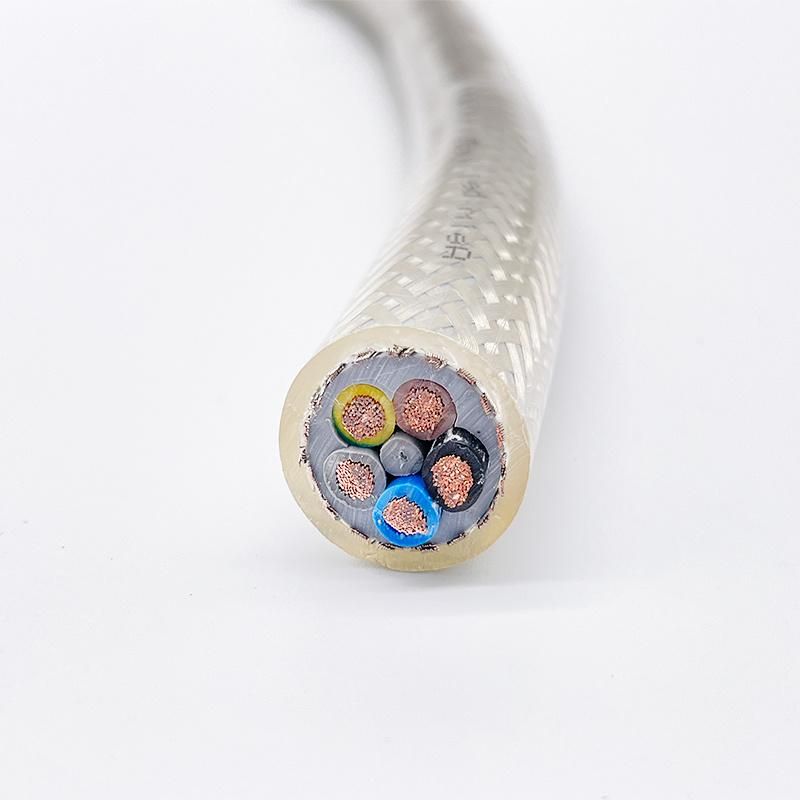

Y-Cy-Jz / Y-Cy-Oz PVC Control and Connection Cable Helukabel Alternative

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Y-CY-JZ , Y-CY-OZ
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemY-CY-JZ / Y-CY-OZ PVC Control and Connection CableConductorCopper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5InsulationPVC, compound type Z 7225Inner sheathPVCOuter SheathPVCScreenBraided screen of tinned copper wires, approx. coverage 85%Nominal voltageAC Uo /U 300/500 VTest voltage core/core4000 VBreakdown voltage 8000 VTemperature RangeFlexible -15°C to +80°C
Fixed -40°C to +80°CColorOptionalCertificationCEApplicationUsed for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control in dry rooms, however, not suitable for outdoor use. Used as a connection and control cable in measurement and control technology, in machine and machine tool construction, in conveyers and production lines, in computers, as well as signal cables in electronics. Due to the high screening density, interference-free transmission of signals or pulses is ensured. The PVC inner sheath increases the mechanical load capacity of the cable; the transparent PVC outer sheath makes the tinned copper braid optically effective.
