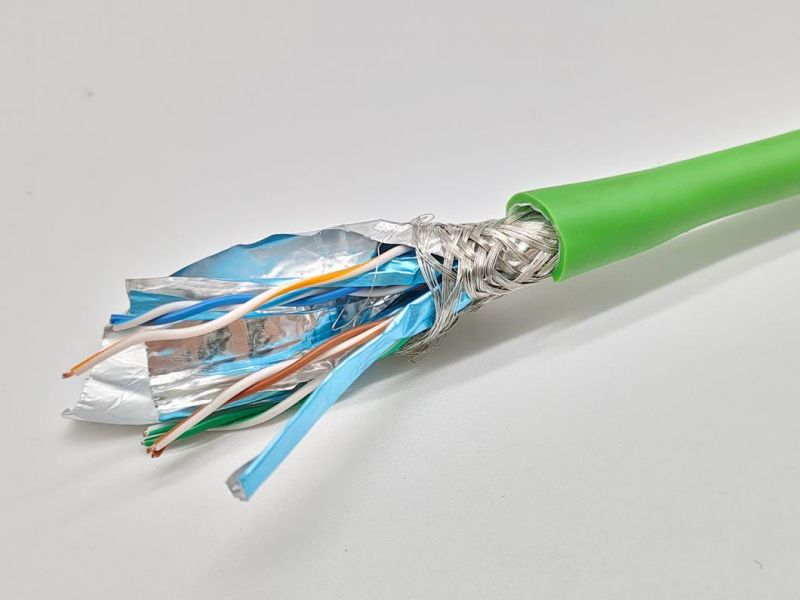

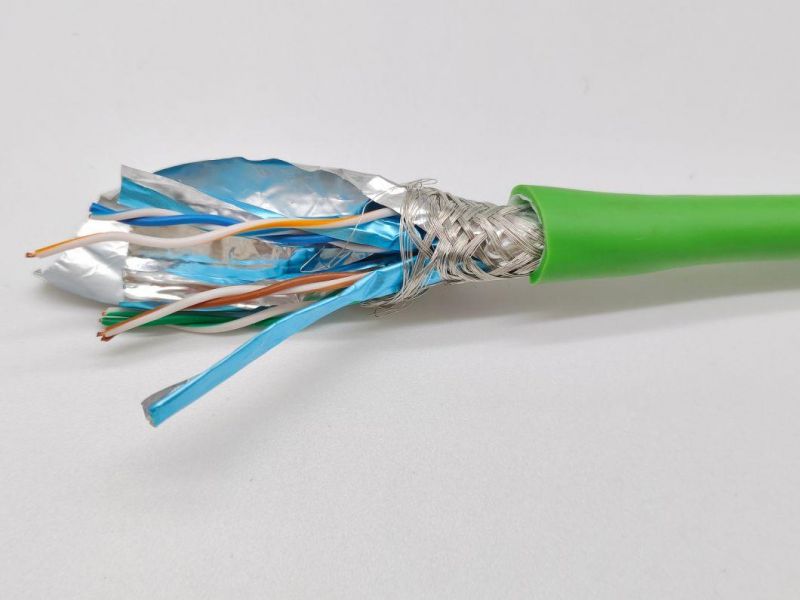

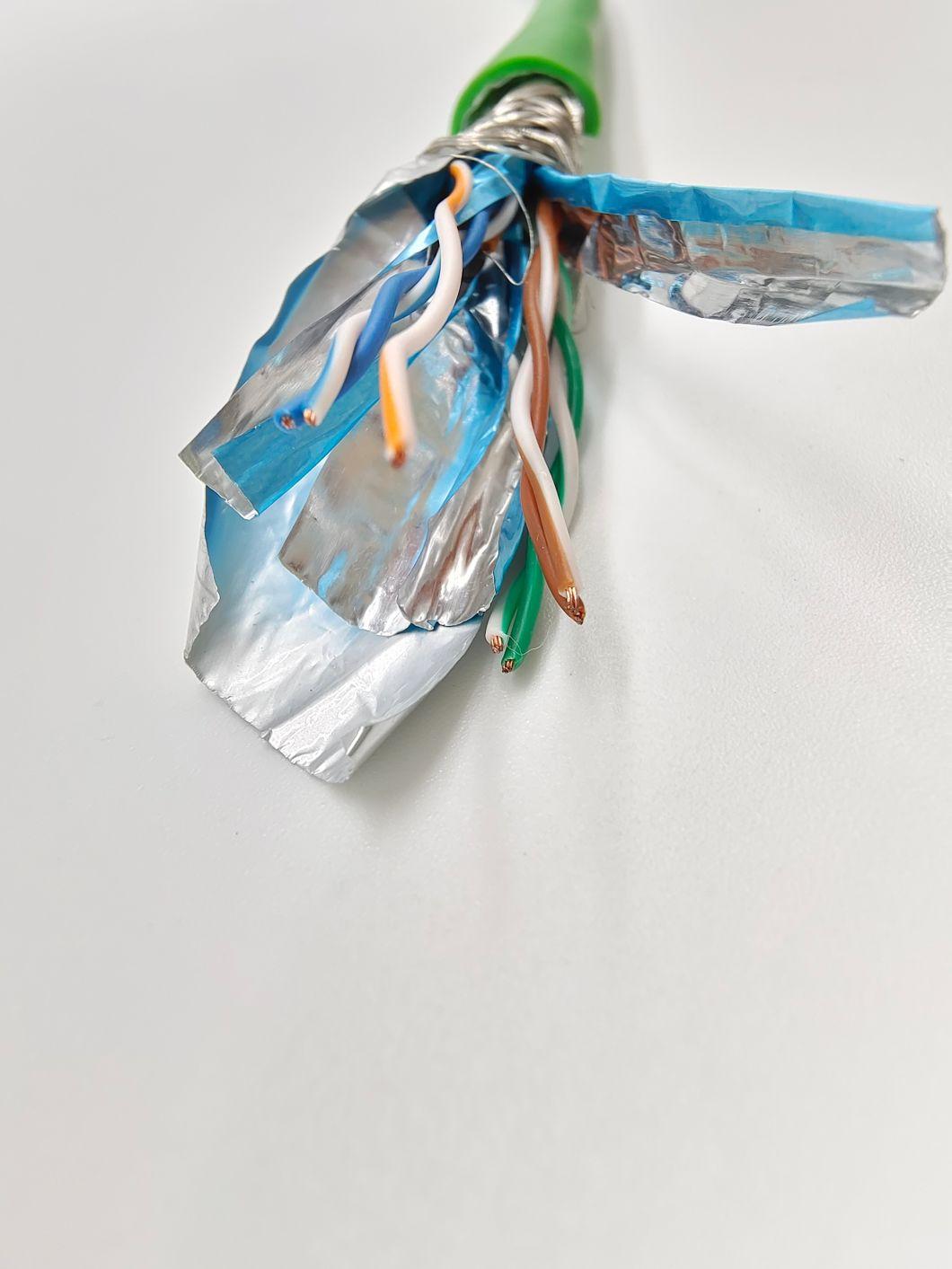

| Item | PAAR-TRONIC-CY-CY PVC Data Cable |
| Conductor | Copper wire bare, 0.5 mm²: finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5 |
| Insulation | PVC acc. to DIN VDE 0207-363-3 / DIN EN 50363-3 (compound type TI2) |
| Outer Sheath | PVC acc. to DIN VDE 0207-363-4-1 / DIN EN 50363-4-1 (compound type TM2) |
| Wrapping | Foil |
| Screen | Braided screen of tinned copper wires, approx. coverage 85% |
| Peak operating voltage | 0.14 mm²: 350 V
0.25 - 0.5 mm²: 500 V
(not for high power current installation purposes) |
| Test voltage core/core | 0.14 mm²: 1200 V 0.25 - 0.5 mm²: 2000 V |
| Test voltage core/screen | 800V |
| Temperature Range | Flexible -5°C to +80°C
Fixed -40°C to +80°C |
| Color | Optional |
| Certification | CE |
| Application | Used as a control and signal cable in electronic engineering, measurement and control technology. It provides interference-free transmission of data signals from peripheral equipment to information storage. Excellent connection cable for sound mixers, studio equipment and measurement and control technology. Reliable in process control, machining centres and safety-related systems. These cables with copper screening are ideally suited for interefence-free data and signal transmission for measurement and control technology. |
