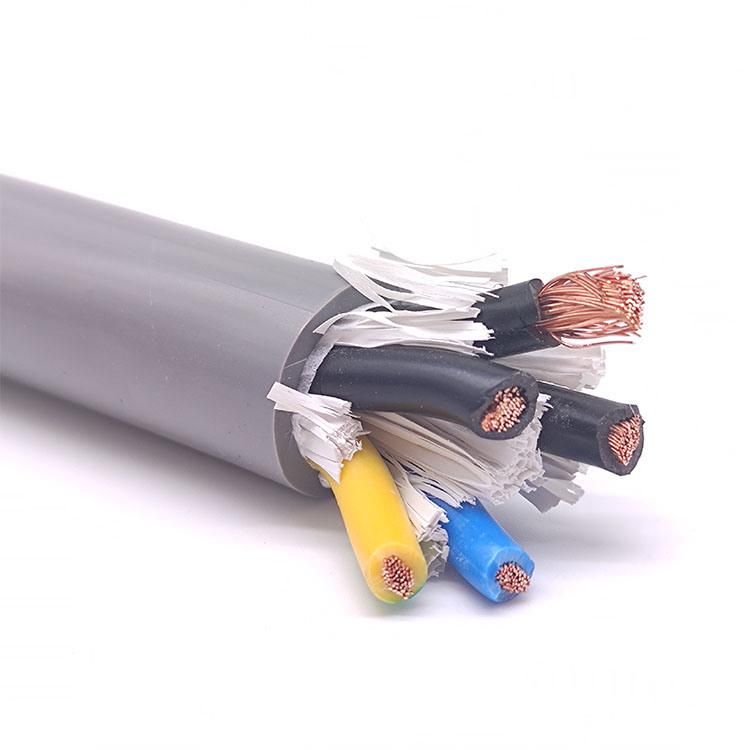

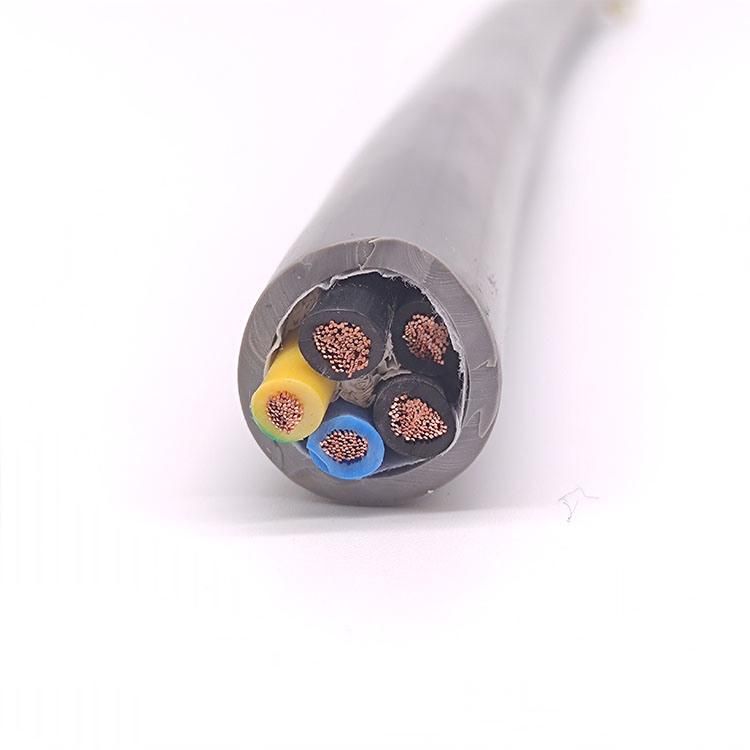

| Item | NHXMH-J / NHXMH-O Installation Cable |
| Conductor | Copper conductor bare, 1.5 - 10 mm²: solid acc. to DIN VDE 0295 Class 1 / IEC 60228 Class 1;16 - 35 mm²: stranded acc. to DIN VDE 0295 Class 2 / IEC 60228 Class 2 |
| Insulation | XLPE |
| Outer sheath | Halogen-free polymer acc. to DIN VDE 0207-24 (compound type HM2) |
| Core sheating (filling compound) | For multi-core cables |
| Nominal voltage | AC U o /U 300/500 V |
| Test voltage core/core | 2000V |
| Permissible operating temperature of the conductor | +70°C |
| Short circuit temperature at the conductor | +250°C |
| Temperature Range | Fixed -30°C to +70°C during installation +5°C to +70°C |
| Color | Optional |
| Certification | CE |
| TESTS | Halogen-free acc. to DIN VDE 0482-754-1 / DIN EN 60754-1 /
IEC 60754-1
Corrosiveness of combustion gases acc. to DIN VDE 0482-754-2 /
DIN EN 60754-2 / IEC 60754-2
Bundle fire test acc. to DIN VDE 0482-332-3-24 / DIN EN 60332-
3-24 / IEC 60332-3-24
Smoke density acc. to DIN VDE 0482-1034-1+2 / DIN EN 61034-
1+2 / IEC 61034-1+2
Ozone-resistant acc. to DIN VDE 0473-396 / DIN EN 50396 |
| Application | Halogen-free installation cables with enhanced characteristics in case of fire are used for applications where harm to human life and damage to property must be prevented in the event of fire, e. g. in industrial facilities, municipal facilities, hotels, airports, underground stations, railway stations, hospitals, department stores, banks, schools, theatres, cinemas, high-rise buildings, process control centres etc. Suitable for installation in dry, damp or wet environments; for installation above, on, in and under plaster as well as in masonry walls and in concrete, however not for direct embedding in vibration, compacted or tamped concrete. Suitable for outdoor installation as long as the cable is protected against direct sunlight. |
