• Model NO.：YMEKRVASDLWD
• Wire Core Material：Copper or Aluminum
• Certification：ISO, CCC, CE, RoHS
• Model：Yjlv72
• Brand：Hongda
• Manufacture：Yes
• Sample：Yes
• Core：Generally One or Three
• Conductor Material：Copper,Aluminum
• Insulated Color：as Your Requirement
• Sheath Color：Black
• Standard：IEC60502 or IEC60228
• Armor：Swa,Awa,Sta
• Transport Package：Wooden Drum
• Specification：35-1000mm2
• Trademark：Hongda CABLE
• Origin：China, Henan
• HS Code：8544602100
• Production Capacity：300km,Per Months

 SpecificationsProduct groupPower cable >= 1 kV, for permanent installationTypeYMeKrvasdlwd Fca 8,7/15 kV  StandardizationIEC 60502-2Conductor materialCopperConductor surfaceBareConductor categoryClass 2c = stranded & compactedMaterial core insulationCrosslinked polyethylene (XLPE)Material outer sheathMDPEReaction-to-fire according to EN 13501-6: ClassFcaLongitudinal water blocking screenYesRadial water blockingYesRadial watertight constructionAl/PEMax. conductor temperature90 °CNominal voltage U08.7 kVNominal voltage U15 kVNominal voltage Umax17.5 kV





YMEKRVASDLWD FCA 8,7/15 KV Longitudinal water blocking power cables specifications

Construction	Net weight (kg/m)	Outer diameter approx. (mm)	Conductor category	Shape of conductor
1 x 25 rs + as25 Red	0.887	26,7	Class 2c = stranded & compacted	Round
1 x 50 rs + as25 Red	1.138	28,7	Class 2c = stranded & compacted	Round
1 x 70 rs + as35 Red	1.45	30,3	Class 2c = stranded & compacted	Round
1 x 95 rs + as25 Red	1.636	31,9	Class 2c = stranded & compacted	Round
1 x 120 rs + as35 Red	1.979	33,4	Class 2c = stranded & compacted	Round
1 x 150 rs + as25 Red	2.175	34,9	Class 2c = stranded & compacted	Round
1 x 240 rs + as25 Red	3.162	38,9	Class 2c = stranded & compacted	Round
1 x 400 rs + as50 Red	4.734	44,3	Class 2c = stranded & compacted	Round
1 x 500 rs + as50 Red	6.034	47,6	Class 2c = stranded & compacted	Round
1 x 630 rs + as50 Red	7.385	51,7	Class 2c = stranded & compacted	Round

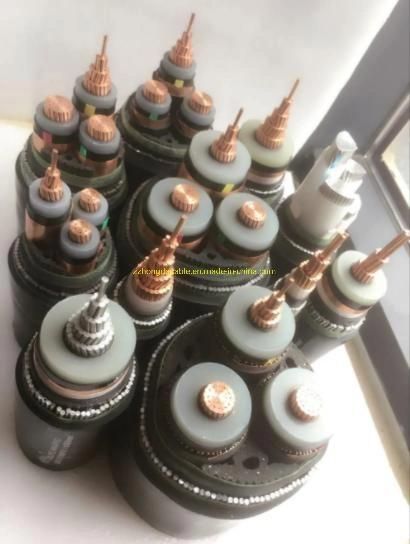

Custom designed medium voltage cables

In addition to standard medium voltage cables, we can design and supply bespoke MV cable products developed for your specific applications. Our custom designed cable solutions provide for variants developed and manufactured around a number of parameters, including:

Cross-sectional area: generally 35mm² up to 100mm2
Number of cores: generally one or three
Solid or stranded aluminium conductors: for applications requiring a lighter cable weight, also often more economical due to lower aluminium prices.
Stranded copper conductors: for applications requiring a smaller overall diameter and higher transmitting properties.
Bedding
Bonded or strippable out semi-conducting layer
Water tightness: longitudinal, longitudinal + quasi-radial, longitudinal + radial
Insulation layers (conductor screen, insulation and insulation screen): XLPE, which is more commonly used for MV cables, or EPR which is more flexible and often better suited to marine and offshore applications.
Metallic screen: to nullify the electric field outside the MV cable. Concentric copper wire screens, Aluminium foil laminate, or extruded lead alloy sheath.
Twisted three-core cable or triplex
Armouring: for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.
Tapes: Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.
Outer Sheath: compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.


Medium Voltage cable testing


Some of the tests you would expect from a medium voltage cable manufacturer, and which are performed on our MV cables, include:

Routine tests: These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath

Sample tests: These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test

Type tests: These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions.


^{Packaging&Delivery.}

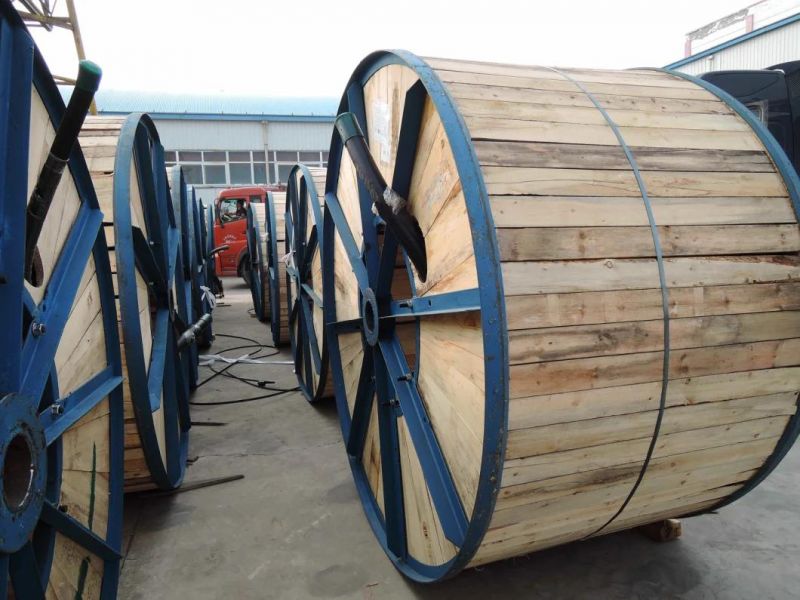

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 7 days(detailly depend on the order quantity)
