2X8AWG 2X10AWG 3X8AWG 3X6AWG Electric Copper Concentric Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE,PVC
- Sheath Material：PVC or PE
- Material Shape：Round Wire
Base Info
- Model NO.：Concentric Cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Concentric Cable
- Brand：Yifang
- Sheath Color：Black or Other as Per Required
- Conductor：Annealed Copper Wire
- Neutral Conductor：Annealed Copper Wire
- Core：1,2.3

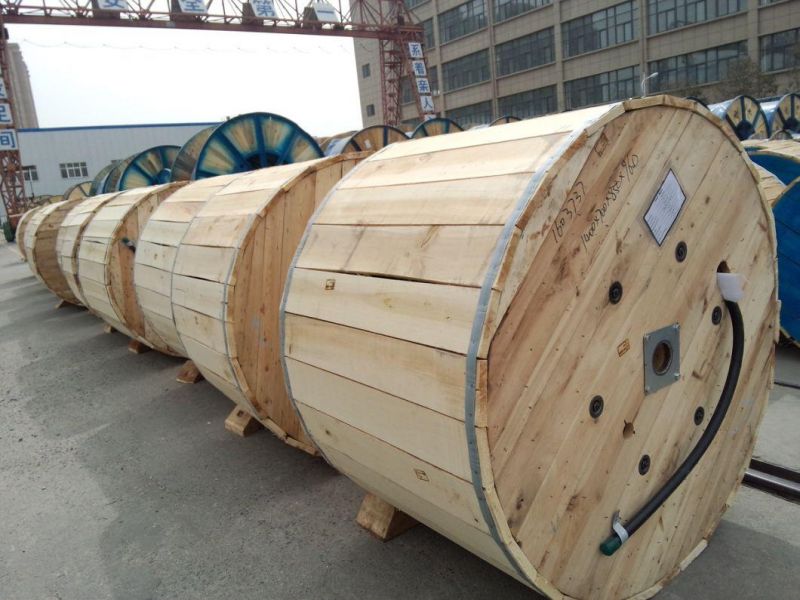

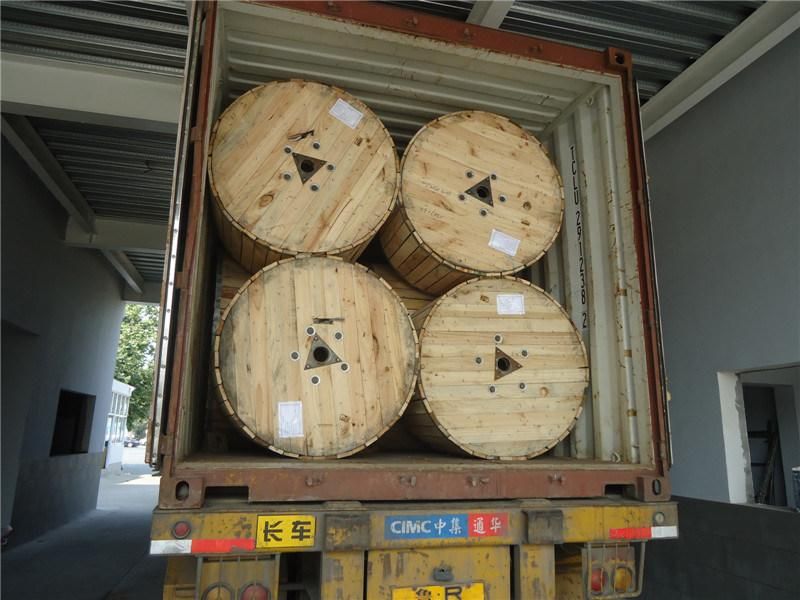

- Transport Package：Drum, Coil or According to Customers′ Request
- Specification：2x8awg 3x10awg
- Trademark：Yifang Cable
- Origin：Zhengzhou, Henan, China
- HS Code：8544492100
- Production Capacity：1000km Per Month
Description
Basic Info.
Model NO. Concentric Cable Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Concentric Cable Brand Yifang Sheath Color Black or Other as Per Required Conductor Annealed Copper Wire Neutral Conductor Annealed Copper Wire Core 1,2.3 Transport Package Drum, Coil or According to Customers′ Request Specification 2x8awg 3x10awg Trademark Yifang Cable Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 1000km Per MonthProduct Description
2X8AWG 2X10AWG 3X8AWG 3X6AWG Electric Copper Concentric Cable1.Application
The concentric cable is used in electric service entrance from the power distribution network to the meter pannel(especially where it is required to prevent electricity theft), and as feeder cable from the meter pannel to the distribution pannel.
This cable an be used in dry and wet places, outdoors or directly buried.It has a maximum operating temperature of 90ºC and rated voltage of 600V&below.
1.Standards
ASTM, IEC, BS, DIN, CSA, NFC, and so on.

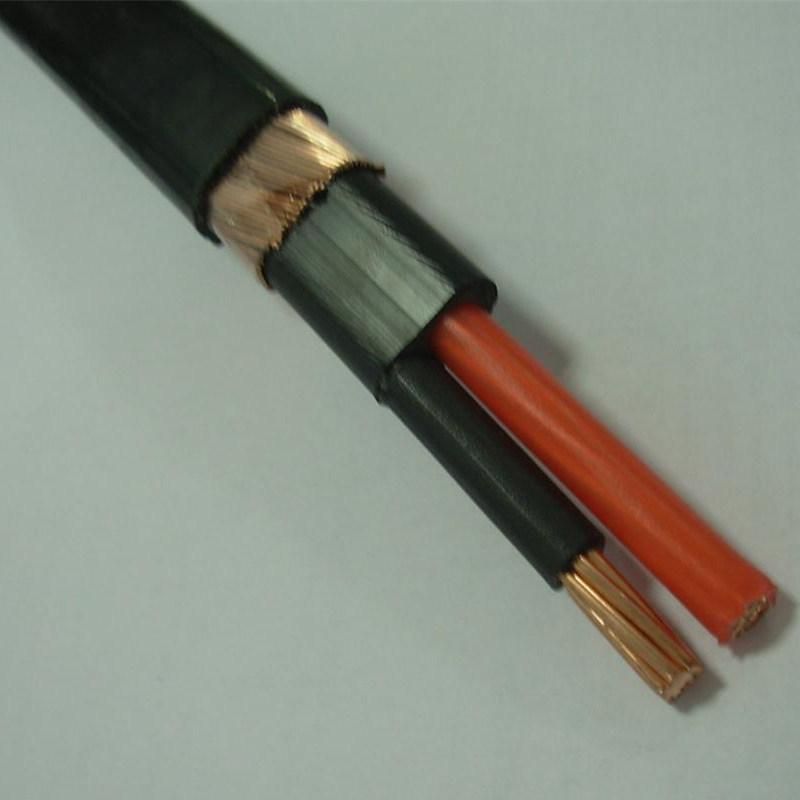

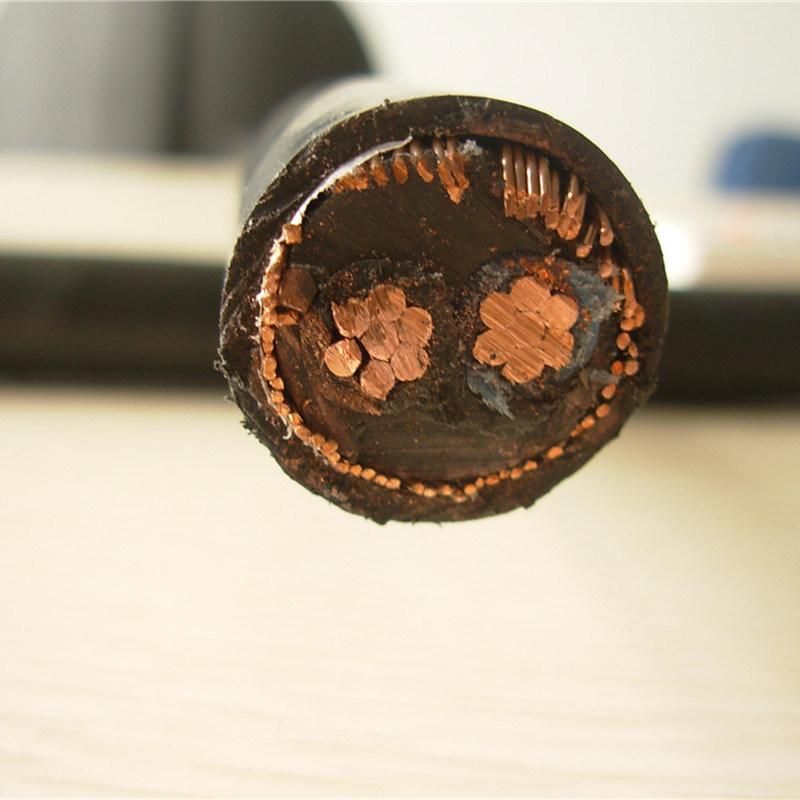

3.Construction
1).Solid or stranded copper/aluminum conductor
2).Insulation with XLPE, PE, or PVC
3).For cables of two-phase or three-phase conductors, round or flat shape available
4).PVC inner covering
5).Concentric layer of helically layed copper/aluminum wires
6).Wrapping tape
7).Black XLPE, PE, or PVC jacket
4.Available Size
2*8AWG, 2*6 AWG, 2*4AWG, 2*2AWG, 2*1/0AWG, 2*2/0AWG,
3*8AWG, 3*6AWG, 3*4AWG, 3*2AWG, 3*1/0AWG, 3*2/0AWG,
4*8AWG, 4*6AWG, 4*4AWG,4*2AWG and so on
5.Voltage
600/1000V
6.Bending Radius
Single core:20D+0.05,multi-core:15D+0.05

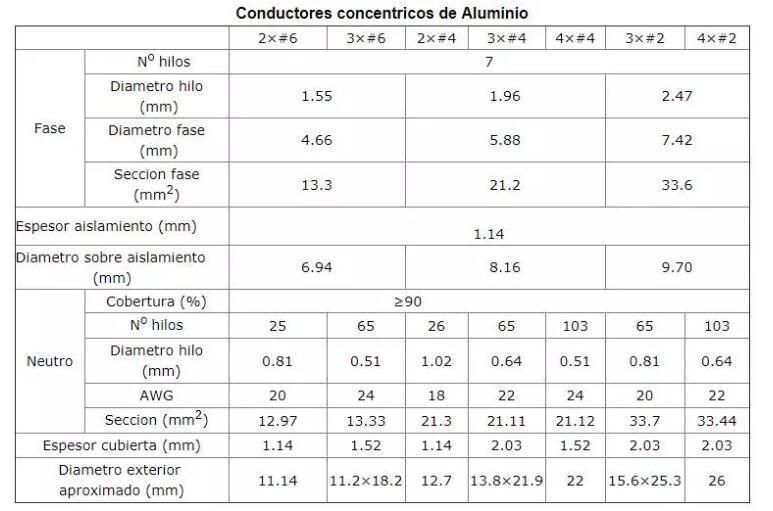

7. Technical Parameters:
