• Model NO.：Type241.1
• Wire Core Material：Tinned Wire
• Certification：ISO, CCC, CE
• Model：Type 241.1
• Brand：Yifang
• Standard：AS,NZS 1802
• Transport Package：Steel Drums
• Specification：3C120+3C14.8+1.25mm2
• Trademark：Yifang
• Origin：China
• HS Code：854449
• Production Capacity：10000m Per Month

Standards:AS/NZS 1802:2003, AS/NZS 1125,  and  AS/NZS 3808

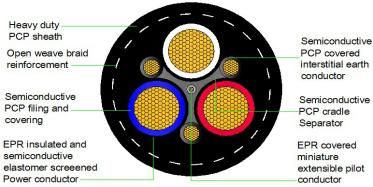

Technical dataItemsUnitsDataDimension.  Power conductorNominal conductor areamm2120Strand sizeNo./mm336/0.67Nominal conductor diametermm15.3EPR insulation thicknessEPRmm2.1Nominal diameter over insulationmm19.6Thickness of SC elastomer insulation screenSCmm1.0Nominal diameter over insulationmm20.6Earth conductorsNominal conductor areamm214.8Strand sizeNo./mm42/0.67Thickness of SC PCP coveringSC PCmm1.2Pilot conductorNominal conductor areamm21.25Strand sizeNo./mm40/0.2Thickness of EPR insulationEPRmm0.8SeparatorType of Separator CradleMaterial of Cradle separator SC PCPSheathThickness of  SC PCP layermm2.5Thickness including SC PCP layermm6.3CableNominal overall diametermm62.7Approx masskg/100m710Electrical and Mechanical particulars.  Maximum continuous conductor temperature°C90Minimum continuous conductor temperature°C-25Max. DC resistance of power conductor at 20°COhm/km0.164Max. AC resistance of power conductor at 90°COhm/km0.209Nominal 3-phase voltage dropmV/A.m0.4Nominal reactanceOhm/km0.092Continuous current carrying capacityProtected from sunA295Exposed to sunA210
