• Model NO.：VV Serie
• Wire Core Material：Bare Copper Wire
• Certification：CCC, CE, RoHS, UL, VDE
• Model：YC
• Brand：Feiya
• OEM：Yes

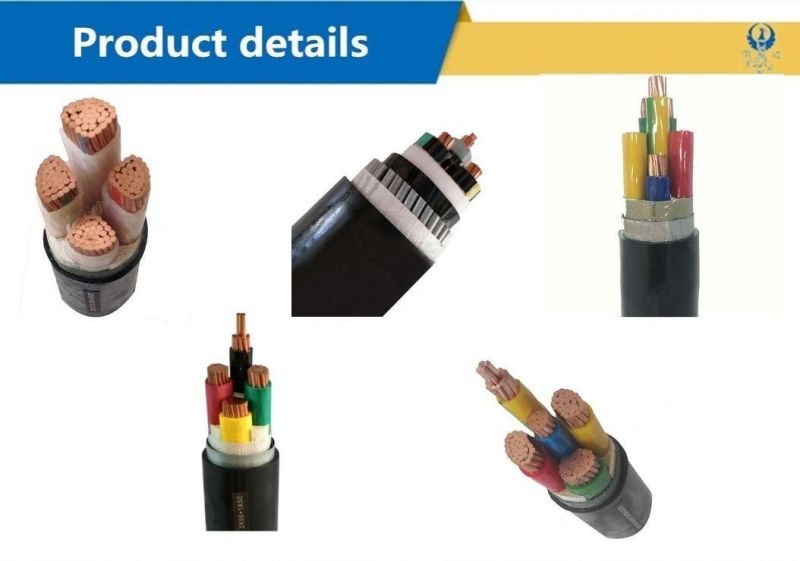

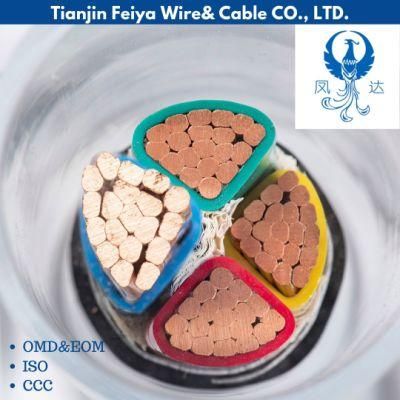

• Product Name：Rubber Insulated Power Cable
• Number of Cores：Single Core Multi-Core
• Sheath Color：Black
• Transport Package：Wooden Box Packing or Pallet Shipping Containers
• Specification：copper
• Trademark：Feiya
• Origin：China
• HS Code：8544492100
• Production Capacity：80000 Meter,Meters Per Month

ELECTRICAL CHARACTERISTICS

• Operating Voltage, Uo/U :   0.6/1KV
• Operating Temperature : -15'C to 90'C
• Final Short Circuit Temperature : 250′ C
• Test Voltage : 3.5kV for 5 minutes
• Current Carrying Capacity
  1.  Clipped Direct (Ref Method C)
     • One 3 or 4-Core Cable, 3-Phase A.C : 73A
  2. In free air or on a perforated cable tray etc,  horizontal or vertical (Ref method E)
     • One 3 or 4-Core Cable, 3-Phase A.C : 78A
  3. Direct in Ground or in ducting in ground, in or around building (Ref method D)
     • One 3 or 4-Core Cable, 3-Phase A.C : 58A

REFERENCE STANDARD

• Design Specification: IEC60502-1
• Conductor: IEC60228, BS EN60228
• Flame Retardancy: IEC60332-1, BS EN60332-1

INSTALLATION REFERENCE

• Minimum Bending Radius(mm): 8 x cable overall diameter
• Max. Pulling Tension (N/mm2) : 70
