H07z1-U / H07z1-R / H07z1-K Fire Resistant Wire Flame Retardant Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Special Synthetic
- Material Shape：Round Wire
- Wire Core Material：Bare Copper Wire
Base Info
- Model NO.：H07Z1-U , H07Z1-R , H07Z1-K
- Certification：CCC, CE, RoHS, UL, VDE
- Model：YC
- Brand：Feiya
- OEM：Yes
- Product Name：Rubber Insulated Power Cable
- Number of Cores：Single Core Multi-Core
- Sheath Color：Black
- Advantage：21 Years Production Experience
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：copper
- Trademark：Feiya
- Origin：China
- HS Code：8544492100
- Production Capacity：80000 Meter,Meters Per Month
Description
Basic Info.
Model NO. H07Z1-U / H07Z1-R / H07Z1-K Certification CCC, CE, RoHS, UL, VDE Model YC Brand Feiya OEM Yes Product Name Rubber Insulated Power Cable Number of Cores Single Core Multi-Core Sheath Color Black Advantage 21 Years Production Experience Transport Package Wooden Box Packing or Pallet Shipping Containers Specification copper Trademark Feiya Origin China HS Code 8544492100 Production Capacity 80000 Meter/Meters Per MonthProduct Description

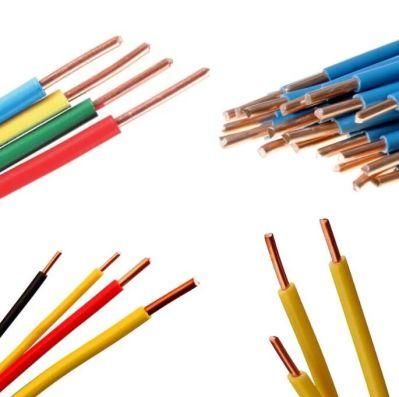

H07Z1-U / H07Z1-R / H07Z1-K
Construction
Flame retardant, halogen free energy cables with solid, stranded or fine-stranded copper conductor and special synthetic insulation.
Technical Data
- These cables are produced based on TS EN 50525-3-31
- Permissible operating temperature: 70 ºC
- Tested according to below standards:
- LS (Low Smoke) Test: IEC 61034-1/2
- Droplet Test: IEC 60332-1-3
- HF (Halogen Free) Test: IEC 60754-1/2
- FR (Flame Retardant) Test: IEC 60332-1-2
- FR (Flame Retardant) Test: IEC 60332-3-24 Cat.C
- CPR (Construction Products Regulation) Test: EN 50399
Applications
Used in dry places, switchgear rooms, distribution boards, industrial plants as lighting and building wire.
| AWG | Section(mm2) | External Diameter(mm) | Nominal Copper Weight (kg/km) | Cable Weight (kg/km) |
| 20 | 1 x 0.5 | 2.1 | 4.8 | 9 |
| 18 | 1 x 0.75 | 2.2 | 7.2 | 11 |
| 17 | 1 x 1 | 2.4 | 9.6 | 14 |
| 16 | 1 x 1.5 | 2.9 | 14.4 | 21 |
| 14 | 1 x 2.5 | 3.5 | 24 | 33 |
| 12 | 1 x 4 | 3.9 | 38 | 49 |
| 10 | 1 x 6 | 4.5 | 58 | 69 |
| 8 | 1 x 10 | 5.7 | 96 | 115 |
FAQ
Q1:Are you a trading company or manufacturer?
A1: Tianjin Feiya wire & Cable CO., LTD. is a professional manufacturer.
Q2: What kinds of products does Tianjin Feiya wire & Cable CO., LTD. manufacture?
A2: Our products mainly cover low, medium and high voltage (KV) crosslinked polyethylene insulated power cable,PVC insulated power cable, PVC insulated wire (construction cable), control cable, signal cable, rubber cable,coal mine cable, welding cable, ship cable and other related customized cables. These cables are used in Power metallurgy, Oil&Chemical Industry, Nation Defense Power Station, Mine, Port and Architectural Engineering, andother fields.
Q3:Which standards do you comply with when you produce the electrical wires and cables ?
A3: We have passed ISO9001:2000 and ISO140001:2004. All products conform to GB, IEC, BS, ASTM, VDE JB and UL standards. Besides, we have the ability to design and produce various wires and cables, and customize them for you according to the special requirements of customers (providing OEM services).
Q4: What is your MOQ?
A4: It`s base on the cable type or wire type. Please contact Calder. He will let you know.
Q5:How much the Courier freight will be for the samples?
A5:Courier freight depends on the quantity,weight and carton size and your area.
