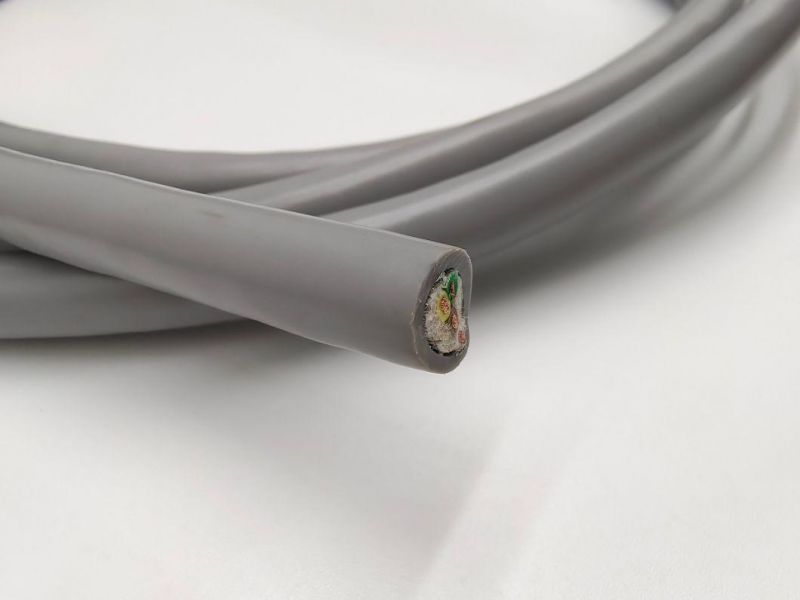

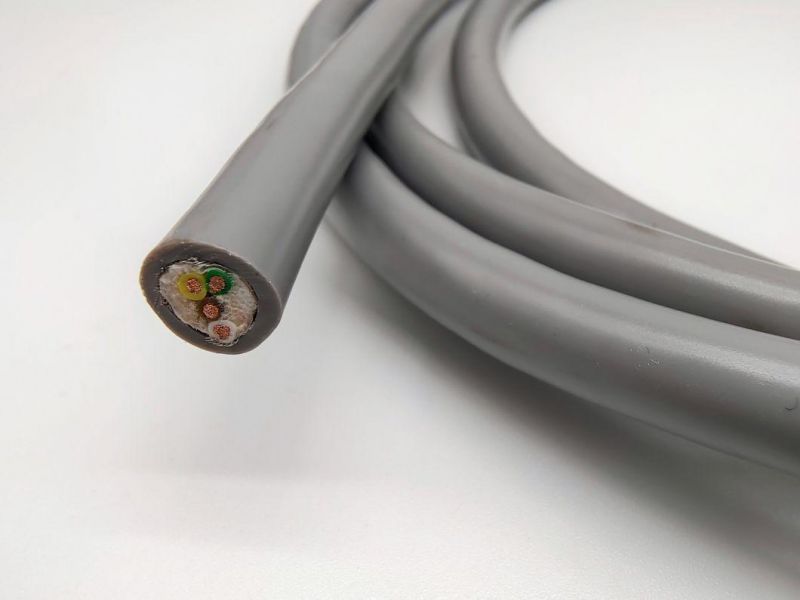

Highly Flexible Oz-Bl-Cy PVC Control Cable Electrical Wires 4X1.5mm2 41X0.75mm2

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：OZ-BL-CY
  • Range of Application：Cold-Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemOZ-BL-CY PVC Control Cable Electrical Wires 4x1.5mm2 41x0.75mm2ConductorCopper wire bareInsulationPVCWrappingFoilScreenBraided screen of tinned copper wires, approx. coverage 85%Outer SheathPVCNominal VoltageAC U0/U 300/500 VTemperature RangeFlexible -10°C to +80°C
Fixed -40°C to +80°CColorOptionalCertificationCEApplicationUsed for flexible applications involving medium mechanical stress with free movement, without tensile stress and without forced motion control. For explosion-endangered areas marked as intrinsically safe flexible control or measurement cable for intrinsically safe systems in measurement and control technology. These systems are not earthed and have a separate power circuit. These cables are not suitable for burial in the ground. The screening guarantees an exact data transmission.
