• Model NO.：NYY
• Model：Nyy
• Brand：Yifang
• Name：Control Cable
• Transport Package：Drum, Reel or According to Customer′s Request
• Specification：IEC, BS, NFC, ASTM, DIN, etc
• Trademark：Yifang
• Origin：Zhengzhou, Henan, China
• HS Code：8544492100
• Production Capacity：500, 000kilometers Per Month

Basic Info.

Model NO. NYY Model Nyy Brand Yifang Name Control Cable Transport Package Drum, Reel or According to Customer′s Request Specification IEC, BS, NFC, ASTM, DIN, etc Trademark Yifang Origin Zhengzhou, Henan, China HS Code 8544492100 Production Capacity 500, 000kilometers Per Month

Product Description

Control cable is suitable for the interconnection in controlling, signalling and measuring systems with 450/750KV.

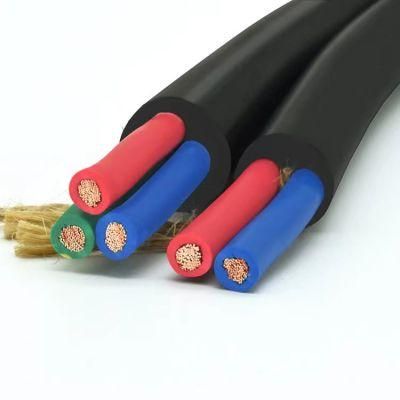

Control Cable 450/750V~0.6/1kV Cable, Flame-retardant copper conductor PVC insulated and sheath steel tape armoured

1. Standard
The control cable can be produced according to the standard GB9330-1988, IEC60227(60502, 60332), DIN, BS, and our factory can also manufacture the cables in accordance with other standards.

2. Scope of Application
Flame-retardant control cable is suitable for connecting wires between electric equipments with a special flame-retardant requirement in controlling, monitoring loop and protecting circuit at rated voltage up to 600/1000V(A. C. ). Our flame-retardant control cable includes A class flame-retardant control cable, special flame-retardant control cable, low smoke halogen free flame-retardant control cable, low smoke low halogen flame-retardant control cable, XLPE insulated control cable and XLPE insulated flame-retardant control cable.

3. Service Conditions
(1) The long-time working temperature of conductor of PVC insulated cable is 70oC
The long-time working temperature of conductor of XLPE insulated cable is 90oC
(2) The temperature for laying the cables can not be lower than 0oC. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

1. Rated voltage Uo/U should be 450/750V.
2. The permitted long-term operating temperate of cable conductor should be 70.
3. The installing temperature of cable should not be lell than 0. Recommending permitted bending radius:
Non-armored cable: Not less than the overall diameter of cable by 6 times.
Armored or copper tape shield cable, no less than the overall diameter of cable by 12 times.
Shielded flexible cable, no less than the overall diameter of cable by 6 times.
