• Model NO.：YJSV
• Brand：Yifang
• Color of Insulation：Black or as Your Request
• Transport Package：Drum Circles or According to U Request
• Specification：IEC, BS, DIN, ASTM, JIS, GOST, etc
• Trademark：YIFANG CABLE
• Origin：Zhengzhou, China
• HS Code：8544492100
• Production Capacity：100, 000kilometers Per Month

Basic Info.

Model NO. YJSV Brand Yifang Color of Insulation Black or as Your Request Transport Package Drum Circles or According to U Request Specification IEC, BS, DIN, ASTM, JIS, GOST, etc Trademark YIFANG CABLE Origin Zhengzhou, China HS Code 8544492100 Production Capacity 100, 000kilometers Per Month

Product Description

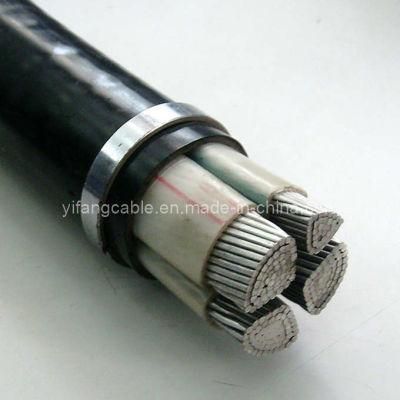

Aluminum concentric cable

1. Application
    The cable are for the service-entrance.
2. Construction
    Rated Voltage: 600/1000V
    Conductor: Solid or standed Al conductor
    Insulation: XLPE, PVC, PE
    Neutral conductor: Helically Al wire with coverage 100% and non-100% coverage
    External coverage: Weather resistant material, XLPE, PVC, PE


Copper concentric cable

    Service Entrance Cable, Type SE, In flat and In round cable, 600V
    Concentric conductor with 100% and non 100% coverage
    Indicidual Conductor Rated XHHW-2 or THW
    Jacket and Individual Conductor Sunlight Resistant

1. Appliction
    These requiremnets cover Type USE and USE-2 (below-ground) and Type SE (above-ground) power cable for installation in accordance with Article 338 and other applicable parts of the National Electrical Code (NEC). These cables are for the service-entrance and other (NEC) uses described in 1.4 1.8. In a multiple-conductor cable that is other than submersible-pump cable and does not have a grounding conductor it is appropriate to have one circuit conductor without insulation. It is also appropriate for a sunmersibe pump cable to have a grounding conductor and for Type USE and USE-2 cables to have an insulated grounding conductor. Each insulated conductor in these cables is rated for 600V. Type USE cable has thermose insulation, except for HDPE portion of HDPE-over-XLPE insulation where used for single-conductor Type USE cable. Type USE cable has thermoset or thermoplatic insulation.

2. Specification
    Type SE cable meets or exceeds UL Standard 44 for XHHW-2 conductors or UL 83 for THW conductors, UL Standard 854.

3. Construction
    Type SE cable is constructed with sunlight resistant Type XHHW-2 conductor or Type THW conductors. Copper conductors are annealed (soft) copper. Cable assembly plus reinforcement tape are jacketed with sunlight resistant thermoset or thermoplastic material, available as 1 conductor with a concetric ground, 2 conductor with a round and flat or concentric round, or 3 conductor with a bare ground. SE cable is jacketed with gray sunlight resistant thermoset or thermoplastic material.

4. Type
    Single core type round with full neutral entrance cable
    Single core type round with less neutral entrance cable
    Single core type round with full neutral and communication cores entrance cable
    Two core type Flat with full neutral entrance cable
    Two core type round with full neutral entrance cable
    Three core type round with full neutral and communication cores entrance cable
    Three core type round with less neutral entrance cable

We can design and produce according to client's requiremnet.
