• Model NO.：Cable VCT
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：Cable Vct
• Brand：Hongda
• Operating Temperature：70 °c
• Short Circuit Temperature：160 °c
• Transport Package：Export Wooden Drum
• Specification：1.5mm2 to 300mm2
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：20 Km,Day

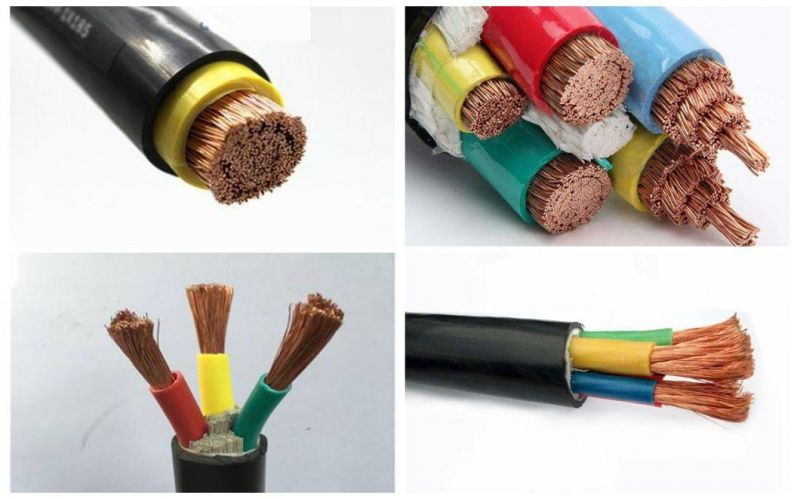

Construction:
Conductor : Bunch stranded annealed copper
Insulation : Polyvinyl chloride (PVC)
Color : Light blue, Brown, Black, Grey
Sheath : Polyvinyl chloride (PVC) BlackReference Standard: TIS 11 Part 101-2553Classification: Maximum conductor temperature : 70°C Rated voltage : 450/750 V AC test voltage : 2,500 V Application: Use for general purposes. Use for connecting electrical appliances

Nominal cross sectional area	Dia. Of wires	Approx. Diameter	Insulation thickness nominal	Thickness of outer sheath	Overall diameter	Insulation resistance at 70ºC	continuous current rating maximum	Cable Weight Approx.	Standard length
mm2	Max.	mm	mm	mm	mm	MΩ.km (min.)	Free air at 40ºC	kg/km	m
4	0.31	2.59	0.9	1.8	17	0.0084	26	380	100/C
6	0.31	3.6	0.9	2	19.5	0.0071	34	540	100/C
10	0.41	4.79	1.1	2.2	24	0.0068	47	860	500/D
16	0.41	5.88	1.1	2.6	28	0.005	63	1220	500/D
25	0.41	7.32	1.3	2.8	33	0.0048	83	1800	500/D
35	0.41	8.61	1.3	3.1	37	0.0041	102	2380	500/D

(C = Packing Coil; D = Packing in drum)




Electrical Data

*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.
