• Model NO.：3c+3e cable
• Certification：ISO, CCC, CE
• Model：Zr-Bpyjvp
• Armor：Non
• Conductor Material：Copper
• Standard：IEC60502
• Quality Guarantee：Ten Years
• Core：Multi Cores
• Insulated Color：Red, Yellow, Blue, Green
• Sheath Color：Black
• Sample：Yes
• Manufacture：Yes
• Transport Package：Wooden Drum
• Specification：ZR-BPYJVP 0.6,1kv cable
• Trademark：Hongda
• Origin：China, Henan
• HS Code：8544492100
• Production Capacity：3000km,Per Months

Type

Designation

BPYJVP

XLPE insulated PVC sheathed woven copper wire shield converter used main circuit cable

BPYJVP1

XLPE insulated PVC sheathed copper wire wind shield converter used main circuit cable

BPYJVP1-2

XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield converter used main circuit cable

BPYJVP3

XLPE insulated PVC sheathed Al/plastic compound tape shield converter used main circuit cable

ZR-BPYJVP

XLPE insulated PVC sheathed woven copper wire shield flame-retardant converter used main circuit cable

ZR-BPYJVP1

XLPE insulated PVC sheathed copper wire wind shield flame-retardant converter used main circuit cable

ZR-BPYJVP1-2

XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield flame-retardant converter used main circuit cable

ZR-BPYJVP3

XLPE insulated PVC sheathed Al/plastic compound tape shield flame-retardant converter used main circuit cable

WDZ-BPYJYP

XLPE insulated PO sheathed woven copper wire shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP2

XLPE insulated PO sheathed copper tape shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP1

XLPE insulated PO sheathed copper wire wind shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP1-2

XLPE insulated PO sheathed copper wire wind copper tape wrapped double shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP3

XLPE insulated PO sheathed Al/plastic compound tape shield low-smoke halogen-free flame-retardant converter used main circuit cable

Configuration

Conductor: plain annealed copper (class 2 strands) of the type specified in AS/NZS 1125.

Insulation: polyvinylchloride compound PVC V90.

Laying-up: cores are laid up together with a right-hand direction of lay, with non-hygroscopic filler where necessary to form a substantially compact and circularcross-section core assembly.

Bedding: flame retardant polyvinylchloride compound PVC V90

Screen: plain annealed copper tape with 100% coverage

Sheath: the laid-up core is sheathed with a continuous flame retardant polyvinylchloride compound PVC V90 to AS/NZS 3808.

Core identification

Core: Active core: Red, White, and Blue

Earth core: Green/Yellow Sheath colour:

Standard - Orange Optional - Black (Ultraviolet radiation stabilised)

Technical data

Rated voltage: 0.6 / 1 kV

Test voltage: 2500V rms between conductors, between conductors and screen 6000V rms spark test Conductor operating temp: -25o C ~ 90o C, short circuit: 160o C for 5 sec

Minimum ambient temp: 0o C, after installation and only when cable is in a fixed position

Minimum bending radius: 18 x cable O.D during installation 12 x cable O.D after installation

BPYJVP 0.6/1KV power cable
Product Description for frequency variation BPYJVP 0.6/1KV power cable

Name: BPYJVP12R, ZR-BPYJVP12R,BPYJVPX13R, ZRBPYJVPX13R meets the requirements of soft stranded copper conductor of category 5 stipulated in GB/T3956-1997 standard.

Insulation;XLPE insulation, good performance of weather resistance and humidity resistance.

Low transmission impedance; good performance of electromagnetic compatibility

Low working capacitance

Good performance of interference resistance and low radiation

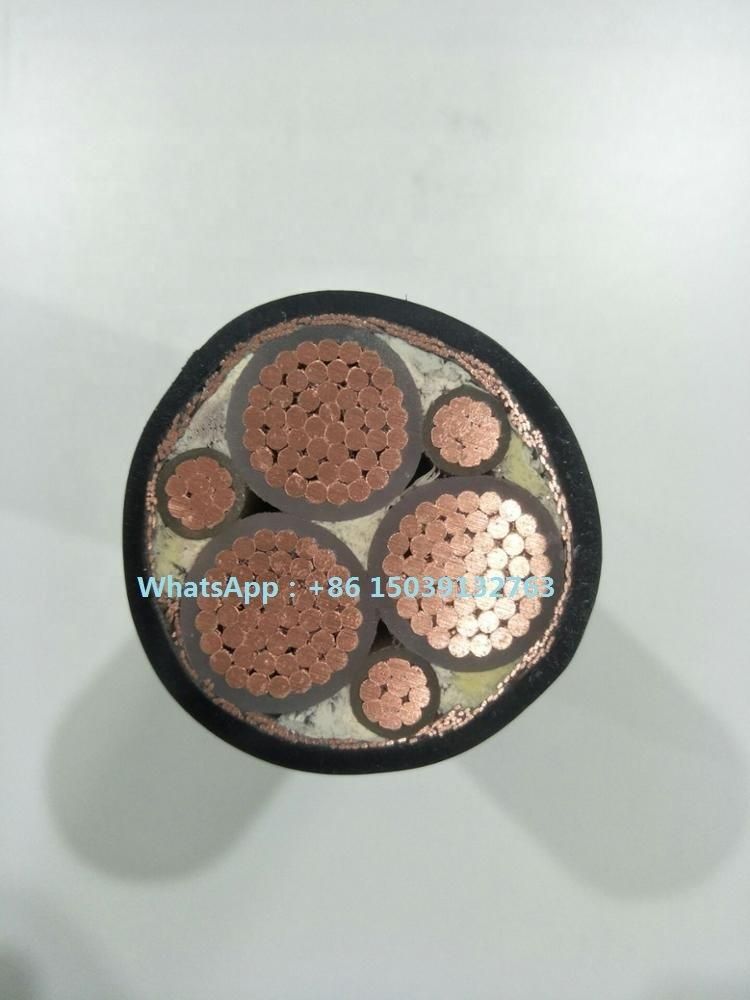

Core:Symmetrical structure design for cable with 3 cores, which has better transmission performance compared with cable with 4 cores.

Working Condition for frequency variation BPYJVP 0.6/1KV power cable

1: Rated voltage U0/U: 0.6/1kV

2: Max temperature of cable conductor for Longterm working is 90ºC. Max. working temperature of cable conductor is 250ºC during short circuit (the longest lasting

time shall be no more than 5 seconds).

3: Environment temperature for installing is no less than 0ºCand -10ºC for fixed installing.

4: Min bending radium allowed by cable is no less than 15D. (D means outer diameter of cable with unit  mm)

Application for frequency variation BPYJVP 0.6/1KV power cable

Frequency Converter cable is mainly used as the connection cable between frequency converter power supply and frequency converter motor. And it is also used to transmit power on distribution line of rated voltage 1kv or lower. It is specially used in the field of paper-making, metallurgy, textile mill, metalworking, mine, railway and packinghouse etc.

Types and Despription:

BPYJVP: XLPE insulated PVC sheathed woven copper wire shield converter used main circuit cable

BPYJVP1: XLPE insulated PVC sheathed copper wire wind shield converter used main circuit cable

BPYJVP1-2: XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield converter used main circuit cable

BPYJVP3:XLPE insulated PVC sheathed Al/plastic compound tape shield converter used main circuit cable

ZR-BPYJVP:XLPE insulated PVC sheathed woven copper wire shield flame-retardant converter used main circuit cable

ZR-BPYJVP1-2:XLPE insulated PVC sheathed copper wire wind copper tape wrapped double shield flame-retardant converter used main circuit cable

ZR-BPYJVP3:XLPE insulated PVC sheathed Al/plastic compound tape shield flame-retardant converter used main circuit cable

WDZ-BPYJYP;XLPE insulated PO sheathed woven copper wire shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP2;XLPE insulated PO sheathed copper tape shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP1; XLPE insulated PO sheathed copper wire wind shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP1-2;XLPE insulated PO sheathed copper wire wind copper tape wrapped double shield low-smoke halogen-free flame-retardant converter used main circuit cable

WDZ-BPYJYP3:XLPE insulated PO sheathed Al/plastic compound tape shield low-smoke halogen-free flame-retardant converter used main circuit cable

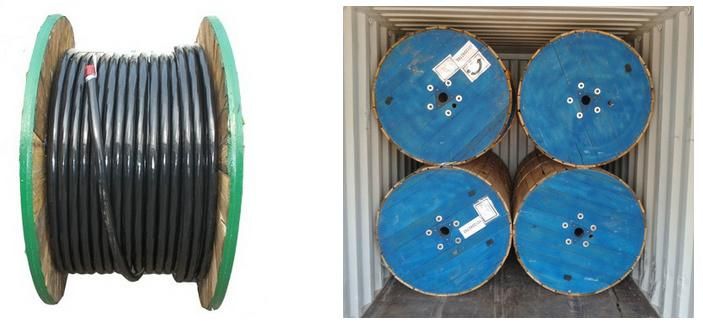

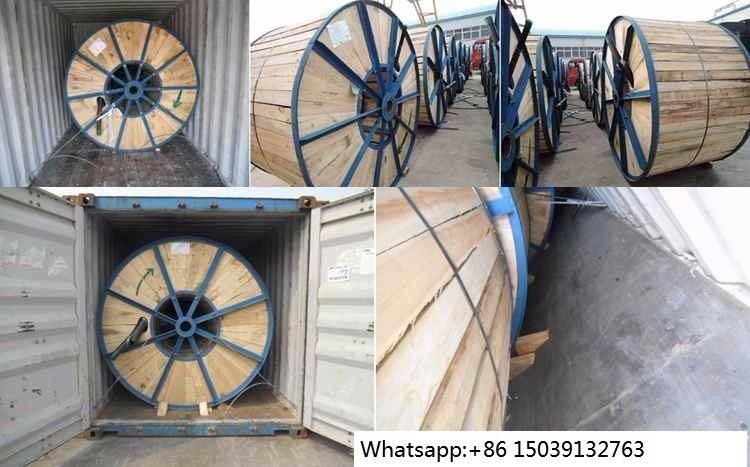

Packing

Standard Export package:

100m/roll,500m/roll,1000m/roll on the pallet or wooden drum

Delivery

Within -5-10 working Days once Order Confirmed

Port: QINGDAO or other ports as per your requireents.
Sea freight:FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency

^{7. Contact us}
Looking forward to cooperation with you.If you have any question or need our certification and sample.Pls contact me freely.You can talk with me by Email or chat software.TEL +86 15039132763
