Direct Buried Underground Anti-Crush Duct Optical Fiber Cable GYTY53
Ningbo Haishu Efon Communication Equipment Limited- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Other
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYTY53
- Core：2-288
- Certification：RoHS, UL, CE, ISO9001, VDE, CCC
- Brand：Efon
- Sheath Material：HDPE,LSZH Sheath,Flame Retardant Sheath,Anti-Roden
- Fiber Type：G652D, Om1 Om2 Om3 Om4 9,125 50,125 62.5,125
- Fiber Count：2-288 Cores
- Central Strength Member：Steel Wire,FRP
- Tube：Loose Tube Stranded,Sz Stranded
- Armored：Corrugated Steel Tape,Aluminium Tape
- Material of Jacket：HDPE,LSZH Sheath,Flame Retardant Sheath
- Bending Radius：Static 12.5*Cable-D Dynamic 25*Cable-D
- Applications：Direct Buried
- Temperature：-40°c~+70°c
- Certificate：ISO9001 Tlc RoHS

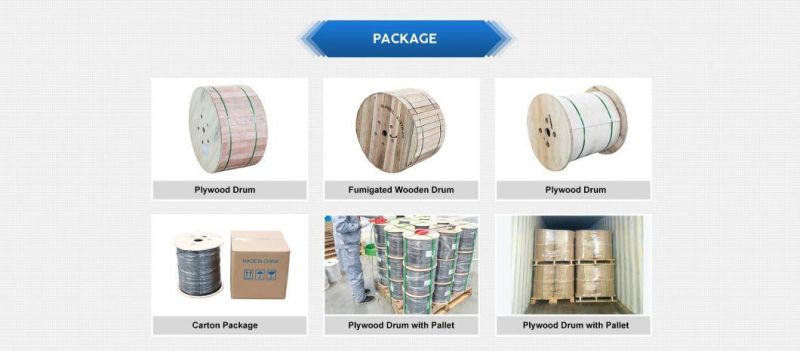

- Transport Package：Wooden Drum Iron-Wooden Drum with Fumigated or Not
- Specification：CE
- Trademark：OEM
- Origin：China
- HS Code：85447000
- Production Capacity：300km,Week
Description
Fiber CountNominal Diameter (mm) Nominal Weight (kg/km) Max Fibers per Tube No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm) Short Term Long Term Short Term Long Term 2 ~ 36 12.7 173 6 6 3000 1000 3000 1000 38 ~ 72 13.9 211 12 6 3000 1000 3000 1000 74 ~ 96 15.5 251 12 8 3000 1000 3000 1000 98 ~ 120 17.2 299 12 10 3000 1000 3000 1000 122 ~ 144 18.8 345 12 12 3000 1000 3000 1000 >144 Available upon customer's request
