• Model NO.：J type
• Material Shape：Round Wire
• Range of Application：Temperature Sensors
• Certification：ISO9001, CE, RoHS
• Brand：Ht Elite
• Types：K,J,E,N,T,R,S,B
• Standard：IEC584
• Temperature：0-300 Degree
• Samples：Available
• Packing：200m,Roll, 250m,Roll, 500, Roll
• Other Packing：Plastic Spool
• Production Time：10-15 Days
• Transport Package：in Roll
• Specification：AWG 24, 22, 20, 18, 16, 14, 12
• Trademark：no
• Origin：China
• HS Code：8544491900
• Production Capacity：80, 0000

Basic Info.

Model NO. J type Material Shape Round Wire Range of Application Temperature Sensors Certification ISO9001, CE, RoHS Brand Ht Elite Types K/J/E/N/T/R/S/B Standard IEC584 Temperature 0-300 Degree Samples Available Packing 200m/Roll, 250m/Roll, 500, Roll Other Packing Plastic Spool Production Time 10-15 Days Transport Package in Roll Specification AWG 24, 22, 20, 18, 16, 14, 12 Trademark no Origin China HS Code 8544491900 Production Capacity 80, 0000

Product Description

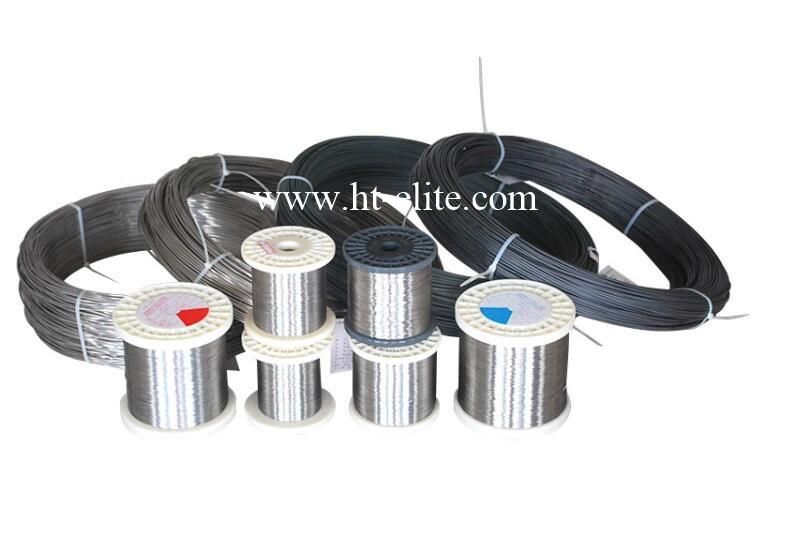

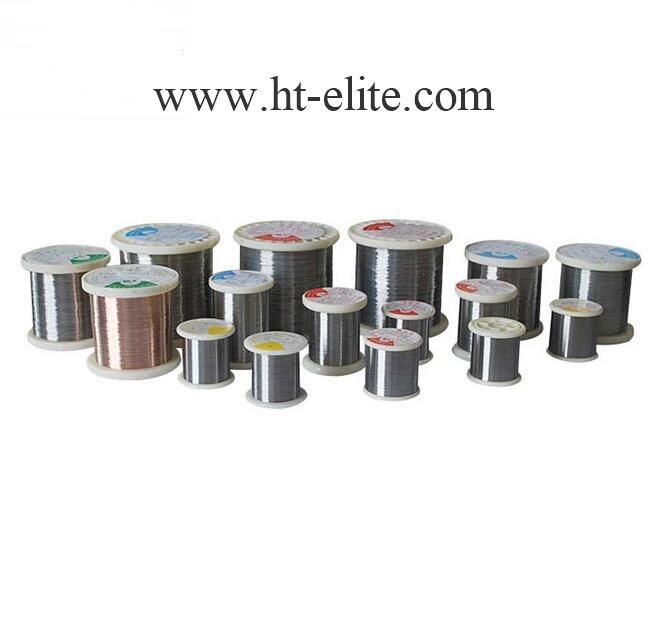

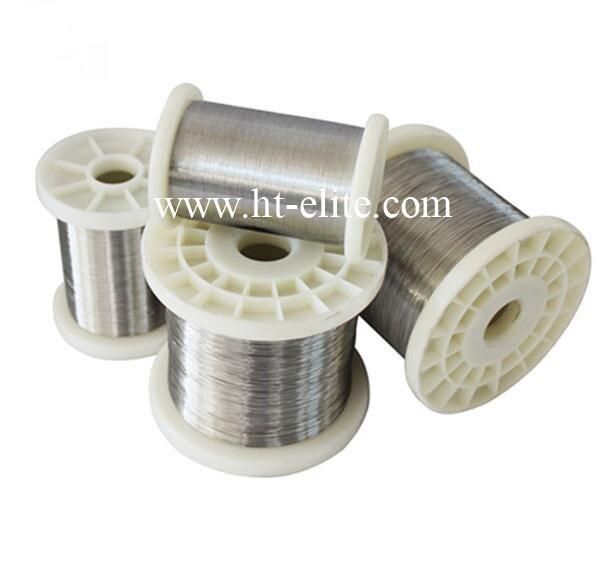

J type Thermocouple Bare Wire Constantan alloy



1. Thermocouple Wire Introduction:

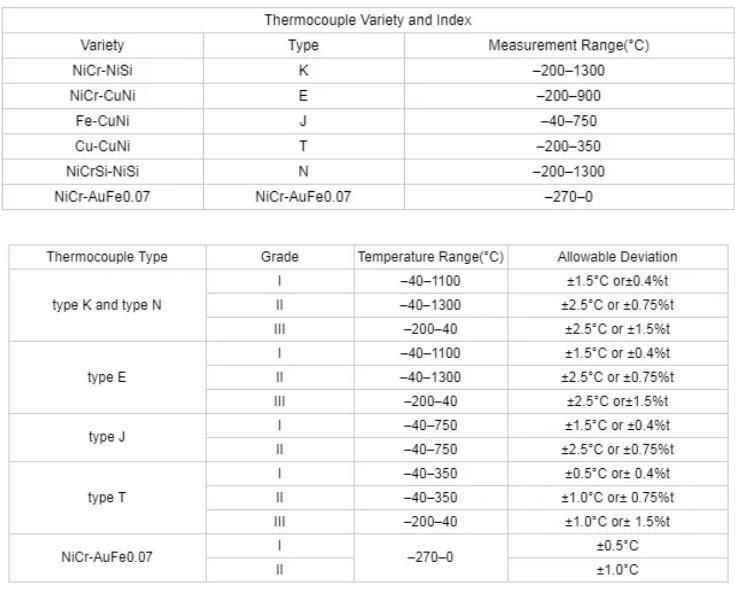

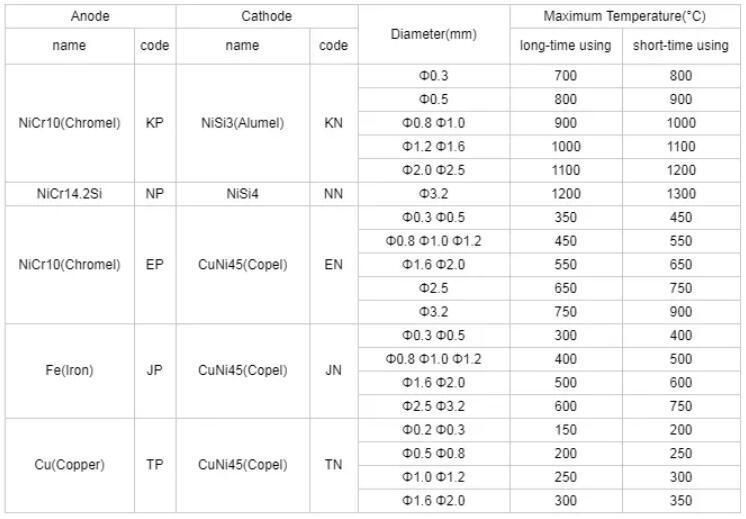

Thermocouple wire (Type K, N, E, J,T, S, B, R)

Thermocouples are widely used within industry as a method of measuring temperature.

Thermocouple Wire is the means to transfer the measurement from the source to the recording instruments. The principle of joining two different metals to create a voltage is the basis for all thermocouples and we manufacture the major Types and Grades to meet the wide range of applications from small measuring instruments to heavy chemical and power generation plants.

Standards

We manufactureType N, K, E, J and T in Thermocouple and Extension grades to Class 1 and 2 calibrations. Wires are manufactured to the appropriate part of BS EN 60584 - IEC 584. and to ANSI MC96. 1:1982. We can also comply with other standards and full calibration and EMF testing is performed at SGS laboratory with Certificates of Conformity supplied upon request.

Other product series :

FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.

NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.

CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.

Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.

Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.

Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.

Incoloy alloy: Incoloy 800,800H,800HT,825,925.

Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.

Monel Alloy: Monel 400,K500.

High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.

Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.

Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.
