• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC
• Model：YJV

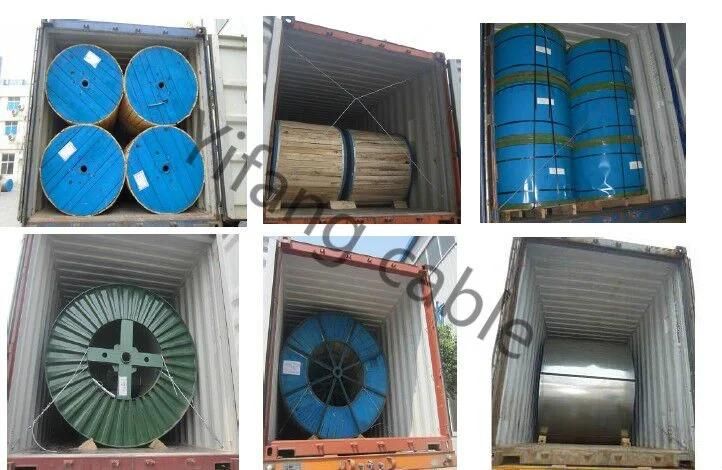

• Transport Package：Steel-Wooden Drum Packing
• Specification：90mm2 150mm2 185mm2 240mm2 300mm2
• Origin：China
• HS Code：8544601200

Basic Info.

Wire Core Material Bare Copper Wire Certification ISO, CCC Model YJV Transport Package Steel-Wooden Drum Packing Specification 90mm2 150mm2 185mm2 240mm2 300mm2 Origin China HS Code 8544601200

Product Description

 APPLICATIONS

• Predominantly used for primary underground distribution

• Suitable for use in wet or dry locations, direct burial, underground duct, and where exposed to sunlight

• To be used at 35,000 volts or less and at conductor temperatures not to exceed 90°C for normal operation

SPECIFICATIONS

35kV Primary UD Cable meets or exceeds the following ASTM specifications:

• B 230: Aluminum 1350-H19 Wire for Electrical Purposes

• B 231: Aluminum 1350 Conductors, Concentric-Lay-Stranded

• B 609: Aluminum 1350 Round Wire, Annealed and Intermediate Tempers, for Electrical Purposes

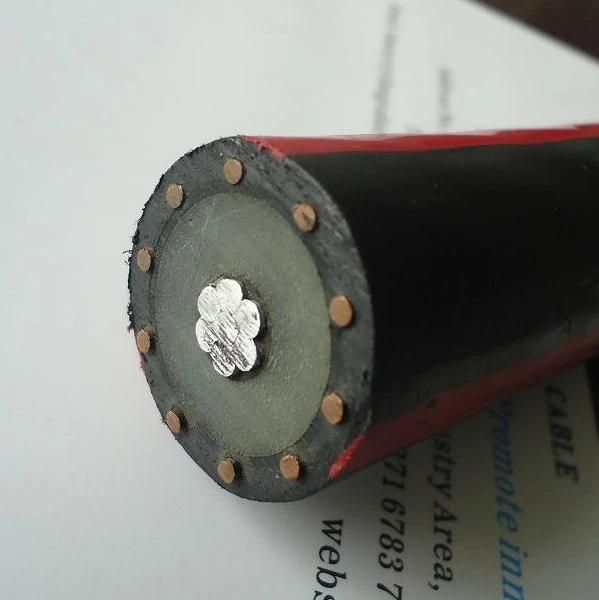

CONSTRUCTION

• The phase conductor is concentrically stranded, compressed soft copper or 1350-H16/26 aluminum alloy

• Cable is composed of the conductor with moisture block in the strands, covered by a semi-conducting cross-linked polyethylene strand shield, a tree-retardant cross-linked polyethylene primary insulation, and a semi-conducting cross-linked polyethylene insulation shield

• Conductors are available with either 100% or 133% insulation levels

• Concentric neutral of bare copper wires and an insulating polyethylene jacket is applied over the insulation shield

• Cable identified by surface print on the jacket and with the lightning bolt symbol for supply cables indented in the jacket



1.Aluminum conductor

2.XLPE insulation

3.PE jacket



STANDARD

• ANSI/ICEA S-94-649

• AEIC CS-8

• RUS U-1

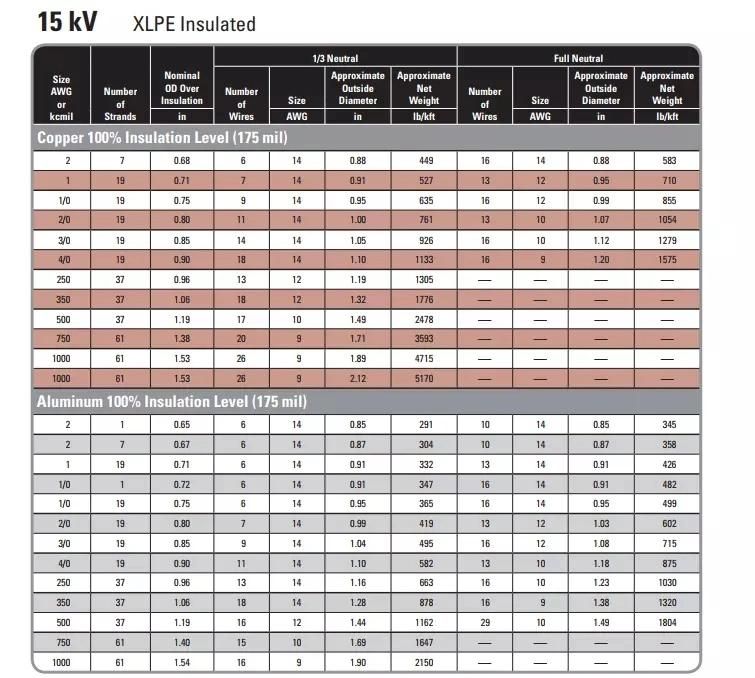

 PARAMETER
