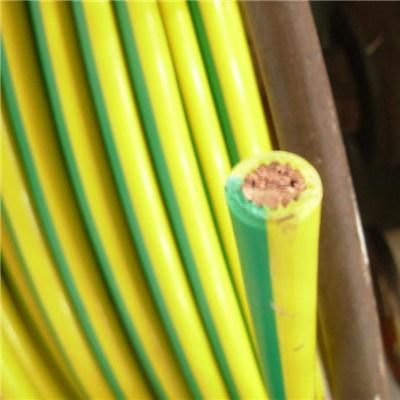

1cx35mm2 Cu/PVC Yellow/Green Earthing Cable 450/750V as Per IEC 60227
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：House Wire
- Conductor Material：Copper
- Sheath Material：N,a
- Insulation Material：PVC
Base Info
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CE, CCC
- Transport Package：in Roll
- Specification：1.5mm2 2.5mm2 4mm2 6mm2 10mm2
- Origin：China
- HS Code：8544601200
Description
Basic Info.
Material Shape Round Wire Range of Application LSOH Certification ISO9001, CE, CCC Transport Package in Roll Specification 1.5mm2 2.5mm2 4mm2 6mm2 10mm2 Origin China HS Code 8544601200Product Description
CONSTRUCTION
Conductor: Plain Annealed Copper, Class 2
Stranded Circular or Compacted
Insulation: Polyvinyl Chloride (PVC)
Compound Type C
Insulation Colour: Black, Green/Yellow, Red, Yellow,
Blue, White, Brown, Grey or Others
ELECTRICAL CHARACTERISTICS
Operating Voltage, Uo/U: 450/750V
Operating Temperature: -15ºC to 70ºC
Final Short Circuit Temperature: 160ºC for cable ≤ 300mm2
140ºC for cable >300mm2
Test Voltage: 1.5kV for 5 minutes
REFERENCE STANDARDS
Design Specification: SS358, BS EN50525-2-31, IEC60227
Conductor: IEC60228, BS EN60228
Flame Retardancy: IEC60332-1, BS EN60332-1
