N2xs2y Na2xs2y 6/10kv 18/30kv Medium Voltage Cable with XLPE Insulation

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Medium Voltage
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：N2XS2Y
  • Wire Core Material：Copper or Aluminum
  • Certification：ISO, CCC, CE, RoHS
  • Model：N2xs2y , Na2xs2y
  • Brand：Hongda
  • Armour：Steel Wire,Tape Armour,No
  • Conductor Material：Copper,Aluminum
  • Standard：IEC 60502-1
  • Quality Guarantee：Ten Years
  • Core：1core,Multicore
  • Insulated Color：as Your Requirement
  • Sheath Color：Black
  • Sample：Yes
  • Manufacture：Yes
  • Transport Package：Wooden Drum
  • Specification：single core power cable
  • Trademark：Hongda
  • Origin：China, Henan
  • HS Code：8544601200
  • Production Capacity：600km,Per Months

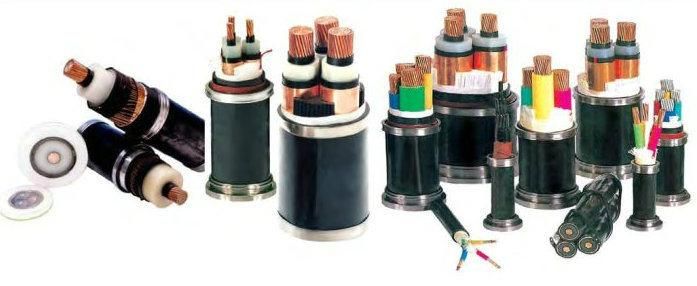

Description

1. ConductorCopper / Aluminum conductor2. Conductor screenInner semi-conducting layer3. InsulationXLPE insulation4. Insulation screenOuter semi-conducting layer5. TapeConductive tape6. Metallic shieldCopper wire screen and copper tape7. Non-conducting tape8. Outer sheathPE outer sheath
N(A)2XS2Y 6/10 kVN(A)2XS2Y 12/20 kVN(A)2XS2Y 18/30 kV 1 x 50 RM/1633381.350,01.100,01 x 70 RM/1635401.600,01.200,01 x 95 RM/1636411.900,01.350,01 x 120 RM/1638432.200,01.450,01 x 150 RM/2544442.550,01.700,01 x 185 RM/2556462.950,01.850,01 x 240 RM/2543483.500,02.050,01 x 300 RM/2546514.150,02.350,01 x 400 RM/3549545.150,02.800,01 x 500 RM/3552576.200,0 British Standard MV cablesVoltage RatingBS6622 - standard British MV cable6.35/11kV19/33kV BS7835 - LSZH British MV cable6.35/11kV19/33kV European standard MV cablesVoltage Rating N2XSY - single copper core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVN2XS2Y - single copper core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVNA2XSY - single aluminium core XLPE insulated with PVC oversheath6/10kV12/20kV18/30kVNA2XS2Y - single aluminium core XLPE insulated with PE oversheath6/10kV12/20kV18/30kVN2XSEY - 3 copper core XLPE insulated with PVC oversheath6/10kV  N2XS(F)2Y - single copper core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVN2XS(FL)2Y  - single copper core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV NA2XS(F)2Y - single aluminium core XLPE insulated with water blocking powder and PE oversheath6/10kV12/20kV18/30kVNA2XS(FL)2Y - single aluminium core XLPE insulated with water blocking powder and aluminium tape tightly bonded to PE sheath6/10kV12/20kV18/30kV

European MV cable type designation

NMV cable according to DIN VDE 0276AAluminium (Al) conductor[blank]Copper (Cu) conductor2XCross-linked polyethylene (XLPE) insulationSScreen of copper wires and copper tape, helically woundSEScreen of copper wires and copper tape over each individual core, helically woundYPolyvinyl Chloride (PVC) sheath2YPolyethylene (PE) sheath(F)2YLongitudinal water tightness with PE sheath(FL)2YLongitudinal and transversal water tightness with Al/PE sheath
Our MV cables are available in specific lengths as well as in extended long lengths to facilitate installation and to reduce the number of joints.

Custom designed medium voltage cables

In addition to standard medium voltage cables, we can design and supply bespoke MV cable products developed for your specific applications. Our custom designed cable solutions provide for variants developed and manufactured around a number of parameters, including:

Cross-sectional area: generally 35mm2 up to 100mm2
Number of cores: generally one or three
Solid or stranded aluminium conductors: for applications requiring a lighter cable weight, also often more economical due to lower aluminium prices.
Stranded copper conductors: for applications requiring a smaller overall diameter and higher transmitting properties.
Bedding
Bonded or strippable out semi-conducting layer
Water tightness: longitudinal, longitudinal + quasi-radial, longitudinal + radial
Insulation layers (conductor screen, insulation and insulation screen): XLPE, which is more commonly used for MV cables, or EPR which is more flexible and often better suited to marine and offshore applications.
Metallic screen: to nullify the electric field outside the MV cable. Concentric copper wire screens, Aluminium foil laminate, or extruded lead alloy sheath.
Twisted three-core cable or triplex
Armouring: for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.
Tapes: Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.
Outer Sheath: compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.

Medium Voltage cable testing

Some of the tests you would expect from a medium voltage cable manufacturer, and which are performed on our MV cables, include:

Routine tests: These non-destructive tests are normally carried out on all lengths manufactured.
- Conductor resistivity
- Spark test on oversheath
- Voltage tests on sheath
- D.C. voltage test on oversheath

Sample tests: These potentially destructive tests are normally carried out on every production run.
- Examination of conductor and dimensions
- Hot set test for XLPE insulation
- Insulation and oversheath thickness
- Four hour voltage test

Type tests: These destructive tests are normally carried out in addition to the above tests on commencement of a particular cable supply to validate its design.
- Electrical type tests including bending and heat cycle
- Non-electrical type tests including mechanical properties after ageing and tests under fire conditions. N2xs2y Na2xs2y 6/10kv 18/30kv Medium Voltage Cable with XLPE Insulation

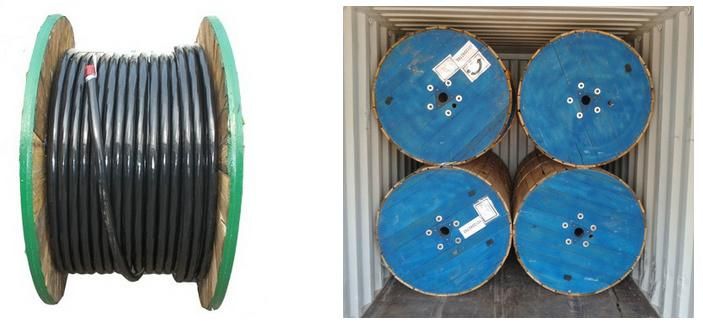

Packaging&Delivery.
