• Model NO.：LXS cable
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CCC
• Brand：OEM
• Transport Package：Wooden Drum
• Specification：2.5~400sqmm
• Trademark：OEM
• Origin：China(Mainland)
• HS Code：8544492100
• Production Capacity：500 Kilometer,Month

Basic Info.

Model NO. LXS cable Material Shape Round Wire Range of Application Overhead Certification ISO9001, CCC Brand OEM Transport Package Wooden Drum Specification 2.5~400sqmm Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 500 Kilometer/Month

Product Description

 Introduction

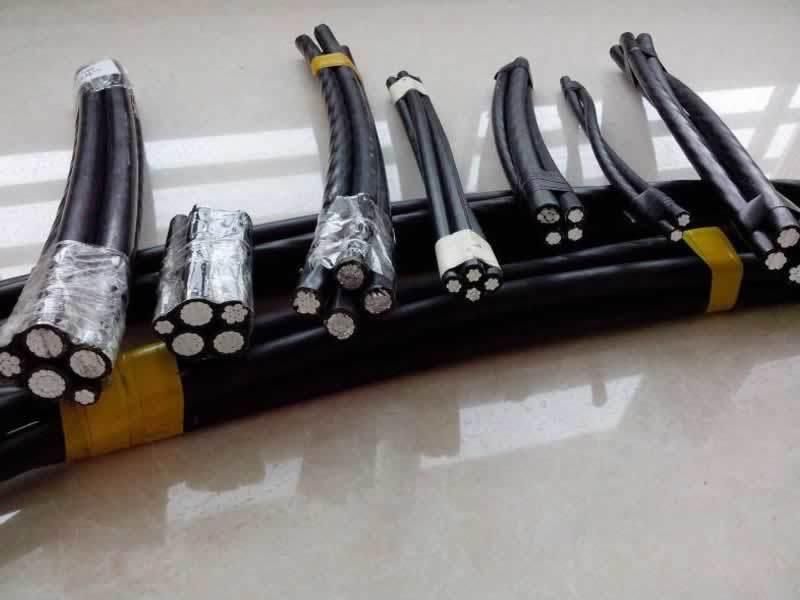

LXS Aluminium Overhead Aerial Cable Left-Hand Outer Layer Stranding Direction - Cable for overhead power distribution systems mainly for public distribution for rated voltage up to 0.6/1kV.
Type and Application

CONDUCTOR MATERIAL	Aluminium

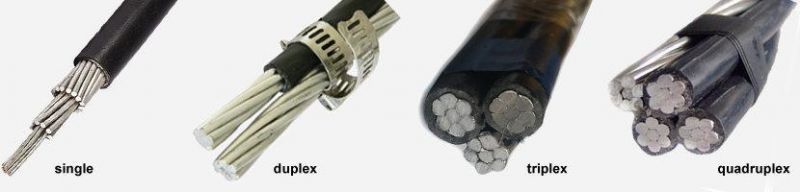

CONDUCTOR TYPES	Phase and Public Lighting
CONDUCTOR CLASS	Stranded Class 2
OUTER LAYER STRANDING	Direction: Left-hand
INSULATION MATERIAL	XLPE - Cross-linked Polyethylene
CORE ASSEMBLY	Cores are laid-up Helically
CABLE DESIGNATION	Al, XLPE
CONDUCTOR OPERATING TEMP	90°C
MAX SHORT-CIRCUIT TEMP	250°C
MAX PULLING STRENGTH [N]	30xConductor Cross-section [mm2] with sleeve over aluminium conductors
MIN BENDING RADIUS [MM]	18xCable Outer Diameter (mm)
COLOUR	Black
CABLE MARKING	Oversheath Marked



Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

If you have another question, pls feel free to contact us below
