Hwtm Systems Wrap on Pipelines Ice Melt Electric Heating Trace Cable

Wuhu Jiahong New Material Co., Ltd.
  • Supply Voltage：208~277V
  • Breaker Size：230V
  • Bus Wires：16AWG
  • Max. Exposure Temperature：85°c
  • Minimum Bend Radius：12mm
  • Transport Package：Innner Carton Master Carton

Base Info

  • Model NO.：HWTM
  • Trademark：jiahong
  • Origin：Anhui Wuhu
  • Production Capacity：17000PCS Per Day

Description

MODEL

HWTM-Y

HWTM-O

HWTM-R

Jacket color

Yellow

Orange

Red

Bus wires

16AWG

16AWG

16AWG

Maintance temperature

40ºC to 50ºC

40ºC to 50ºC

40ºC to 60ºC

Max. exposure temperature

85°C

85°C

85°C

Nominal power output

7 W/m at 45°C

9 W/m at 55°C

12 W/m at 70°C

Minimum bend radius

12mm

12mm

12mm

Supply voltage

208~277V

208~277V

208~277V



Maximum circuit length  HWTM-YHWTM-OHWTM-RBreaker size230V230V230V13A110m75m65m16A140m100m80m20A180m130m100m
Company Information

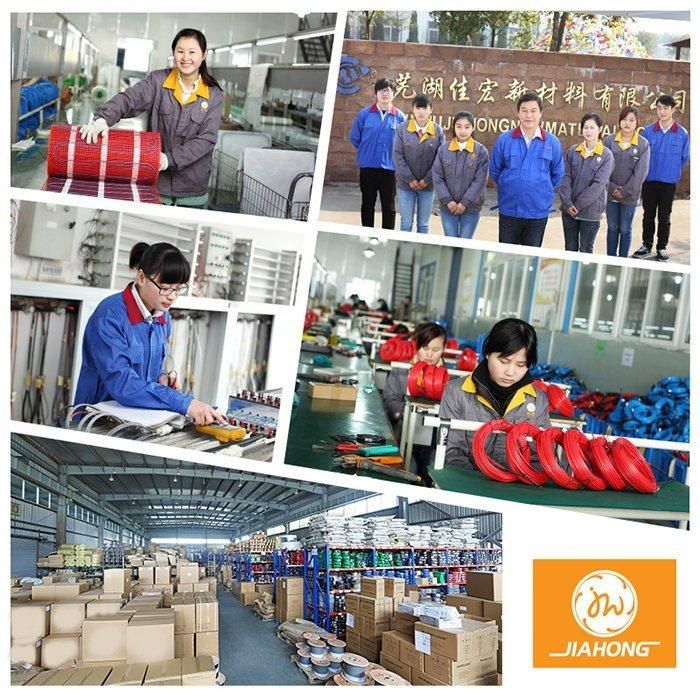

1.About Us
WuHu Jiahong New Material Co. Ltd is the largest heating cable manufacturer in Asia-pacific. We are always dedicated to research, develop and produce both constant wattage and self-regulating heating cables since 1993. Till now, Jiahong has obtained more than 30 national patents. We are one of the few members of China self-regulating heating cable national standard GB/T 19835-2005.
Most of WuHu Jiahong products passed UL, CSA, ETL, TUV, CE, ATEX etc. We export to many regions, especially North America, Europe, Australia and Asia. High quality combines with professional services earned us a good reputation.
Hwtm Systems Wrap on Pipelines Ice Melt Electric Heating Trace Cable

2. Why Choose us

Advantages
Hwtm Systems Wrap on Pipelines Ice Melt Electric Heating Trace Cable


Our Services

We help our customer develop heating cable, floor heating, snow melting for their application and OEM offered.

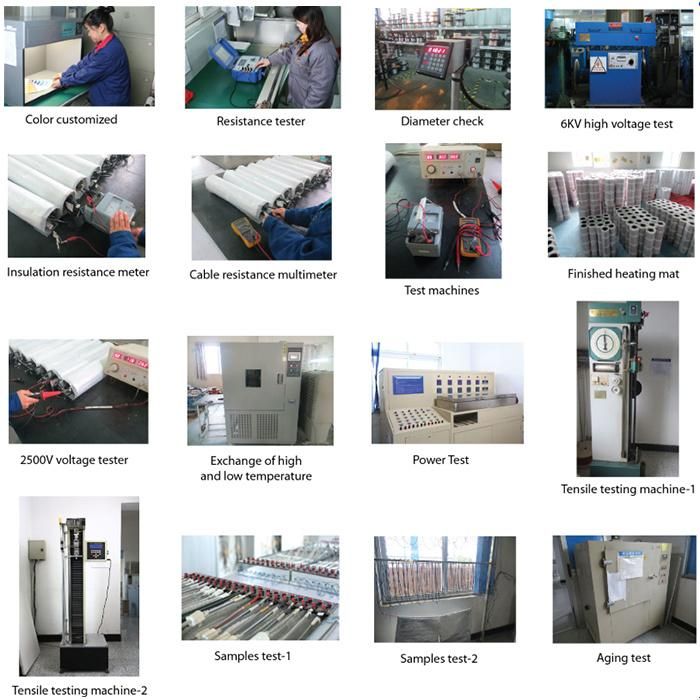

Quality control
Hwtm Systems Wrap on Pipelines Ice Melt Electric Heating Trace Cable
3. Company Certificates

Hwtm Systems Wrap on Pipelines Ice Melt Electric Heating Trace Cable

FAQ
1.How long will it take for the underfloor heating system to warm up?
The warm up time of an electric underfloor heating system will be dictated by the insulation used beneath it and the output of the system. In general, the better insulated the sub-floor the faster the system will warm up, with Underfloor Insulation boards?facilitating a very speedy warm up time of as little as 15 minutes, and un-insulated concrete floors causing the slowest warm up time. Using a?200W system?beneath ceramic/stone tiles provides a faster warm up time than 150W system.

2. Can I turn my heating on the day it is fitted?

If you have installed your heating beneath tile adhesive, levelling compound or a screed you must allow this to dry out before turning on your system for the first time. If the system is turned on too early it will force the moisture out of the covering which may lead it to crack. We would recommend speaking to the manufacturer of your flexible tile adhesive, grout or screed to confirm the drying time required.

3. Does each room require its own thermostat?
We would recommend that each room has its own heating system controlled by its own thermostat. This will allow for simpler and more accurate temperature control of each room and will avoid heating rooms which do not require it.
