• Model NO.：h07v-r
• Material Shape：Round Wire
• Range of Application：Power and Lighting Circuits and Building Wiring
• Certification：ISO9001, CCC, SGS
• Brand：Hongda
• Colour Required：Black, Red, Blue, Yellow, Green,Yellow, White, etc

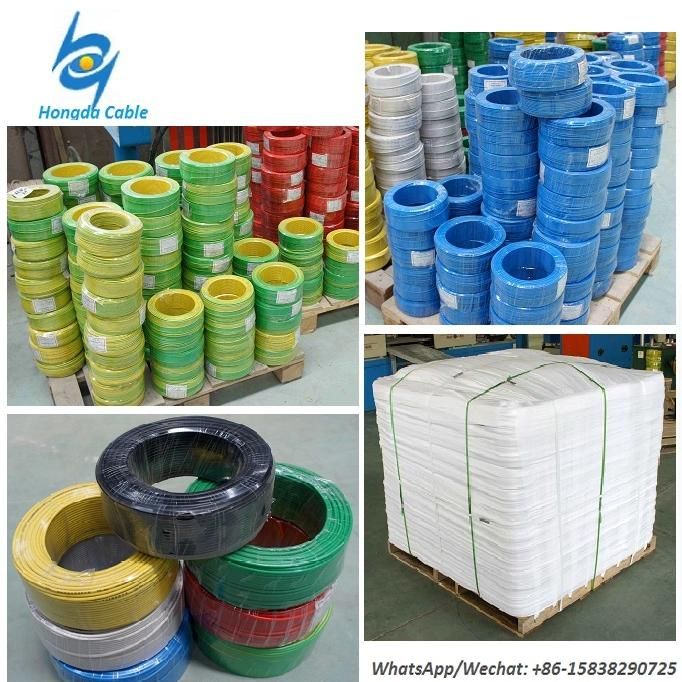

• Transport Package：100m Per Roll,Reel, or Customer Requirement
• Specification：1.5sqm to 630sqmm
• Trademark：Hongda, accept OEM
• Origin：China
• HS Code：8544492900
• Production Capacity：40km,Day

Basic Info.

Model NO. h07v-r Material Shape Round Wire Range of Application Power and Lighting Circuits and Building Wiring Certification ISO9001, CCC, SGS Brand Hongda Colour Required Black, Red, Blue, Yellow, Green/Yellow, White, etc Transport Package 100m Per Roll/Reel, or Customer Requirement Specification 1.5sqm to 630sqmm Trademark Hongda, accept OEM Origin China HS Code 8544492900 Production Capacity 40km/Day

Product Description

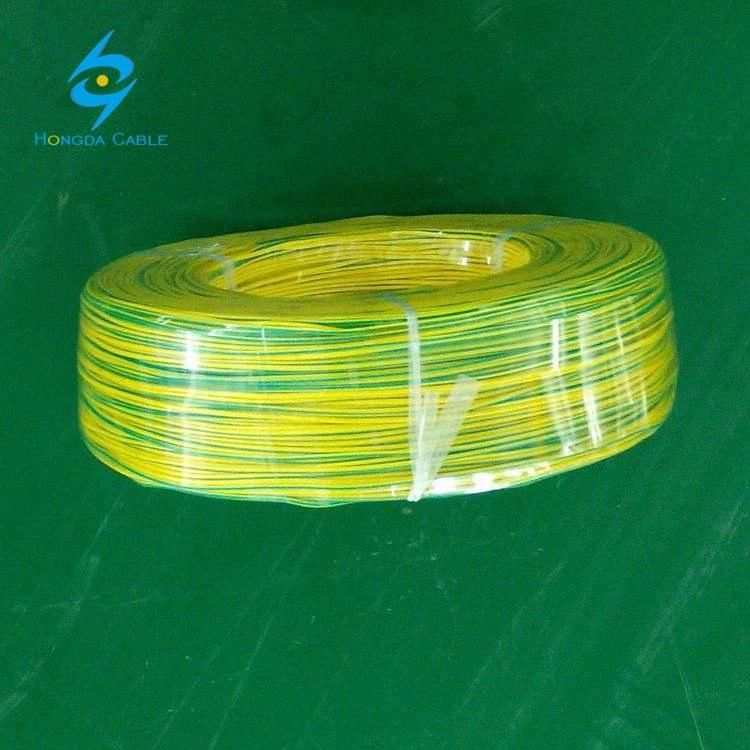

H07V-R Single Core 50 mm2 PVC Insulated Yellow / Green Cable
h07v-r single core pvc insulated building wire

Application
The cables are suitable for power and lighting circuits and building wiring suitable for use in semi flush exposed conduits, embedded conduits and in closed installation ducts.

Standard
BS EN 50525-2-31:2011. SABS 1507-2, SS 358 Part-3.

Specifications
Temperature Range : -15°C to 70°C Minimum Bending Radius
Upto 10 mm2 : 3 X Overall Diameter.
16 & 25 mm2 : 4 X Overall Diameter.
Above 25 mm2 : 5 X Overall Diameter.
Conductor : Plain annealed copper conductor 1.5 mm2 to 630 mm2 stranded class 2 complying with BS EN 60228, HD 383, IEC 60228
Insulation : PVC (Polyvinyl Chloride ) compound type TI 1 complying with EN 50363-3, HD 21.1, IEC 60227-1, SABS 1411-2

Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of 'xx') for the colour required:
02 - black, 03 - red, 04 - blue, 05 - yellow, 06 - green / yellow, 07 - white, 08 - violet, 09 - brown, 10 - orange, 11 - pink, 12 - grey.


Dimension:

Nominal Cross Sectional Area (Sq. mm)	Nominal Insulation Thickness (mm)	Overall Diameter Lower Limit (mm)	Overall Diameter Upper Limit (mm)	Approx. Net Weight (kg/km)
1.5	0.70	2.70	3.30	19
2.5	0.80	3.30	4.00	33
4	0.80	3.80	4.60	50
6	0.80	4.30	5.20	74
10	1.00	5.60	6.70	126
16	1.00	6.40	7.80	184
25	1.20	8.10	9.70	295
35	1.20	9.00	10.90	375
50	1.40	10.60	12.80	510
70	1.40	12.10	14.60	710
95	1.60	14.10	17.10	950
120	1.60	15.60	18.80	1240
150	1.80	17.30	20.90	1530
185	2.00	19.30	23.30	1800
240	2.20	22.00	26.60	2500
300	2.40	24.50	29.60	2990
400	2.60	27.50	33.20	3860
500	2.80	30.50	36.90	4900
630	2.80	34.00	41.10	6370

Certification:
