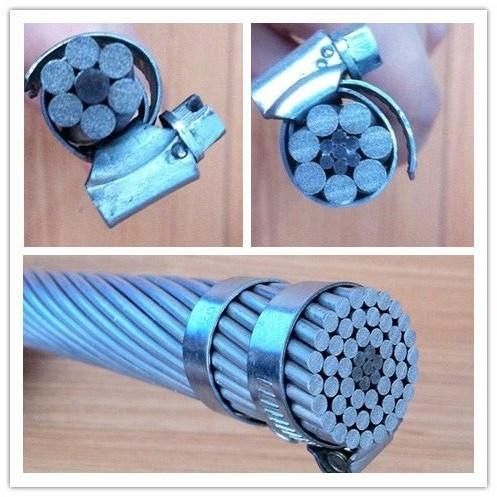

Overhead Aluminium Conductors Steel Reinforced Wire (ACSR)
Henan Hongda Cable Co., Ltd.- Type：Bare
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum Clad Steel
- Sheath Material：No
- Insulation Material：Bare
Base Info
- Model NO.：acsr
- Material Shape：Round Wire
- Range of Application：Overhead Distribution and Transmission
- Certification：ISO9001, CCC, SGS
- Brand：Hongda
- Size：4AWG to 2000
- Transport Package：Drum or as Customer Require
- Specification：ASTM B 232, BS 215 Part 2, DIN 48204
- Trademark：Hongda Cable
- Origin：China
- HS Code：76141000
- Production Capacity：50km,Day
Description
AreaStranding and
wire diameter Overall
Diameter Linear mass Nominal
breaking
load Maximum
resistance
at 20 ºC Nominal Actual Al/St Al St Al St Total mm2 mm2 mm2 mm mm mm kg/km daN ohm/km 16/2.5 15.3 2.5 6/1.80 1/1.80 5.4 62 595 1.878 25/4.0 23.8 4 6/2.25 1/2.25 6.8 97 920 1.2002 36/6.0 34.3 5.7 6/2.70 1/2.70 8.1 140 1265 0.8352 44/32.0 44 31.7 14/2.00 7/2.40 11.2 372 4500 0.6573 50/8.0 48.3 8 6/3.20 1/3.20 9.6 196 1710 0.5946 50/30 51.2 29.8 12/2.33 7/2.33 11.7 378 4380 0.5643 Dec-70 69.9 11.4 26/1.85 7/1.44 11.7 284 2680 0.413 95/15 94.4 15.3 26/2.15 7/1.67 13.6 383 3575 0.3058 95/55 96.5 56.3 12/3.20 7/3.20 16 712 7935 0.2992 105/75 105.7 75.5 14/3.10 9/2.25 17.5 891 10845 0.2735 120/20 121.06 19.8 26/2.44 7/1.90 15.5 494 4565 0.2374 120/70 122 71.3 12/3.6 7/3.60 18 901 10000 0.2364 125/30 127.9 29.8 30/2.33 7/2.33 16.3 591 5760 0.2259 150/25 148.9 24.2 26/2.70 7/2.10 17.1 605 5525 0.1939 170/40 171.8 40.1 30/2.70 7/2.70 18.9 794 7675 0.1682 185/30 183.8 29.8 26/3.00 7/2.33 19 746 6620 0.1571 210/35 209.1 34.1 26/3.20 7/2.49 20.3 850 7490 0.138 210/50 212.1 49.5 30/3.00 7/3.00 21 981 9390 0.1362 230/30 230.9 29.8 24/3.50 7/2.33 21 877 7310 0.1249 240/40 243 39.5 26/3.45 7/2.68 21.9 987 8640 0.1188 265/35 263.7 34.1 24/3.74 7/2.49 22.4 1002 8305 0.1094 300/50 304.3 49.5 26/3.86 7/3.00 24.5 1236 10700 0.09487 305/40 304.6 39.5 54/2.68 7/2.68 24.1 1160 9940 0.0949 340/30 339.3 29.8 48/3.00 7/2.33 25 1180 9290 0.08509 380/50 382 49.5 54/3.00 7/3.00 27 1453 12310 0.08509 385/35 386 34.1 48/3.20 7/2.49 26.7 1344 10480 0.07573 435/55 434.03 59.3 54/3.20 7/3.20 28.8 1653 13645 0.07478 450/40 448.7 39.5 48/3.45 7/2.68 28.7 1561 12075 0.06656 490/65 490.3 63.6 54/3.40 7/3.40 30.6 1866 15310 0.06434 495/35 494.1 34.1 45/3.74 7/2.49 29.9 1646 12180 0.05846 510/45 510.2 45.3 48/3.68 7/2.87 30.7 1778 13665 0.05655 550/70 550 71.3 54/3.60 7/3.60 32.4 2092 17060 0.05259 560/50 561.7 49.5 48/3.86 7/3.00 32.2 1954 14895 0.0514 570/40 565.5 39.5 45/4.00 7/2.68 32.2 1888 13900 0.05108 650/45 698.8 45.3 45/4.30 7/2.87 34.4 2163 15552 0.0442 680/85 678.8 86 54/4.00 18/2.40 36 2570 21040 0.0426 1045/45 1045.58 45.3 72/4.30 7/2.87 43 3249 21787 0.0277

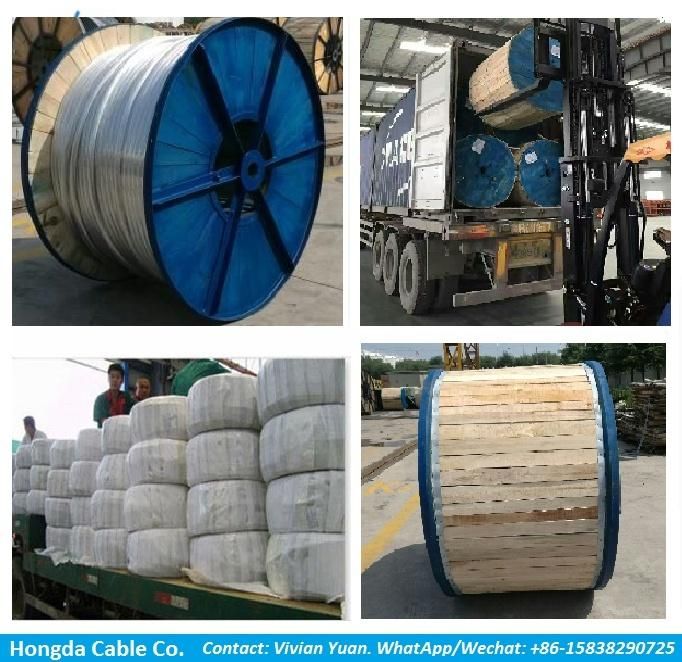

Packing:
1000m to 5000m packing in export Fumigation drums.
Other package accept customer require.
Contact me as follows:
If you have any other inquiry, pls contact me without any hesitation.
Phone: +86-15838290725
