Bare Copper Wires 750 V PVC Insulated Bwf Flexible Cable
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：Bare
Base Info
- Model NO.：BWF Cable
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CCC
- Brand：Hongda
- Standard：Bwf Cable
- Transport Package：Package in Roll or Reel or Drum
- Specification：0.5mm2 to 240mm2
- Trademark：Hongda Cable
- Origin：China
- HS Code：8544492900
- Production Capacity：900km,Month
Description
Construction dataSize norminal Diameter norminal of condcutor Insulation Thickness Overall diameter Mass Approx. Weight (mm2) (mm) (mm) (mm) (kg/km) 0.5 0.9 0.6 2.10 9 0.75 1.15 0.6 2.35 11 1 1.25 0.6 2.45 14 1.5 1.55 0.7 2.95 20 2* 1.7 0.8 3.30 25 2.5 1.97 0.8 3.57 32 4 2.5 0.8 4.10 46 6 3.10 0.8 4.70 64 10 4.30 1.0 6.30 116 16 5.40 1.0 7.40 175 25 6.80 1.2 9.20 265 35 7.85 1.2 10.25 364 50 9.30 1.4 12.10 520 70 11.25 1.4 14.05 720 95 12.50 1.6 15.70 890 120 14.00 1.6 17.20 1190 150 15.50 1.8 19.10 1500 185 17.70 2.0 21.70 1790 240 20.00 2.2 24.40 2390
2. 750 V BWF SOLID WIRE
2.1 USE:
The specific characteristics of this conductor are it is fire retardant, and self-extinguishing. It is recommended for lighting and electricity installations in residential, commercial, and industrial buildings.

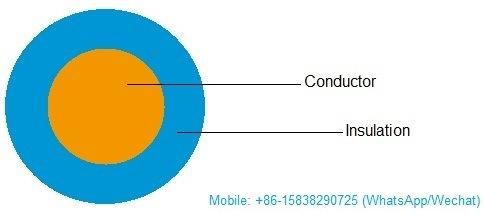

2.2 CONSTRUCTION:
2.2.1 Flexible bare copper conductor, soft temper, Class 1.
2.2.2 PVC/A Insulation 70°C - extruded thermoplastic compound based on PVC, its specific characteristics are, it is fire retardant and fire self-extinguishing.
2.2.3 PVC/A 70°C Insulation - extruded thermoplastic compound based on PVC, with special fire retardant and fire self-extinguishing characteristics. Good finishing characteristics and easy sliding of wires through the electroducts.

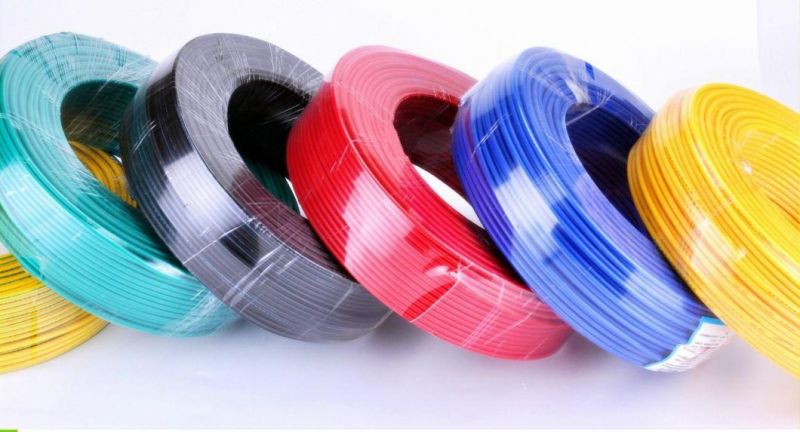

2.3 COLORS
Yellow, blue, white, gray, black, green, and red.
2.4 APPLICABLE STANDARD
NBR NM 247-3.
2.5 DESIGNATED STANDARD
247 NM 01-C1 BWF-B.
2.6 MAXIMUM TEMPERATURE OF CONDUCTOR
70°C in permanent regime;
100°C in overload regime;
160°C in short circuit regime.

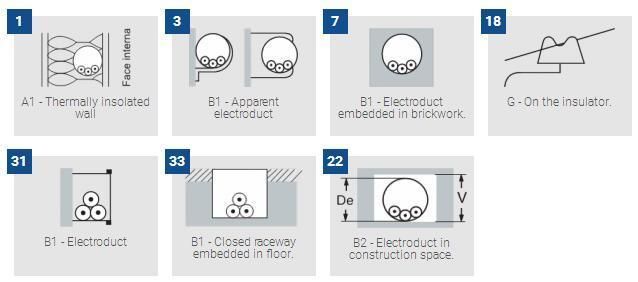

2.7 INSTALLATION METHOD DETAILS
2.8 MORE INFORMATIONConstruction data Seção Nominal (mm²) Classe de
encordoamento Diâmetro nominal
do condutor (mm) Espessura nominal
da isolação (mm) Diâmetro externo
nominal (mm) Massa líquida
aproximada (kg/km) 1,5 1 1,36 0,7 2,76 21 2,5 1 1,75 0,8 3,35 33 4 1 2,23 0,8 3,83 47 6 1 2,74 0,8 4,34 67 10 1 3,54 1,0 5,54 111 16 1 4,48 1,0 6,48 163
3. 750 V BWF CABLE
3.1 USE:
The specific characteristics of this conductor are it is fire retardant, and self-extinguishing. It is recommended for electricity installations in residential, commercial, and industrial buildings.
3.2 CONSTRUCTION
3.2.1 Conductor made from bare copper wires, soft temper, Class 2 wiring.
3.2.2 PVC/A Insulation 70°C - extruded thermoplastic compound based on PVC, with special fire retardant and fire self-extinguishing characteristics.
3.3 COLORS
Black, blue, green, white e red.
3.4 APPLICABLE STANDARD
NBR NM 247-3.
3.5 DESIGNATED STANDARD
247 NM 01-C2 BWF-B.
3.6 MAXIMUM CONDUCTOR TEMPERATURE
70°C in permanent regime;
100°C in overload regime;
160°C in short circuit regime.
3.7 MORE INFORMATIONConstruction data Seção Nominal (mm²) Classe de
encordoamento Numero de fios Diâmetro nominal
do condutor (mm) Espessura nominal
da isolação (mm) Diâmetro externo
nominal (mm) Massa líquida
aproximada (kg/km) 6 2 7 3.18 0,8 5.00 84 10 2 7 4.00 1.0 6.00 117 16 2 7 5.00 1.0 7.00 172 25 2 7 6.30 1.2 8.70 268 35 2 7 7.35 1,2 9.75 362 50 2 19 8.90 1,4 11.70 510 70 2 19 10.55 1.4 13.35 695 95 2 19 12.35 1.6 15.55 979 120 2 37 14.00 1.6 17.20 1192 150 2 37 15.40 1.8 19.00 1485 185 2 37 17.30 2.0 21.30 1822 240 2 61 19.95 2.2 24.35 2369
Bare Copper Wires 750 V PVC Insulated BWF Flexible Cable
PACKAGING:
A: Roll of 100 m
B: Reel of 1500 m.
C: Reel of 1000 m.
D: Reel of 500 m.
E: Multiple Reels of 1000 m.
Z - Length to the client's requirement.
For more information, don't hesitate to contact us on +86-15838290725.
