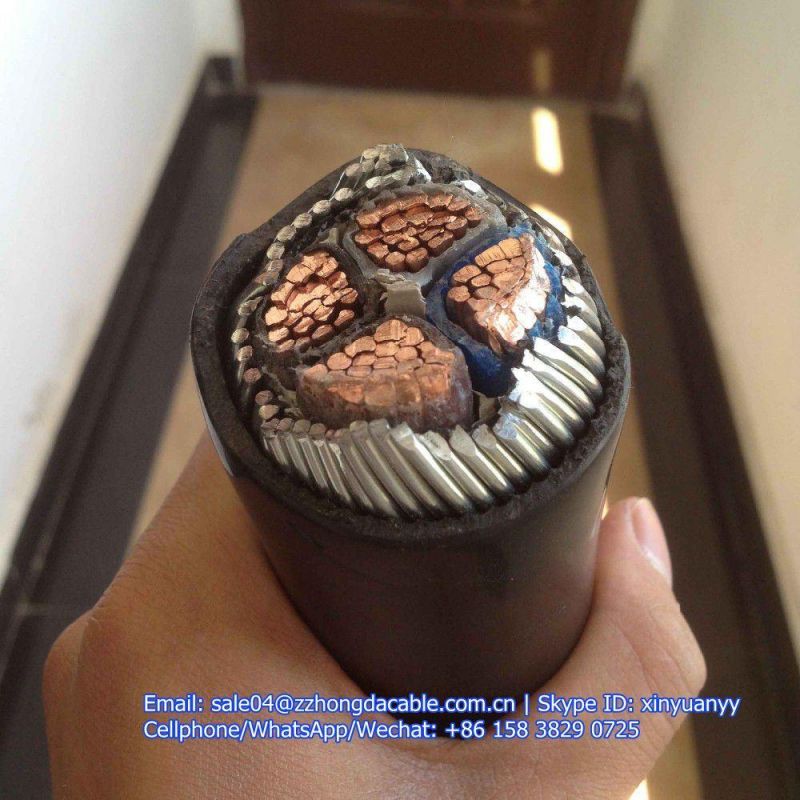

BS 6724 LSZH Sheath 0.6/1kv LV Power Swa Armored Cable
Henan Hongda Cable Co., Ltd.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：SWA cable
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, SGS
- Model：Armor Cable
- Brand：Hongda
- Armoured：Steel Wire or Steel Tape
- Transport Package：Steel & Wooden Drum
- Specification：1.5mm2 to 400mm2
- Trademark：Hongda Cable
- Origin：China
- HS Code：8544492100
- Production Capacity：300km,Month
Description
No. of CoresNominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter mm Nominal Weight mm² mm Under Armour Overall kg/km 2 1.5 0.6 7.3 12.1 302 2 2.5 0.7 8.5 13.6 346 2 4 0.7 9.4 14.7 410 2 6 0.7 10.5 15.9 499 2 10 0.7 12.3 18 648 2 16 0.7 14.3 20.4 978 2 25 0.9 14.7 20.4 1290 2 35 0.9 16.8 23.3 1500 2 50 1 19 25.8 1890 2 70 1.1 22 29 2450 2 95 1.1 25.1 33.1 3300 2 120 1.2 27.9 36.1 4020 2 150 1.4 30.9 39.3 4750 3 1,5 0.6 7.8 12.6 330 3 2.5 0.7 9.2 14.1 390 3 4 0.7 10 15.3 464 3 6 0.7 11.2 16.6 568 3 10 0.7 13.1 19.5 866 3 16 0.7 15.3 21.6 1152 3 25 0.9 18.9 23.6 1800 3 35 0.9 21.3 25.7 2230 3 50 1 21.7 28.5 2490 3 70 1.1 25.2 32.2 3290 3 95 1.1 28.8 37 4440 3 120 1.2 32 40.4 5470 3 150 1.4 35.9 45.5 6930 3 185 1.6 40 49.8 8350 3 240 1.7 44.9 55.1 10400 3 300 1.8 49.8 60.2 12600 3 400 2 55.8 66.6 14600 4 1.5 0.6 8.5 13.3 365 4 2.5 0.7 9.9 15 438 4 4 0.7 11 16.4 532 4 6 0.7 12.3 18.7 764 4 10 0.7 14.5 21.1 1013 4 16 0.7 17 23.4 1360 4 25 0.9 21 26.1 2160 4 35 0.9 23.6 28.6 2690 4 50 1 25 32 3130 4 70 1.1 29.5 37.7 4500 4 95 1.1 33.3 41.7 5600 4 120 1.2 37.5 47.1 7400 4 150 1.4 41.6 51.4 8780 4 185 1.6 46.4 56.6 10630 4 240 1.7 52.6 63 13390 4 300 1.8 58 68.8 16290 4 400 2 65.4 78.1 19800 5 1.5 0.6 9.7 14.3 410 5 2.5 0.7 11.7 16.1 470 5 4 0.7 13 17.8 710 5 6 0.7 14.5 20 876 5 10 0.7 17.2 22.9 1165 5 16 0.7 20 26.6 1742 5 25 0.9 24.7 31.5 2323 5 35 0.9 27.8 34.8 2932 5 50 1 32.4 40.4 4192 7 1.5 0.6 10.2 15.2 470 7 2.5 0.7 12.3 17.1 600 7 4 0.7 13.6 19.1 881 12 1.5 0.6 13.7 19.4 780 12 2.5 0.7 16.3 22.4 1000 19 1.5 0.6 16.2 22.2 1000 19 2.5 0.7 19.9 26.6 1540 27 1.5 0.6 20 26.7 1500 27 2.5 0.7 24 30.7 1950 37 1.5 0.6 22.3 29 1800 37 2.5 0.7 26.9 33.8 2350
Class 2 Stranded Conductors for Single Core and Multi-Core CablesMinimum No. Of Wires In ConductorMaximum Resistance
of Conductor At 20ºC mm² Circular Circular Compacted Shaped Annealed Copper Conductor Cu Al Cu Al Cu Al Plain Wires ohms/km 1.5 7 - 6 - - - 12.1 2.5 7 - 6 - - - 7.41 4 7 - 6 - - - 4.61 6 7 - 6 - - - 3.08 10 7 7 6 6 - - 1.83 16 7 7 6 6 - - 1.15 25 7 7 6 6 6 6 0.727 35 7 7 6 6 6 6 0.524 50 19 19 6 6 6 6 0.387 70 19 19 12 12 12 12 0.268 95 19 19 15 15 15 15 0.193 120 37 37 18 15 18 15 0.153 150 37 37 18 15 18 15 0.124 185 37 37 30 30 30 30 0.0991 240 37 37 34 30 34 30 0.0754
4.2 BS 5467 SWA PVC 0.6/1kV Cable
4.2.1 Cable Construction:No. of CoresNominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter mm Nominal Weight mm² mm Under Armour Overall kg/km 2 1.5 0.6 7.3 12.1 302 2 2.5 0.7 8.5 13.6 346 2 4 0.7 9.4 14.7 410 2 6 0.7 10.5 15.9 499 2 10 0.7 12.3 18 648 2 16 0.7 14.3 20.4 978 2 25 0.9 14.7 20.4 1290 2 35 0.9 16.8 23.3 1500 2 50 1 19 25.8 1890 2 70 1.1 22 29 2450 2 95 1.1 25.1 33.1 3300 2 120 1.2 27.9 36.1 4020 2 150 1.4 30.9 39.3 4750 3 1,5 0.6 7.8 12.6 330 3 2.5 0.7 9.2 14.1 390 3 4 0.7 10 15.3 464 3 6 0.7 11.2 16.6 568 3 10 0.7 13.1 19.5 866 3 16 0.7 15.3 21.6 1152 3 25 0.9 18.9 23.6 1800 3 35 0.9 21.3 25.7 2230 3 50 1 21.7 28.5 2490 3 70 1.1 25.2 32.2 3290 3 95 1.1 28.8 37 4440 3 120 1.2 32 40.4 5470 3 150 1.4 35.9 45.5 6930 3 185 1.6 40 49.8 8350 3 240 1.7 44.9 55.1 10400 3 300 1.8 49.8 60.2 12600 3 400 2 55.8 66.6 14600 4 1.5 0.6 8.5 13.3 365 4 2.5 0.7 9.9 15 438 4 4 0.7 11 16.4 532 4 6 0.7 12.3 18.7 764 4 10 0.7 14.5 21.1 1013 4 16 0.7 17 23.4 1360 4 25 0.9 21 26.1 2160 4 35 0.9 23.6 28.6 2690 4 50 1 25 32 3130 4 70 1.1 29.5 37.7 4500 4 95 1.1 33.3 41.7 5600 4 120 1.2 37.5 47.1 7400 4 150 1.4 41.6 51.4 8780 4 185 1.6 46.4 56.6 10630 4 240 1.7 52.6 63 13390 4 300 1.8 58 68.8 16290 4 400 2 65.4 78.1 19800 5 1.5 0.6 9.7 14.3 410 5 2.5 0.7 11.7 16.1 470 5 4 0.7 13 17.8 710 5 6 0.7 14.5 20 876 5 10 0.7 17.2 22.9 1165 5 16 0.7 20 26.6 1742 5 25 0.9 24.7 31.5 2323 5 35 0.9 27.8 34.8 2932 5 50 1 32.4 40.4 4192 7 1.5 0.6 10.2 15.2 470 7 2.5 0.7 12.3 17.1 600 7 4 0.7 13.6 19.1 881 12 1.5 0.6 13.7 19.4 780 12 2.5 0.7 16.3 22.4 1000 19 1.5 0.6 16.2 22.2 1000 19 2.5 0.7 19.9 26.6 1540 27 1.5 0.6 20 26.7 1500 27 2.5 0.7 24 30.7 1950 37 1.5 0.6 22.3 29 1800 37 2.5 0.7 26.9 33.8 2350
Class 2 Stranded Conductors for Single Core and Multi-Core CablesMinimum No. Of Wires In ConductorMaximum Resistance
of Conductor At 20ºC mm² Circular Circular Compacted Shaped Annealed Copper Conductor Cu Al Cu Al Cu Al Plain Wires ohms/km 1.5 7 - 6 - - - 12.1 2.5 7 - 6 - - - 7.41 4 7 - 6 - - - 4.61 6 7 - 6 - - - 3.08 10 7 7 6 6 - - 1.83 16 7 7 6 6 - - 1.15 25 7 7 6 6 6 6 0.727 35 7 7 6 6 6 6 0.524 50 19 19 6 6 6 6 0.387 70 19 19 12 12 12 12 0.268 95 19 19 15 15 15 15 0.193 120 37 37 18 15 18 15 0.153 150 37 37 18 15 18 15 0.124 185 37 37 30 30 30 30 0.0991 240 37 37 34 30 34 30 0.0754 300 61 61 34 30 34 30 0.0601 400 61 61 53 53 53 53 0.047
1. Where a conductor operates at a temperature exceeding 70ºC it must be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature.
2. Where cables in this table are connected to equipment or accessories designed to operate at a temperature not exceeding 70ºC , the current ratings given in the equivalent table for 70ºC thermoplastic insulated cables must be used.
For more information, don't hesitate to call us on +86-15838290725 or send inquiry to me.
Class 2 Stranded Conductors for Single Core and Multi-Core CablesMinimum No. Of Wires In Conductor
of Conductor At 20ºC
4.2 BS 5467 SWA PVC 0.6/1kV Cable
4.2.1 Cable Construction:No. of Cores
Class 2 Stranded Conductors for Single Core and Multi-Core CablesMinimum No. Of Wires In Conductor
of Conductor At 20ºC
1. Where a conductor operates at a temperature exceeding 70ºC it must be ascertained that the equipment connected to the conductor is suitable for the conductor operating temperature.
2. Where cables in this table are connected to equipment or accessories designed to operate at a temperature not exceeding 70ºC , the current ratings given in the equivalent table for 70ºC thermoplastic insulated cables must be used.
