200c 300V FEP Insulated Multi Shield Cable
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating, Underground
- Conductor Material：Copper
- Sheath Material：FEP
- Insulation Material：FEP
Base Info
- Model NO.：FPF
- Material Shape：Round Wire
- Range of Application：Internal Wiring
- Certification：ISO9001, CE, UL, CCC, RoHS, CSA
- Brand：Fongming
- Name：200c 300V FEP Insulated Multi Shield Cable
- Rating Voltage：300V
- Working Temperature：200c
- Color：as Required, Red, Green, Yellow, Blue
- Sample：3 Meters Free, 3 Days
- Customize：Available
- MOQ：1000 Meters
- Transport Package：305m Per Roll, Carton Box Outside
- Specification：2*18~7*14AWG
- Trademark：Fongming
- Origin：Yangzhou, P. R China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. FPF Material Shape Round Wire Range of Application Internal Wiring Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name 200c 300V FEP Insulated Multi Shield Cable Rating Voltage 300V Working Temperature 200c Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 2*18~7*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
Product Description200C 300V FEP Insulated Multi Shield Cable
Description
Name: 200C 300V FEP Insulated Multi Shield Cable
Model: FPF
Size: 2*18~7*14AWG
Feature
Ratings Voltage: 300V
Rated Temperature: 200C

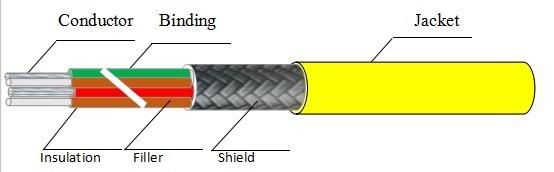

Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Shield:Tinned Copper
Jacket:FEP
| Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Shield Thickness (mm) | Jacket Thickness (mm) | O.D. (mm) |
| 2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.2 | 0.51 | 4.6±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.2 | 0.51 | 4.9±0.2 |
| 4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.2 | 0.51 | 5.3±0.3 |
| 5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.2 | 0.51 | 5.8±0.3 |
| 6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.2 | 0.51 | 6.0±0.3 |
| 7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.2 | 0.51 | 6.3±0.3 |
| 2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.2 | 0.51 | 5.2±0.3 |
| 3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.2 | 0.51 | 5.6±0.3 |
| 4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.2 | 0.51 | 6.1±0.3 |
| 5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.2 | 0.51 | 6.7±0.3 |
| 6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.2 | 0.51 | 6.9±0.3 |
| 7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.2 | 0.51 | 7.3±0.4 |
| 2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.2 | 0.51 | 6.0±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.2 | 0.51 | 6.4±0.3 |
| 4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.2 | 0.51 | 7.0±0.3 |
| 5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.2 | 0.51 | 7.7±0.4 |
| 6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.2 | 0.51 | 7.9±0.4 |
| 7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.2 | 0.51 | 8.4±0.4 |
Certifications
Company Information
Packaging&Shipping
Our Services
1. OEM service available based on official & legal authorization.
2. Strict quality control system.
3. Timely deliverly.
4. Excellent quality with affordable price.
5. Strong technical support.
6. Mobile on 24 hours for any question.
FAQ
1. Why is the price so low?
You are ordering directly from the factory.
2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3. Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
