• Model NO.：UL20369
• MOQ：2000meters
• Transport Package：Cartons and Pallet
• Specification：AS CUSTOMER REQUIREMENT
• Trademark：FONGMING
• Origin：Yangzhou China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. UL20369 MOQ 2000meters Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

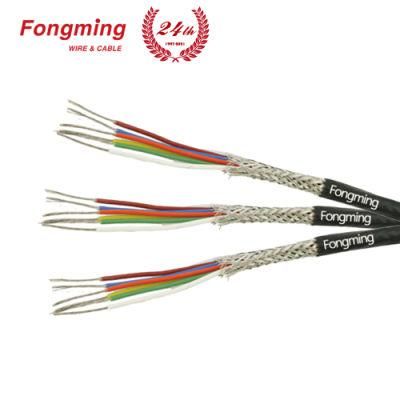

UL20369 Multi FEP Cable

Description
Name: Multi FEP Wire
Model:AWM 20369
Size:2*18~7*14AWG
Feature
Rated Voltage:600V
Rated Temperature:200ºC
Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Shield:Optional
Jacket:FEP

Size (AWG)	Conductor Structure  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Cabling Diameter	Jacket Thickness (mm)	O.D. (mm)
2*18	7/0.39	1.17	0.25	1.70	3.40	0.64	4.7±0.2
3*18	7/0.39	1.17	0.25	1.70	3.70	0.64	5.0±0.3
4*18	7/0.39	1.17	0.25	1.70	4.10	0.64	5.4±0.3
5*18	7/0.39	1.17	0.25	1.70	4.60	0.64	5.9±0.3
6*18	7/0.39	1.17	0.25	1.70	4.80	0.64	6.1±0.3
7*18	7/0.39	1.17	0.25	1.70	5.10	0.64	6.4±0.3
2*16	19/0.3	1.50	0.25	2.00	4.00	0.64	5.3±0.3
3*16	19/0.3	1.50	0.25	2.00	4.30	0.64	5.6±0.3
4*16	19/0.3	1.50	0.25	2.00	4.80	0.64	6.1±0.3
5*16	19/0.3	1.50	0.25	2.00	5.40	0.64	6.7±0.3
6*16	19/0.3	1.50	0.25	2.00	5.60	0.64	6.9±0.3
7*16	19/0.3	1.50	0.25	2.00	6.00	0.64	7.3±0.4
2*14	19/0.37	1.85	0.25	2.40	4.80	0.64	6.1±0.3
3*14	19/0.37	1.85	0.25	2.40	5.20	0.64	6.5±0.3
4*14	19/0.37	1.85	0.25	2.40	5.80	0.64	7.1±0.4
5*14	19/0.37	1.85	0.25	2.40	6.50	0.64	7.8±0.4
6*14	19/0.37	1.85	0.25	2.40	6.70	0.64	8.0±0.4
7*14	19/0.37	1.85	0.25	2.40	7.20	0.64	8.5±0.4
