• Model NO.：ul2750
• Material Shape：Round Wire
• Range of Application：Instrument
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Fongming
• Name：UL2750
• MOQ：2000meters
• Transport Package：Cartons and Pallet
• Specification：AS CUSTOMER REQUIREMENT
• Trademark：FONGMING
• Origin：Yangzhou China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. ul2750 Material Shape Round Wire Range of Application Instrument Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name UL2750 MOQ 2000meters Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

UL2750 Multi FEP Cable
 Description
Name: Multi FEP Wire
Model:AWM 2750
Size:2*18~7*14AWG
Feature
Rated Voltage:600V
Rated Temperature:200ºC

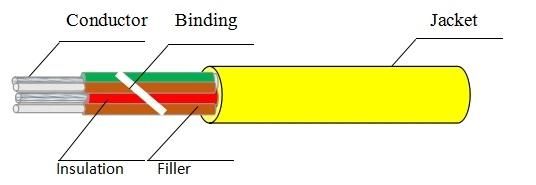

Structure
 Conductor: Tinned Copper,Nickel Plated Copper
 Insulation:FEP
 Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
Shield:Optional
Jacket:FEP

Size (AWG)	Conductor Structure  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Cabling Diameter	Jacket Thickness (mm)	O.D. (mm)
2*18	7/0.39	1.17	0.25	1.70	3.40	0.51	4.4±0.2
3*18	7/0.39	1.17	0.25	1.70	3.70	0.51	4.7±0.2
4*18	7/0.39	1.17	0.25	1.70	4.10	0.51	5.1±0.3
5*18	7/0.39	1.17	0.25	1.70	4.60	0.51	5.6±0.3
6*18	7/0.39	1.17	0.25	1.70	4.80	0.51	5.8±0.3
7*18	7/0.39	1.17	0.25	1.70	5.10	0.51	6.1±0.3
2*16	19/0.3	1.50	0.25	2.00	4.00	0.51	5.0±0.3
3*16	19/0.3	1.50	0.25	2.00	4.30	0.51	5.4±0.3
4*16	19/0.3	1.50	0.25	2.00	4.80	0.51	5.9±0.3
5*16	19/0.3	1.50	0.25	2.00	5.40	0.51	6.5±0.3
6*16	19/0.3	1.50	0.25	2.00	5.60	0.51	6.7±0.3
7*16	19/0.3	1.50	0.25	2.00	6.00	0.51	7.1±0.4
2*14	19/0.37	1.85	0.25	2.40	4.80	0.51	5.8±0.3
3*14	19/0.37	1.85	0.25	2.40	5.20	0.51	6.2±0.3
4*14	19/0.37	1.85	0.25	2.40	5.80	0.51	6.8±0.3
5*14	19/0.37	1.85	0.25	2.40	6.50	0.51	7.5±0.4
6*14	19/0.37	1.85	0.25	2.40	6.70	0.51	7.7±0.4
7*14	19/0.37	1.85	0.25	2.40	7.20	0.51	8.2±0.4
