• Model NO.：XLPE
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：5000000km,Year

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.
 APPLICATION

The N2XCY cable is a low voltage power cable with a concentric conductor of copper wires and tape for protective earth / neutral connections. It is widely used in European power distribution applications, including transformer stations and industrial plants, holding a rated voltage of 0.6/1kV and manufactured in accordance with IEC 60502-1 and DIN VDE 0276-603.  The N2XCY cable is PVC sheathed, providing a flame retardant covering and XLPE insulated for a maximum conductor operating temperature of 90^oC.
The N2XCY multicore power cable is designed for internal and external installation environments. Designed for internal and external use, it can be installed underground with additional protection.

CONSTRUCTION

Conductor Class 2 Stranded copper
Insulation XLPE (Cross-Linked Polyethylene)
Filler PVC (Polyvinyl chloride)
Concentric Conductor Copper Wires and Tape
Protective Copper Tape
Outer Sheath PVC (Polyvinyl chloride)

CHARACTERISTICS
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV
Temperature Rating
Maximum Operating: +90ºC
Maximum Short-Circuit: +250°C
Minimum Bending Radius
15 x overall diameter

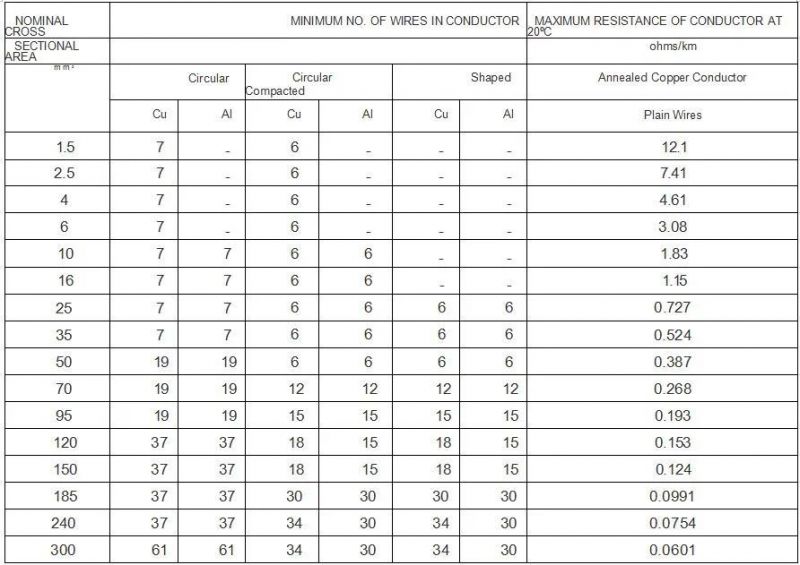

CONDUCTOR
