Optical Fiber Cable with LSZH Jacket, Best Choice for FTTH Connection, GJXFH
Zhejiang Kuayue Cable Co., Ltd.- Application：Communication
- Type：Single-mode Fiber
- Material Shape：Flat Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
- Core：Double Core
Base Info
- Model NO.：GJXFH
- Certification：RoHS, UL, CE, ISO9001
- Brand：OEM
- Sheath Material：LSZH
- Transport Package：Wooden Drum
- Specification：0-2km,drum
- Trademark：HANLI
- Origin：Zhejiang, China
- HS Code：8544601300
- Production Capacity：2000000m,Month
Description
Basic Info.
Model NO. GJXFH Certification RoHS, UL, CE, ISO9001 Brand OEM Sheath Material LSZH Transport Package Wooden Drum Specification 0-2km/drum Trademark HANLI Origin Zhejiang, China HS Code 8544601300 Production Capacity 2000000m/MonthProduct Description

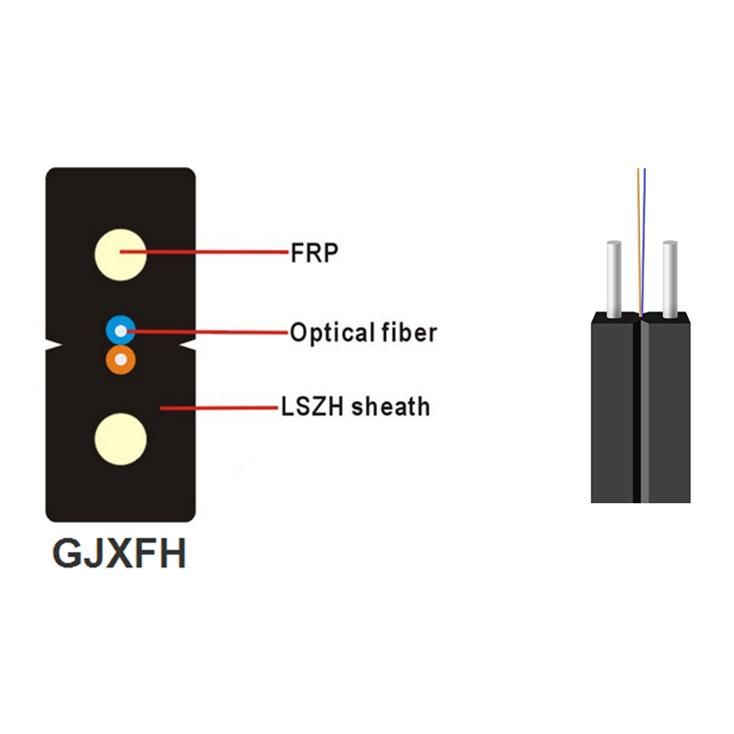

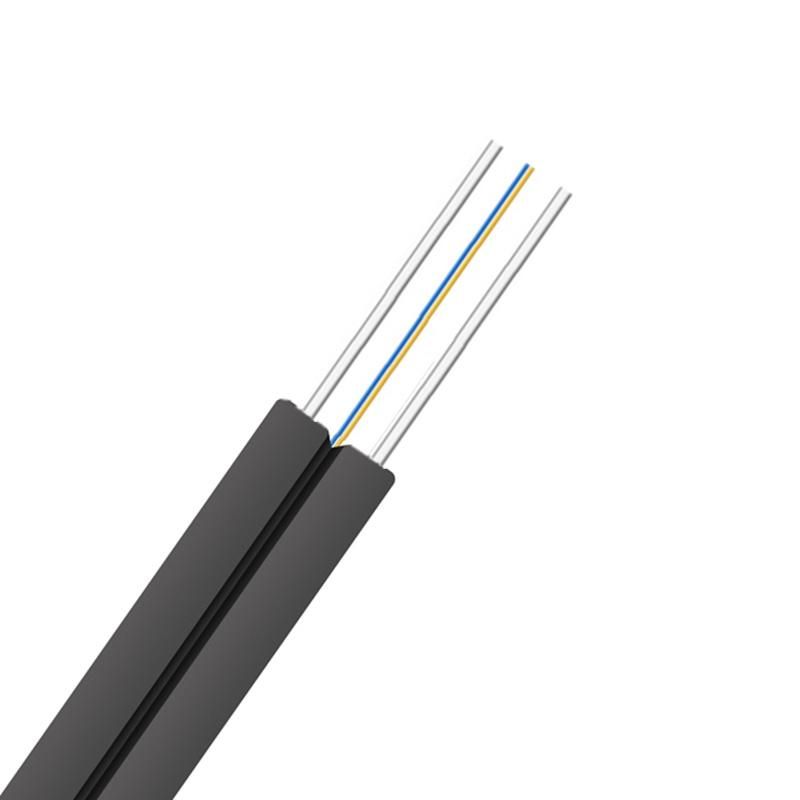

FTTH Droplite Cables(Aerial Installation) - GJXH/GJXFH
This optical fiber cable is suitable for aerial installation to the end connectivity up to home.The 2 fibres embedded in LSZH sheath between 2 ARP rods which can be taken out easily from the LSZH sheath. This is suitable for the successful indoor installation in any type of civil structures.
Options Available
- Customized designs are available on request.
- Fibre options: SM (G652B/D, G655 & G657), MM (OM1, OM2 & OM3)
- Composite of various types of fibres (SM & MM)
- Metallic strength member option available.
- Higher fibre count cable designs are available on request.
OTHER FTTH DROP CABLE

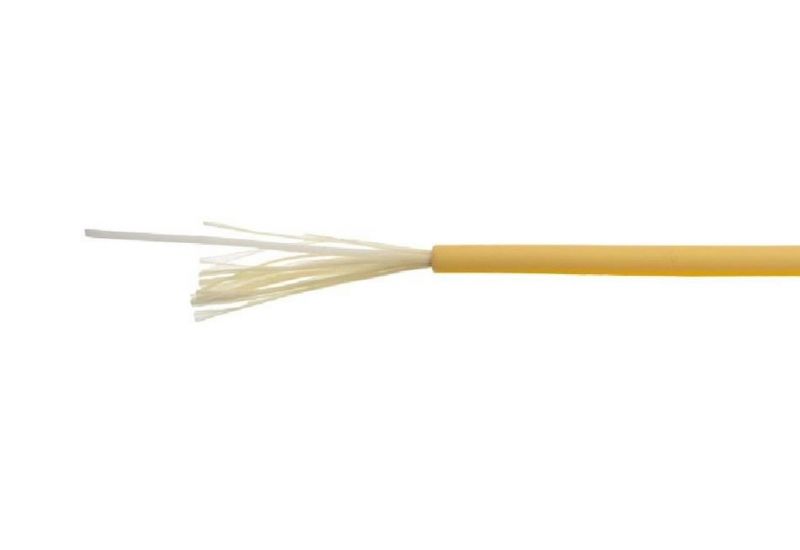

Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with
jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

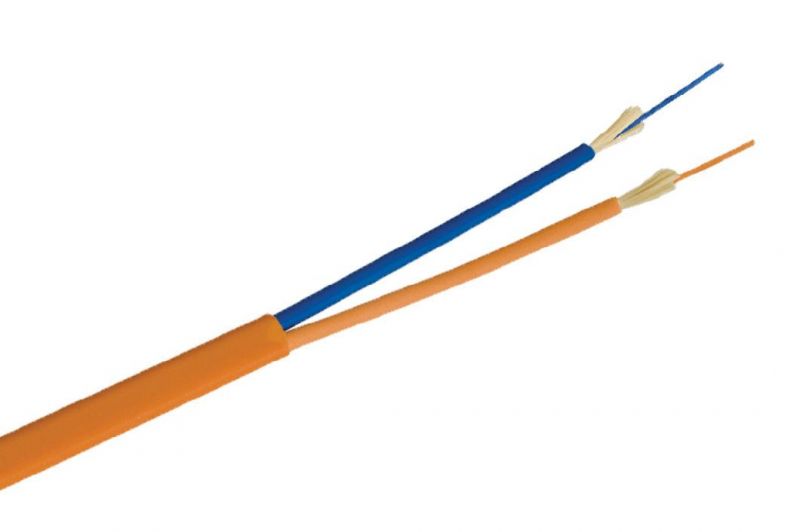

Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed
with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.
Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are
reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

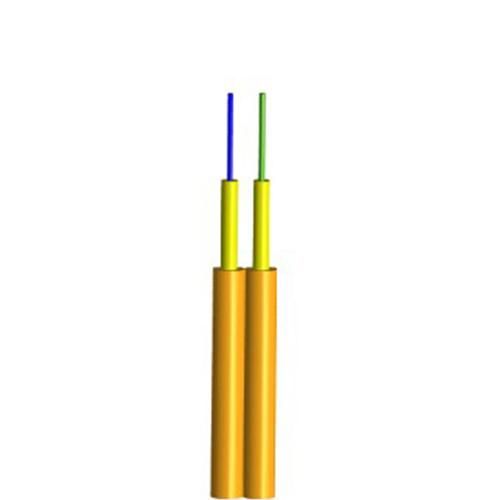

Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They
are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a āzipcordā construction.
