• Model NO.：CIVIL WIRE
• Material Shape：Round Wire
• Range of Application：Installed in Conduit, House Wire
• Certification：ISO9001, CCC
• Brand：Hongda

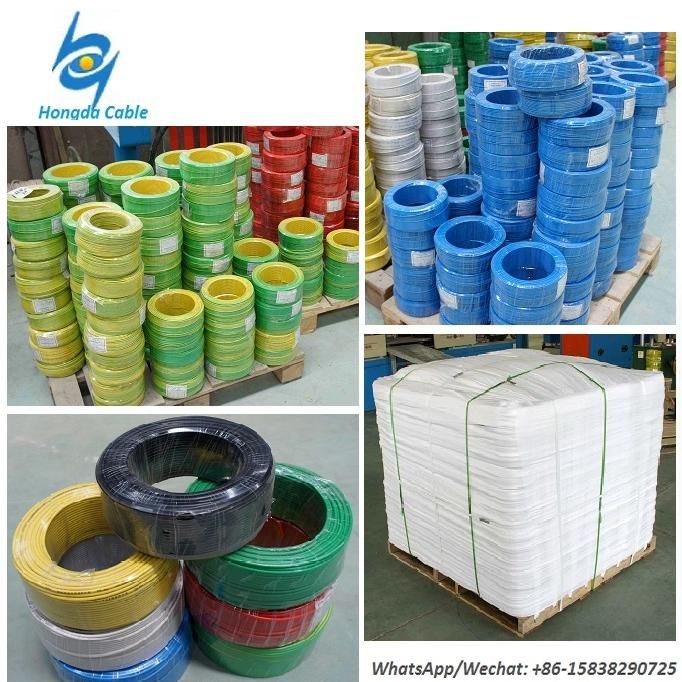

• 1.5 - 16 Sqmm Packing：in Coil @ 100 M
• 25 - 400 Sqmm Packing：in Wooden Drum @ 1000 M
• 1.5 - 10 Sqmm Conductor：in Solid (Re)
• 16 - 400 Sqmm Conductor：in Non Compacted Circular Stranded
• Transport Package：100m Per Roll, or as Customer Requirement
• Specification：1.5 - 400 mm2
• Trademark：Hongda, customer OEM
• Origin：China
• HS Code：8544492900
• Production Capacity：30km,Day

Nom. Cross Section AreaOverall DiameterCable Weightapprox.approx.mm²mmkg/km1.53.1222.53.73444.35064.870106.2117167.2173259.02773510.13695012.15137013.87099516.095812017.61,18315019.51,44818522.01,83524025.52,41330028.02,95840031.53,782Note :
Conductor Shaped
1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
16 - 400 sqmm supplied in non compacted circular stranded (rm) conductor shape


ConductorInsulationInductanceCurrent - Carrying Capacity at 30° C *Short circuit current at 1 secNom. Cross Section AreaDC Resistance at 20°CAC Resistance at 70°CInsulation
Resistance
at 70°Cin pipein air(mm²)Max. (Ω/km)Max. (Ω/km)Min.
(M.Ω.km)(mH/km)Max. (A)Max. (A)Max. (kA)1.512.114.4780.01000.32015240.172.57.418.8660.00900.30919320.2944.615.5160.00770.29025420.4663.083.6850.00650.27633540.69101.832.1900.00650.27445731.15161.151.3760.00500.26061981.84250.7270.8700.00500.257831292.88350.5240.6270.00400.2491031584.03500.3870.4640.00450.2481321975.75700.2680.3210.00350.2401652458.05950.1930.2320.00350.23920729010.931200.1530.1840.00320.23523534513.801500.1240.1500.00320.235-39017.251850.09910.1210.00320.235-44521.282400.07540.0930.00320.233-52527.603000.06010.0750.00300.232-60534.504000.04700.0600.00280.231-72541.20
Standard Packing:

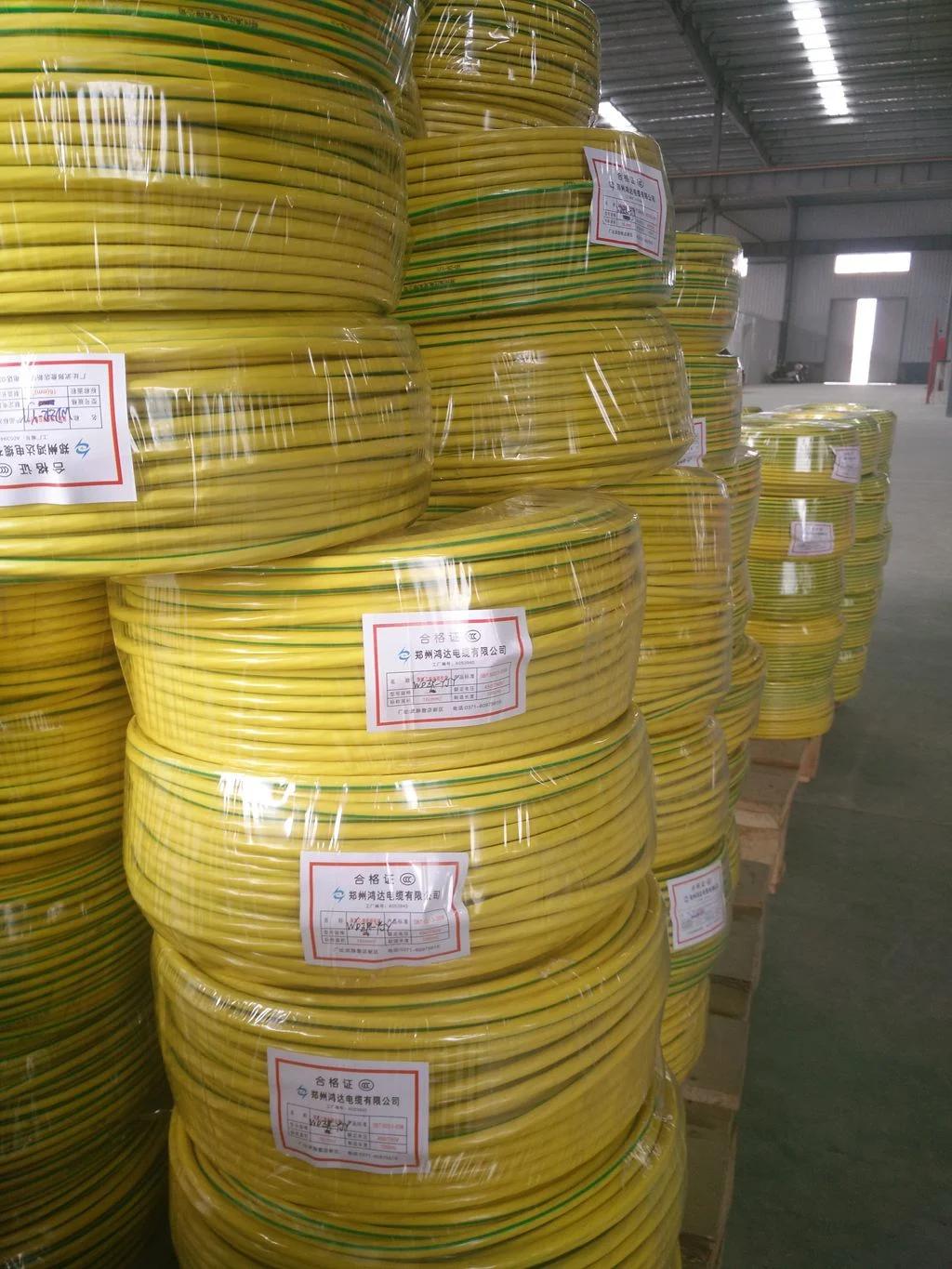

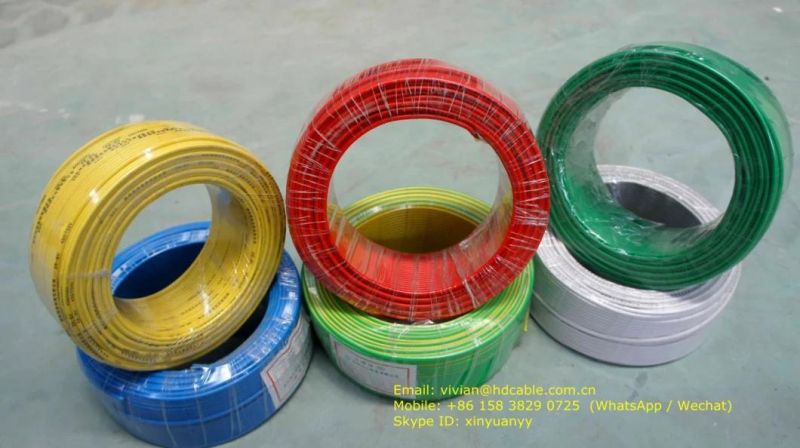

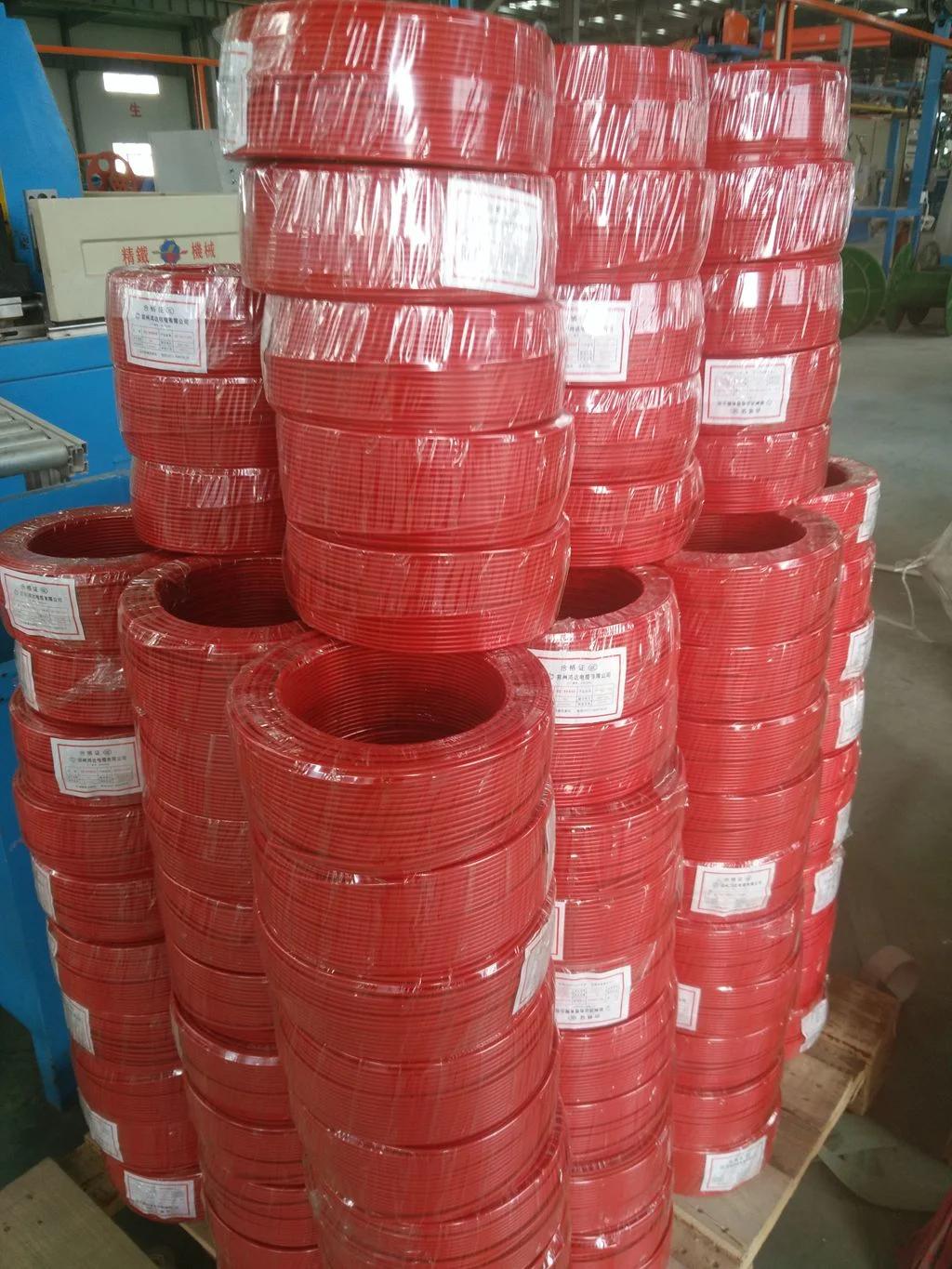

1.5 - 16 sqmm supplied in coil @ 100 m
25 - 400 sqmm supplied in wooden drum @ 1000 m
Length Tolerance per drum ± 2%
