• Model NO.：LV-BE57
• Wire Core Material：Aluminum or Copper
• Certification：ISO, CCC, CE
• Model：LV-Be57
• Brand：Yifang

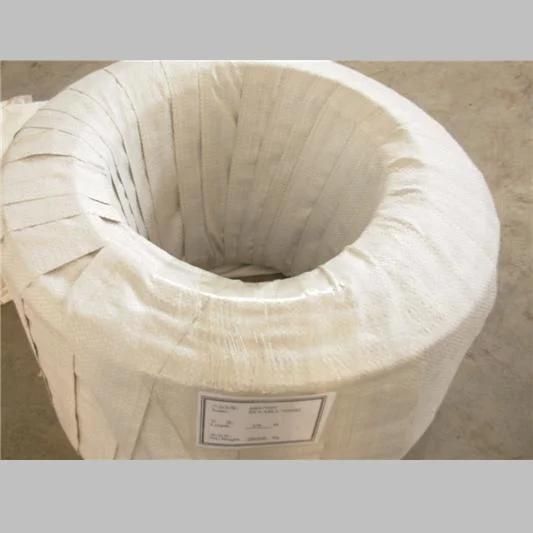

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：16 mm2
• Trademark：Yifang
• Origin：Zhengzhou City of Henan Province, China
• HS Code：8544492100
• Production Capacity：500 Kilometers,Month

Basic Info.

Model NO. LV-BE57 Wire Core Material Aluminum or Copper Certification ISO, CCC, CE Model LV-Be57 Brand Yifang Transport Package Wooden Drum or Wooden&Steel Drum Specification 16 mm2 Trademark Yifang Origin Zhengzhou City of Henan Province, China HS Code 8544492100 Production Capacity 500 Kilometers/Month

Product Description

0.6/1kV PVC Copper Core Cable 16mm From China Cable Manufacturer

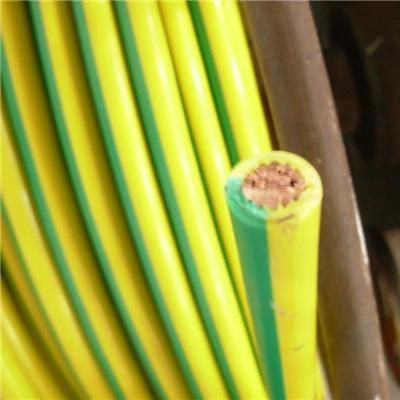

 Intruduction of the Electric Wire PVC Insulated Single Core H05V-U / H07V-U/ H07V-R wire:
1, The national certification of qualified manufacturers
2, Standard: GB 5023.1, IEC 60227/228, VDE
3, CE, ISO ,SGS Certificate
4, Meet European standards and can be customized according to customer requirements
5, OEM, ODM cooperation

Application

H05V-U / H07V-U are harmonized PVC European single-conductor hook-up wires with a solid bare copper core. Ideal for the internal wiring of appliances, apparatus, switchboards and distributor boards or where a solid core is required. Suitable in dry rooms for fixed and flexible laying. May be used for exposed and embedded conduits. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country for MRO replacement of European made equipment wire.
The products is suitable for use in power installations, fixed wiring or flexible connections for electrical appliances, Like lighting, electronic equipment, instrument and communication equipment with rated voltage 300/500V, 450/750V, The Operating temperature: Allowing the wire of work for long time should not exceed +70 centigrade.

Specification


Nominal cross section (mm2)	Number/diameter of core(mm)	Insulation thickness (mm)	Maximum outer diameter(mm)	Reference Weight(km/kg)	Conductor resistance at 20°C≤(Ω/km)
0.5	1/0.80	0.6	2.4	8.44	36
0.75	1/0.97	0.6	2.6	11.02	24.5
1	1/1.13	0.6	2.8	13.85	18.1
1.5	1/1.38	0.7	3.3	20.2	12.1
1.5	7/0.52	0.7	3.4	21.62	12.1
2.5	1/1.78	0.8	3.9	31.9	7.41
2.5	7/0.68	0.8	4.2	34.89	7.41
4	1/2.25	0.8	4.4	46.95	4.61
4	7/0.85	0.8	4.8	50.2	4.61
6	1/2.76	0.8	4.9	66.8	3.08
6	7/1.04	0.8	5.4	71.04	3.08
10	1/3.58	1	6.4	111.62	1.83
10	7/1.35	1	6.8	118.61	1.83
16	7/1.70	1	8	178.68	1.15
25	7/2.14	1.2	9.8	280.51	0.727
35	7/2.52	1.2	11	378.97	0.524
50	19/1.78	1.4	13	508.07	0.387
70	19/2.14	1.4	15	715.76	0.268
95	19/2.52	1.6	17	989.79	0.193
120	37/2.03	1.6	19	1228.03	0.153
150	37/2.25	1.8	21	1509.8	0.124
185	37/2.52	2	23.5	1892.29	0.0991
240	61/2.25	2.2	26.5	2489.14	0.0754
300	61/2.52	2.4	29.5	3114.25	0.0601
400	61/2.85	2.6	33.5	3967.07	0.047
