1kv LV ABC 3 Core Bare Support African Cable
YIFANG ELECTRIC GROUP INC.- Size：3 X 35 to 3 X 150mm2
- Operating Temperature：90centigrade
- Insulation：XLPE
- Phase Color：Red,Black,Grey
- Neutral：Bare
- Standards：NBR8182,Nm-IEC60811-1-1
Base Info
- Model NO.：ABC-BE24
- Transport Package：Wooden Drum or Wooden-Steel Drum
- Specification：CE SABS RoHS SGS UL CCC
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544492100
- Production Capacity：5, 000, 000km,Month

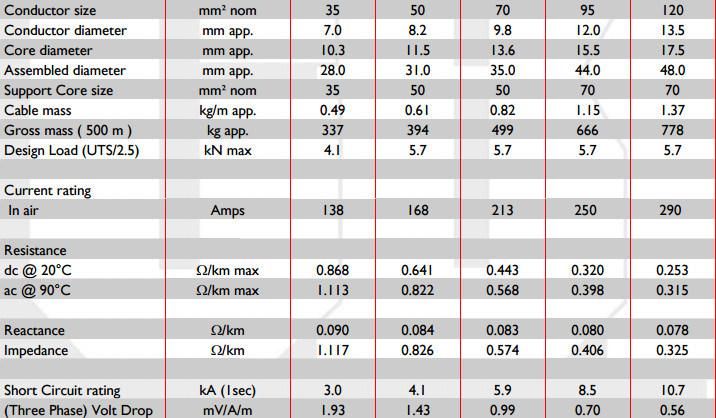

Description
Bundle Size mm²
Phase Neutral Lighting
Bundle
Phase
Conductor
Approx. Ø
Mm
Neutral
Conductor
Approx. Ø
Mm
Lighting
Conductor
Approx. Ø
Mm
Max
Current
Rating
Air at
30°C
3 volt
Drop
PF=1.0
At 30°C
V/A/km
Max Liner
Resistance
Per phase
Conductor
At 30°C-km
Approx
Overall
Ø
Mm
Approx
Weight
Kg/m
3X25 + 54.6 + 1X25
29
0.70
9
12.4
9
98
2.62
1.200
3X35 + 54.6 + 1X25
31
0.82
10.2
12.4
9
120
1.89
0.868
3X50 + 54.6 + 1X25
33
0.95
11.6
12.4
9
150
1.40
0.641
3X70 + 54.6 + 1X25
37
1.25
13.7
12.4
9
200
0.97
0.443
3X95 + 54.6 + 1X25
41
1.45
15.2
12.4
9
240
0.71
0.320
3X120 + 70 + 1X25
45
1.70
16.5
13.5
9
280
0.57
0.253
3X35 + 35BN
23
0.47
9.65
7.05
N/A
130
1.08
0.868
3X70 + 50BN
30
0.84
11.05
8.05
N/A
205
0.55
0.443
Cable
Description
Size (mm²)
Current Rating
(AMP)
Weight
(kg/m)
2X25
25
98
0.23
4X25
25
92
0.46
2X16AI
16
80
0.15
4X16AI
16
74
0.30
4 Airdac
4-Phase & Neutral,
2.5 Earth
50
0.16
6 Airdac
6-Phase & Neutral,
4 Earth
65
0.22
10 Airdac
10-Phase & Neutral,
7.5 Earth
90
0.32
16 Airdac
16-Phase & Neutral,
10 Earth
125
0.49
4 Airdac II
4
50
0.12
10 Airdac II
10
86
0.25
16 Airdac II
16
125
0.41
