• Range of Application：Weather Resistant
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Size：6mm2 10mm2 16mm2
• Transport Package：by Sea
• Origin：China
• HS Code：8544492100
• Production Capacity：100km,Month

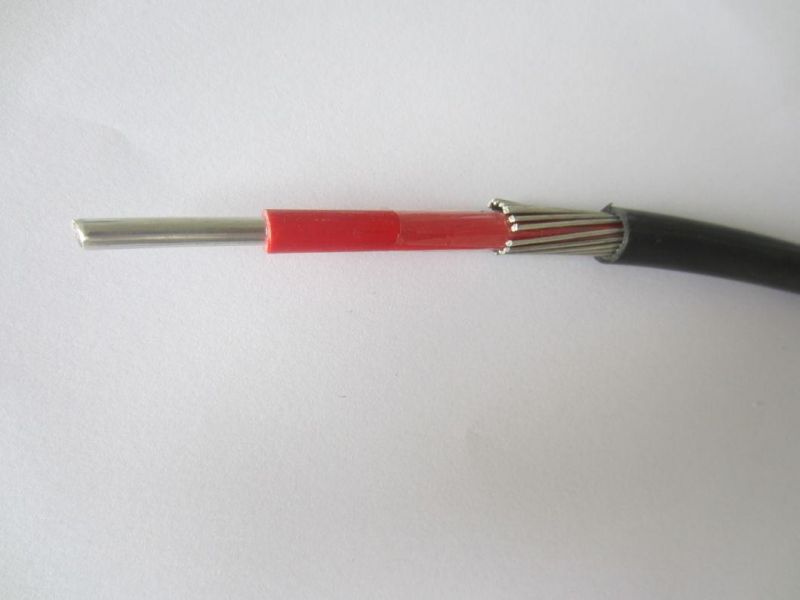

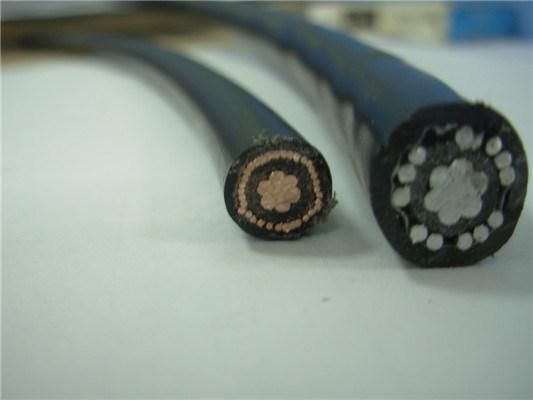

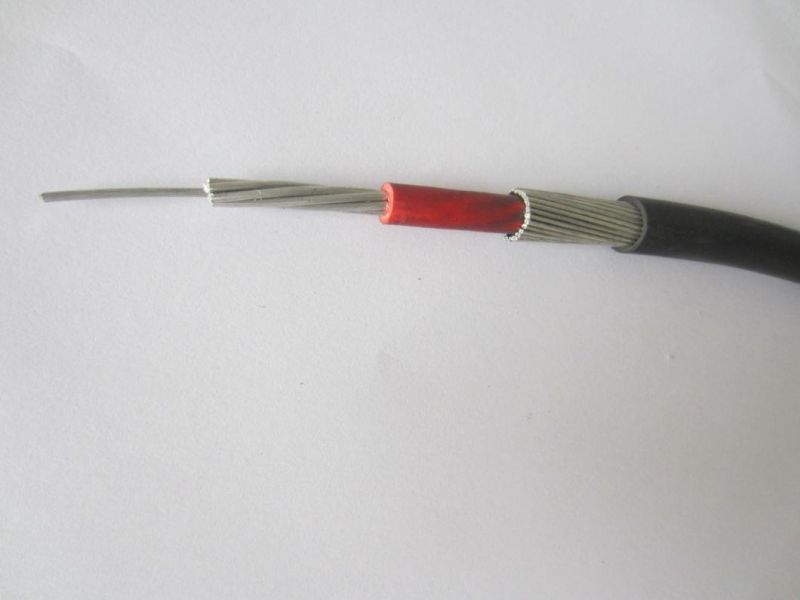

Conductors:Plain annealed copper, hard drawn copper, IEC60228Insulation:XLPECore identification:BlackConcentric layer:Neutral conductor (blue) & an uninsulated CPC (Circuit protective conductor)Pilot Cable:2x0.5mm2 with insulationSheath/Jacket:PVC (Polyvinyl-Chloride)/PEVoltage:600/1000vOperating temperature:Maximum 90°C, minimum bending 0°CStandard:LV & MV polymeric insulated cables for use by distribution and generation utilities. Specification for multicore and multipair cables for installation above and below ground. Single wire armoured and PVC/PE sheathed multicore cable with copper conductorsApplications:suitable for underground general use



Dimensional Data

No Of Cores	Size (mm)	Conductor Stranding	Core Colour	Overall Diameter (mm)	Weight (kg/km)
2	4	7/0.85	Black	9.1	151
2	6	7/1.04	Black	9.3	185
2	10	7/1.35	Black	11	280
2	16	7/1.7	Black	12.1	397
2	25	11/1.7	Black	14.4	596
2	35	15/1.7	Black	16	789

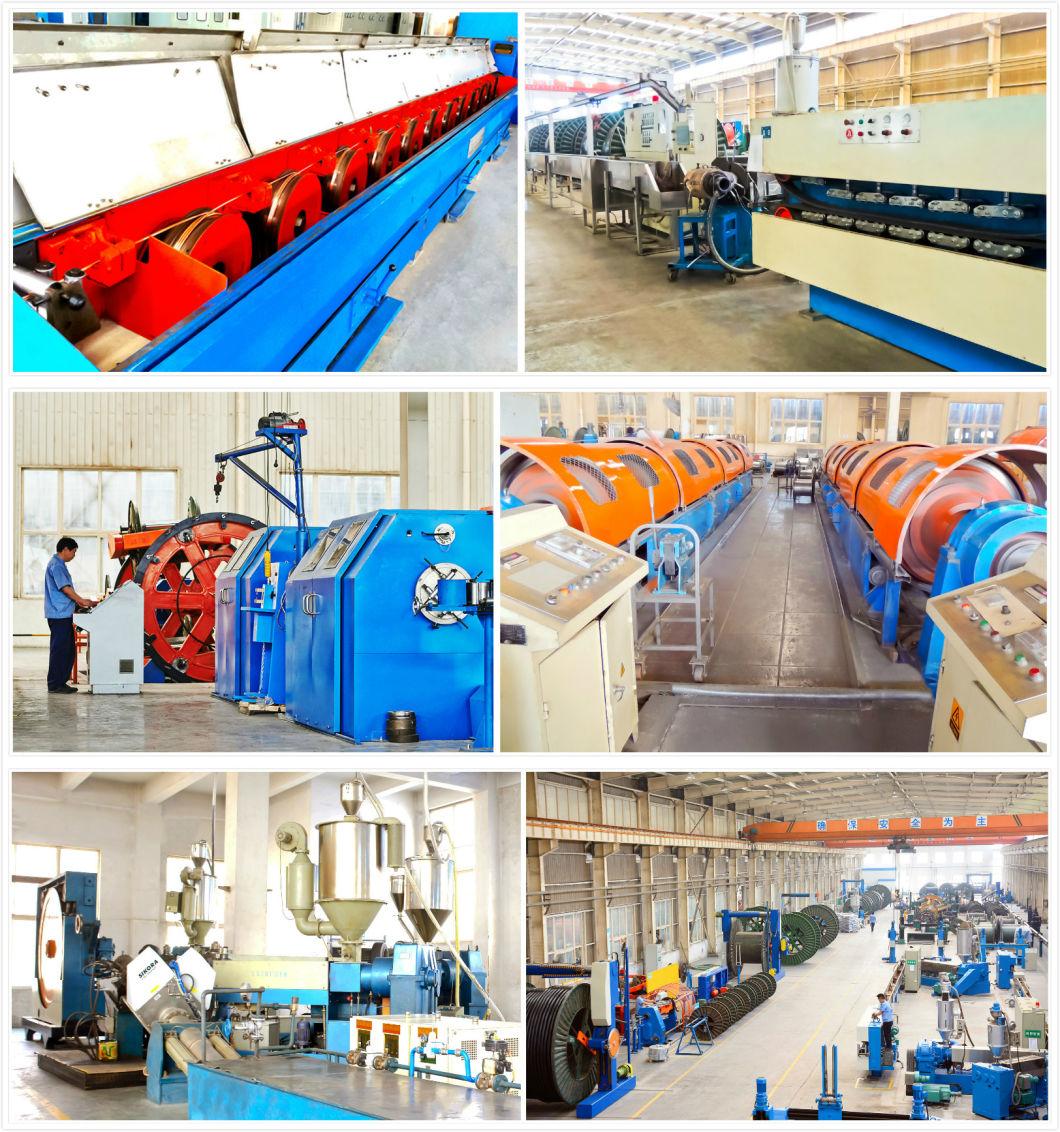

Production Equipment

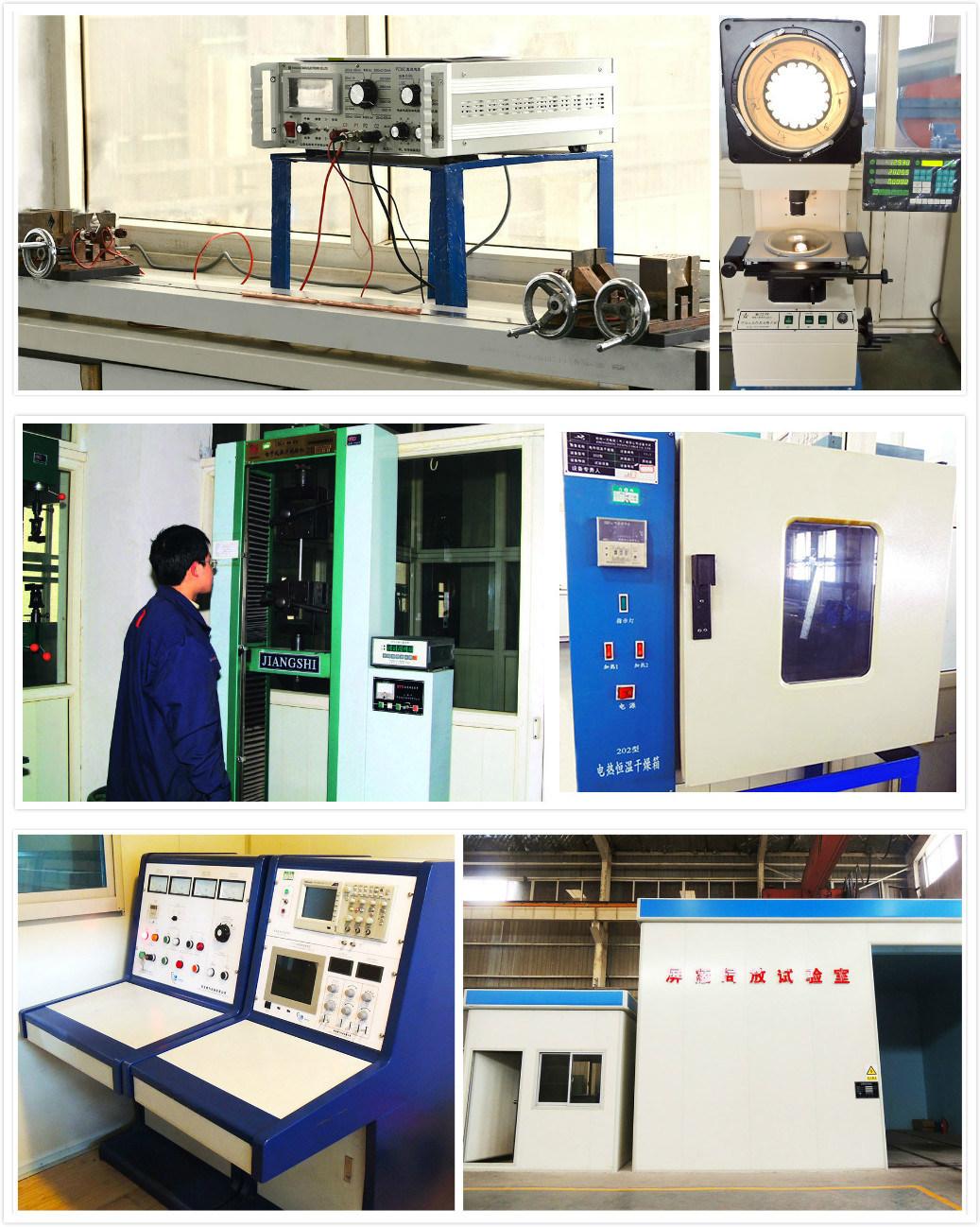

Test Equipment

Packing and Delivery


Certificates
