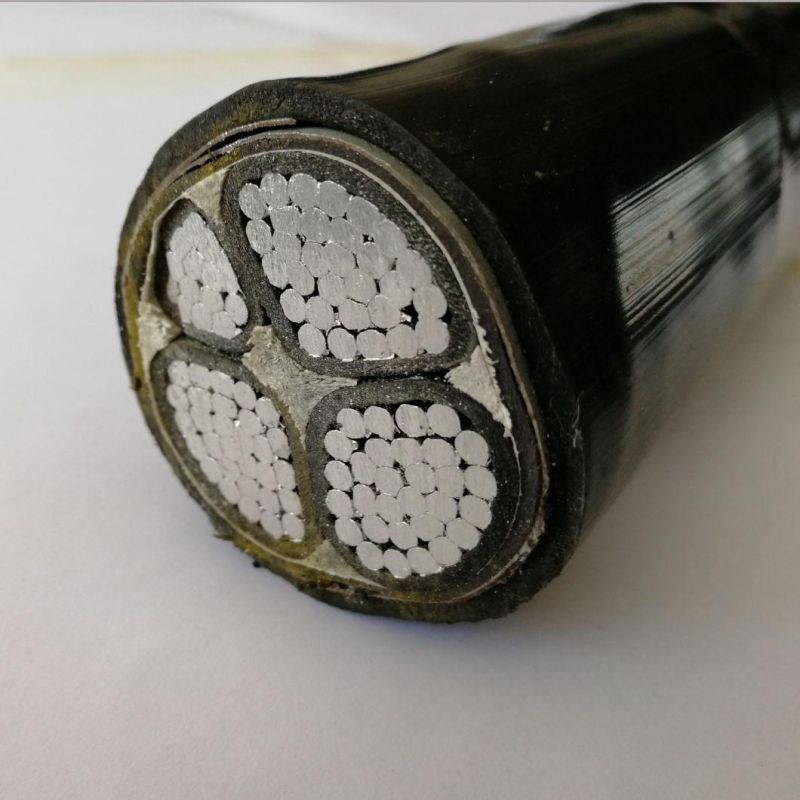

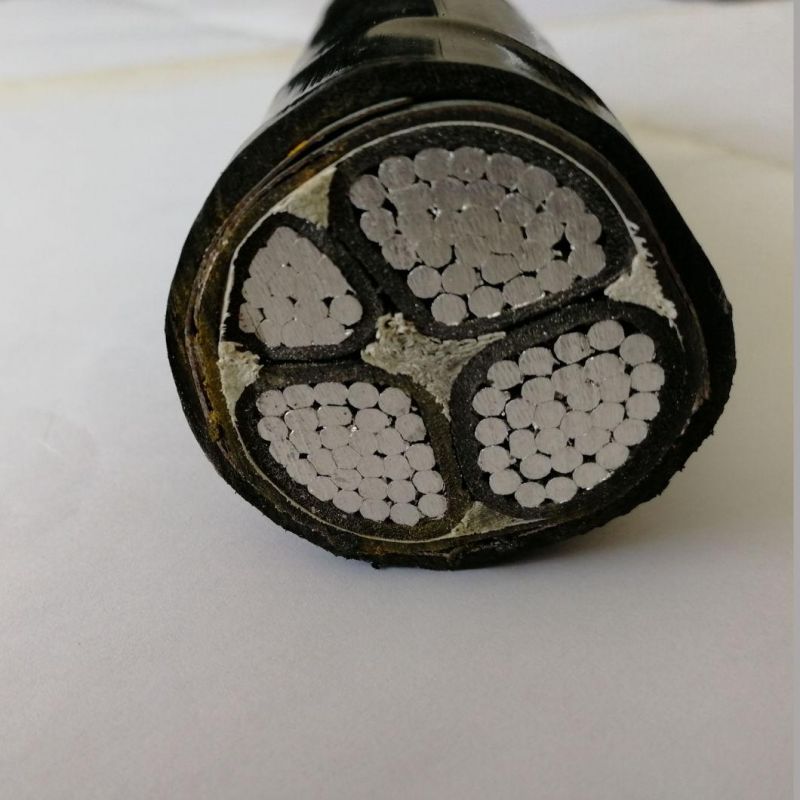

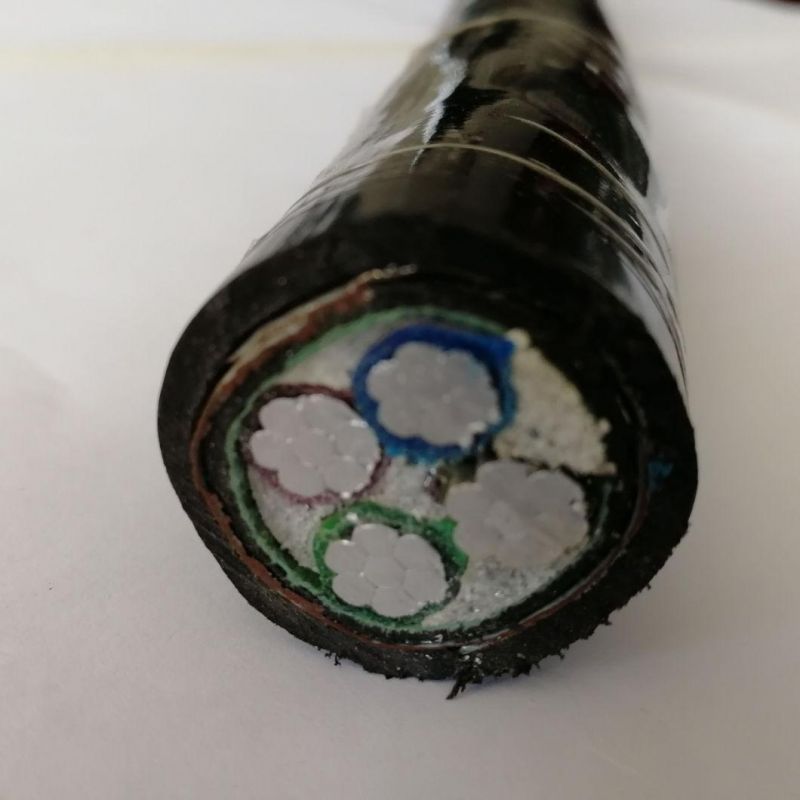

0.6/1kv Cables De Reseau Souterrain Cable Bt 3X95+50mm2 Alu Steel Armour U 1000 Arvfv Cable

YIFANG ELECTRIC GROUP INC.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Cable ARVFV 3X95+50mm2
  • Wire Core Material：Aluminum Wire
  • Certification：ISO, CCC, CE, UL
  • Model：YJLV22
  • Brand：Yifang Cable
  • Rated Voltage：0.6,1kv
  • Conductor：Aluminum
  • Sheath Color：Black
  • Cores：4
  • Section Area：3X95+50mm2
  • Country Exported：West Africa:Togo,Cote Diva,All Over The World
  • Other Sizes：10mm2 to 240mm2
  • Standard：IEC 60502-1 or NFC
  • Armour：Double Steel Tape Armour
  • Transport Package：Wooden Drum
  • Specification：1.1m drum or 2.2drum
  • Trademark：Yifang Cable
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：300km Per Month

Description

TECHNICAL DATA SHEETCâble ARVFV 3x95mm²+50mm² AluItemDescriptionUnitData1Standard IEC 60502-12Size 3x95+50mm23Rated VoltagekV0.6/14Phase core   Cores 3 Norminal Cross Sectional Areamm295 Conductor Compact sector aluminum Standing No.Of Wireno.sMin.15 Max.DC Resistance at 20ºCΩ/km0.32 Insulation XLPE Norminal Thicknessmm1.15Earth core   Cores 1 Norminal Cross Sectional Areamm250 Conductor Compact sector aluminum Standing No.Of Wireno.sMin.6 Max.DC Resistance at 20ºCΩ/km0.641 Insulation XLPE Norminal Thicknessmm1.06Filler(if any) PP7Wrapping tape Non-woven clothing tape8Inner Sheath PVC Norminal Thicknessmm1.29Armor Steel tape Norminal Thickness 0.510Outer Sheath PVC Norminal Thicknessmm2.211Overall diametermm38.712Approx.Weightkg/km22800.6/1kv Cables De Reseau Souterrain Cable Bt 3X95+50mm2 Alu Steel Armour U 1000 Arvfv Cable
