• Model NO.：MV-BE41
• Wire Core Material：Round Aluminum or Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Mv-Be41
• Brand：Yifang
• Standard：ASTM
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：2 AWG TO 4,0awg
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601200
• Production Capacity：300km,Month

Basic Info.

Model NO. MV-BE41 Wire Core Material Round Aluminum or Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Mv-Be41 Brand Yifang Standard ASTM Transport Package Wooden or Wooden-Steel Drum Specification 2 AWG TO 4/0awg Trademark Yifang Cable Origin Zhengzhou, China HS Code 8544601200 Production Capacity 300km/Month

Product Description

TRXLPE 35kV Primary URD Concentric Cable Neutral LLDPE Jacket AEIC CS8-07 1 Applications
For use on single phase and three phase primary underground distribution systems operating at 15 kV phase to phase at 100 % and 133 % insulation level. Suitable for either direct burial or installation in ducts.

Construction
Copper or aluminum concentrically stranded compressed conductor, triple single head extruded conductor shield, TRXLPE (tree-retardant cross-linked polyethylene) insulation and easy strippable insulation shield, all dry cured; solid bare copper wires uniformly spaced around the cable as a concentric neutral; LLDPE jacket with extruded longitudinal colored stripes, surface printed.

Standards

• Conforms to ICEA S-94-649 Std. for Concentric Neutral Cables Rated 5,000 - 46,000 V.
• Conforms to ICEA S-97-682 Std. for Utility Shielded Power Cables Rated 5,000 - 46,000 V.
• Conforms to AEIC CS8 Specification for Extruded Dielectric Shielded Power Cables Rated 5 through 46kV.
• Conforms to ANSI/ICEA T-34-664-2007 Test Method for Conducting Longitudinal Water Penetration.

Options

• EPR insulation
• Filled strand
• Cable core water blocking.

Notes

• Ampacities are based on the NEC.
• Cable Tray: Three single cables, installed in uncovered cable tray in accordance with NEC Section 392.13; operating at 105 ºC conductor, at an ambient temperature of 40 ºC.
• Buried Duct: Three cables per duct operating at 105 ºC conductor, 20 ºC ground ambient, earth ρ = 90, 100% load factor.
• Conduit in Air: Three cables per isolated conduit in air at 40 ºC operating at 105 ºC conductor (NEC Table 310.73).

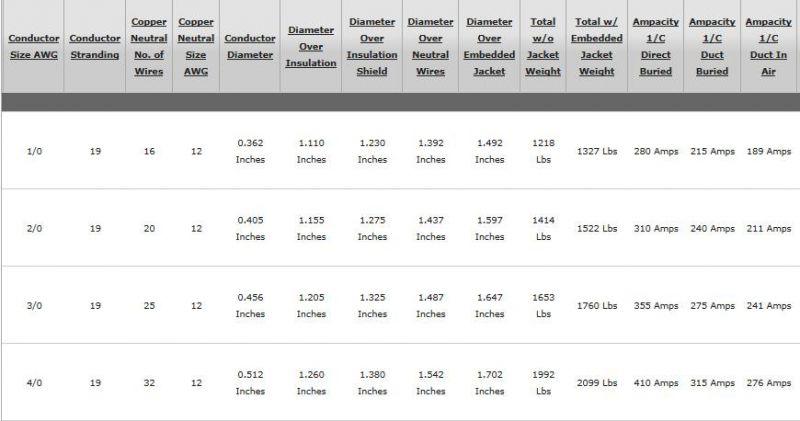

Specification

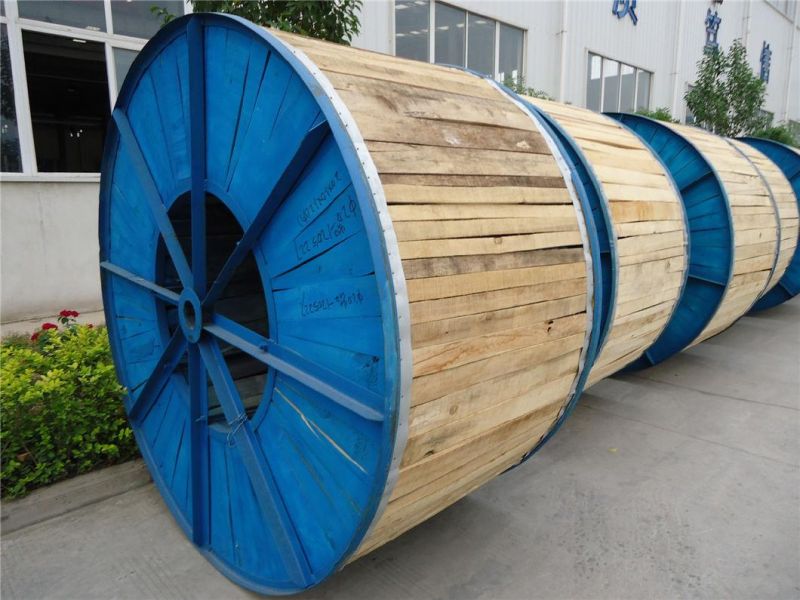

Package and Delivery
