• Model NO.：Lihh
• Range of Application：Flame Retardant
• Certification：CE, UL, CCC, RoHS, VDE
• Brand：Feiya
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Introduction1Can be customized according to requirements.2Independent brand recruitment agency.3High quality, ISO 9001, CCC, CE, RoHS certified.4ODM&OEM is available.

Technical data:

Basic:

• Cable type: Control / signal cable
• Operating voltage: 300/500V
• Test voltage: 3000V
• Insulation resistance: 20MΩxkm
• Capacity: (at 800Hz):
  150pF/m
• Inductivity: 0,65 mH/km
• Min. bending radius (flexible connections): 7,5 x Ø
• Min. bending radius (fixed installations): 4 x Ø

Operating temperature:

• Fixed installation: -40ºC do 80ºC
• Flexible connections: -5ºC do 80ºC

Installation details:

• Indoor cable
• Flexible connections
• Min. installation temperature: -5ºC

Environmental resistance:

• Halogen-free
• Flame retardance on a single wire
• Flame retardance on a bunched wires
• LOI >29

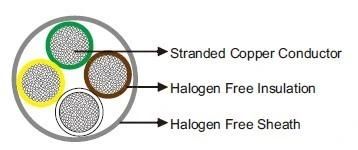

Basic:

• Conductor: bare copper conductors
• Conductor stranding: class 5 (acc. to EN 60228, IEC 60228)
• Core arrangement: multi-core cable

Application:

LiHH cable is for use in flexible or stationary applications under low mechanical stress with free movement without any tensile stress, loads or forced movements in dry, moist and wet conditions. Commonly used as connecting cable for signal, measuring, control, call-announcing and two-way intercom systems, clock installations, electronic weighing machines and electrical apparatus for office use. The halogenfree thermoplastic jacket is flame retardant and will give off no corrosive or toxic gases in the case of fire. Commonly installed in public buildings, laboratories, trading and transportation centers. Not permitted for outdoor use.

Dimensions and Weight

CONSTRUCTIONNOMINAL OVERALL DIAMETERNOMINAL WEIGHTNO. OF CORES×MM2MMKG/KM2×0.143.4123×0.143.6154×0.143.8175×0.144.1226×0.144.4257×0.144.4268×0.145.12910×0.145.43512×0.145.84320×0.147.27125×0.148.0912×0.254.0223×0.254.2254×0.254.5285×0.254.9346×0.255.3397×0.255.3428×0.256.45010×0.257.06012×0.257.26716×0.257.9852×0.344.4283×0.344.6304×0.345.0405×0.345.7447×0.346.16010×0.347.88012×0.348.0973×2×0.347.4494×2×0.348.1602×0.54.9313×0.55.2374×0.55.8455×0.56.3587×0.57.07212×0.59.111721×0.511.51762×0.755.3414×0.756.3605×0.757.1707×0.757.78512×0.7510.41653×16.1574×16.6673×1.57.4724×1.58.0875G1.58.41187G1.59.11505G2.510.5198
