• Model NO.：Type 240
• Wire Core Material：Tinned Copper
• Certification：ISO, CCC, CE
• Model：Mc
• Brand：Fengda
• OEM / ODM：Available
• Rated Voltage：1.1 Kv - 11 Kv
• Installation Conditions：in Free Air, in Duct, Mobile Equipment, Machines
• Behaviour in Flame and Fire：Fire Retardant
• Transport Package：Drum
• Specification：1.8m * 1.8m * 1.1m
• Trademark：Fengda
• Origin：China
• HS Code：8544421900
• Production Capacity：50000000 Meter , Year

Basic Info.

Model NO. Type 240 Wire Core Material Tinned Copper Certification ISO, CCC, CE Model Mc Brand Fengda OEM / ODM Available Rated Voltage 1.1 Kv - 11 Kv Installation Conditions in Free Air, in Duct, Mobile Equipment, Machines Behaviour in Flame and Fire Fire Retardant Transport Package Drum Specification 1.8m * 1.8m * 1.1m Trademark Fengda Origin China HS Code 8544421900 Production Capacity 50000000 Meter / Year

Product Description

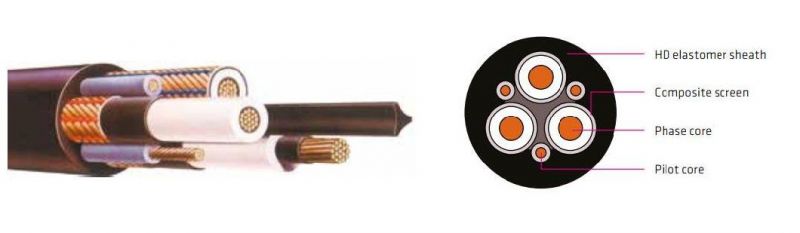

UNDERGROUND MINE CABLES 1.1-11 kV

Cable description
Composite screened cable for hand-held equipment to AS/NZS 1802

Application
1.1/1.1 kV to 11/11 kV cable used extensively for feeder con-nection between transformer and gate-end box or similar,continuous miner cable or feeder cables to pumps. Having three pilots, the cable can be used in long runs, withoutcompromising pilot control protection system resistance limitations.For applications requiring high degrees of flexibility,Type 241 cables would be more appropriate.

Temperature range:
Maximum operating temperature: +90 °C
Minimum operating temperature: -25 °C

Flexibility:Flexible

Resistance to
Chemical exposure: Very good/Frequent
Mechanical impact: Heavy
Water exposure: Immersion/Temporary coverage
Solar radiation and weather exposure: Suitable for direct exposure

Installation conditions
In free air / In duct / Machines / Mobile equipment
