• Model NO.：Type 245SF
• Wire Core Material：Tinned Copper
• Certification：ISO, CCC, CE
• Model：Mc
• Brand：Fengda
• OEM / ODM：Available
• Rated Voltage：1.1 Kv - 11 Kv
• Installation Conditions：in Free Air, in Duct, Mobile Equipment, Machines
• Behaviour in Flame and Fire：Fire Retardant
• Screen：Semiconductive Elastomer Screen
• Transport Package：Drum
• Specification：1.8m * 1.8m * 1.1m
• Trademark：Fengda
• Origin：China
• HS Code：8544421900
• Production Capacity：50000000 Meter , Year

Basic Info.

Model NO. Type 245SF Wire Core Material Tinned Copper Certification ISO, CCC, CE Model Mc Brand Fengda OEM / ODM Available Rated Voltage 1.1 Kv - 11 Kv Installation Conditions in Free Air, in Duct, Mobile Equipment, Machines Behaviour in Flame and Fire Fire Retardant Screen Semiconductive Elastomer Screen Transport Package Drum Specification 1.8m * 1.8m * 1.1m Trademark Fengda Origin China HS Code 8544421900 Production Capacity 50000000 Meter / Year

Product Description

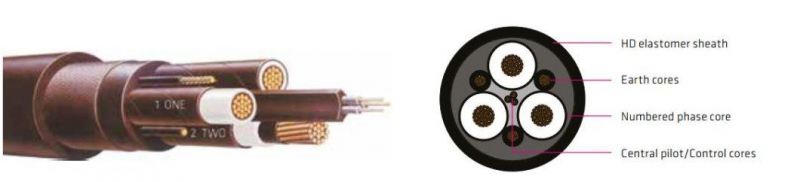

UNDERGROUND MINE CABLES 1.1-11 kV

Cable description
Composite screened cable for hand-held equipment to AS/NZS 1802

Application
These cables have been designed to operate within the tightbending radii experienced with cable chains used on longwallshearers, and provide additional pilot conductors for modernmachine monitoring.For general purpose and especially for trailing applications incable chains on Longwall Shearer equipment, and in environments calling for maximum flexibility.

Temperature range:
Maximum operating temperature: +90 °C
Minimum operating temperature: -25 °C

Flexibility:Flexible

Resistance to
Chemical exposure: Very good/Frequent
Mechanical impact: Heavy
Water exposure: Immersion/Temporary coverage
Solar radiation and weather exposure: Suitable for direct exposure

Installation conditions
In free air / In duct / Machines / Mobile equipment
