• Model NO.：Power Cables
• Material Shape：Round Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Fengda
• Colour：Red,Green,Blue,Black,White,as Request
• Flame Test：Yes
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Factory Type：Manufacturer
• Transport Package：Rolls or According to Cusotmers′ Reques
• Specification：0.12 to 400mm2
• Trademark：fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：5000000km,Year

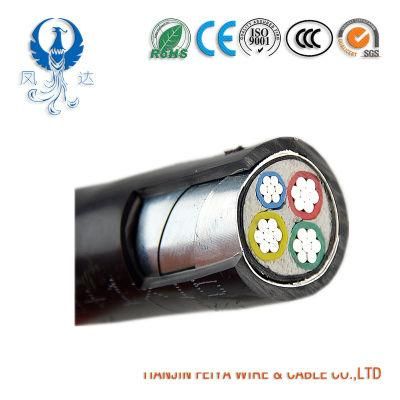

Construction :

1. Conductor: Solid & stranded copper  wire class1&2  acc.to IEC60228

1. Insulation:XLPE Compound
2. Filler: PVC Compound
3. Sheath:PVC Compound
4. Sheath Color:Black,Grey

Techical Data :

Standard:IEC 60502-1 / VDE 0276 /NT88-22
Fixed installed: -30ºC  up to  70ºC
At short circuit of max.5s  up to 160ºC
Nominal Voltage :  600/1000V

Min inner bending radius:
Single coe:15D
Multi core:12D

Behaviour in fire:
Flame retardant cable acc.to IEC60332-1
Application:

XLPE power cable for static outdoor application (with protection against direct UV-irradiation), in ground, in water, within facilities, in cable canals, in concrete, in conditions where heavier mechanical loads and specially tensile strains, are not expected. Used in electric power plants, transformer stations, industrial plants, metropolitan networks and in other electric plants, same as for connection of signalling devices in industry, traffic and similar.
Technical Parameters:
