Low Voltage Overhead Aluminum Twisted Selfsupporting ABC Cable 2 Core
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Crosslinking
- Insulation Material：XLPE
Base Info
- Model NO.：Low Voltage Overhead Aluminum Twisted ABC
- Material Shape：Round Wire
- Range of Application：Overhead
- Certification：ISO9001, CE, UL, CCC
- Brand：Yifang

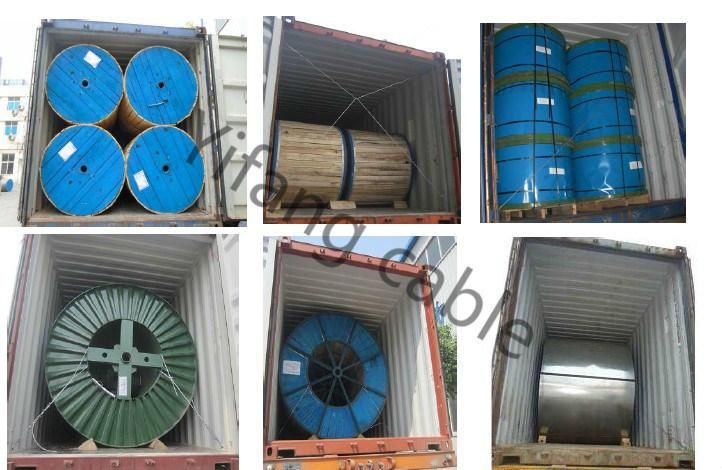

- Transport Package：Drums
- Specification：1000meter per drum
- Trademark：Yifang
- Origin：China
- HS Code：8544601200
- Production Capacity：500km Per Month
Description
Section area mm2
Number of core/diameter mm
Thickness of the
insulation
The resistance of the conductor at 20°C ≤ Ω/km
Reference weight kg/km
Main core
The fourth core
3*4+1*2.5
1/2.25+1/1.78
1.0
1.0
7.41
48.3
3*6+1*4
1/2.76+1/2.25
1.0
1.0
4.61
95.5
3*10+1*6
7/1.35+1/2.76
1.0
1.0
3.08
141.2
3*16+1*10
7/1.70+7/1.35
1.2
1.2
1.91
215.3
3*25+1*16
7/2.14+7/1.70
1.2
1.2
1.20
289.1
3*35+1*25
7/2.52+7/2.14
1.2
1.2
0.868
382.4
3*50+1*35
7/3.00+7/2.52
1.4
1.4
0.614
526.0
3*70+1*50
19/2.14+7/3.00
1.4
1.4
0.443
655.0
3*95+1*70
19/2.52_19/2.14
1.6
1.6
0.320
886.6
3*120+1*95
37/2.03+19/2.52
1.6
1.6
0.253
1075.7
3*150+1*120
37/2.52+37/2.03
1.8
1.8
0.206
1320.8
