• Model NO.：AI-9
• Fiber Diameter：Cladding Diameter: 80~150um
• Fiber Aligning Method：Meticulous,Core,Clad,Manual
• Actual Average Splice Loss：0.02db(Sm),0.01db(Mm),0.04db(Ds),0.04db(Nzds)
• Typical Splicing Time：Typical 9 Sec (Standard Sm Fiber)
• Fiber Image Magnification：200X (X or Y View),50X (X and Y View)
• Monitor：3.5 Inch TFT Color LCD Monitor
• Fiber Count：Single
• Return Loss：>60db
• Warranty：12 Months
• Transport Package：Standard Carton
• Specification：ROhS
• Trademark：SOFTEL OEM
• Origin：Zhejiang, China
• HS Code：8517622990
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. AI-9 Fiber Diameter Cladding Diameter: 80~150um Fiber Aligning Method Meticulous,Core,Clad,Manual Actual Average Splice Loss 0.02db(Sm),0.01db(Mm),0.04db(Ds),0.04db(Nzds) Typical Splicing Time Typical 9 Sec (Standard Sm Fiber) Fiber Image Magnification 200X (X or Y View),50X (X and Y View) Monitor 3.5 Inch TFT Color LCD Monitor Fiber Count Single Return Loss >60db Warranty 12 Months Transport Package Standard Carton Specification ROhS Trademark SOFTEL OEM Origin Zhejiang, China HS Code 8517622990 Production Capacity 1000 PCS/Month

Product Description

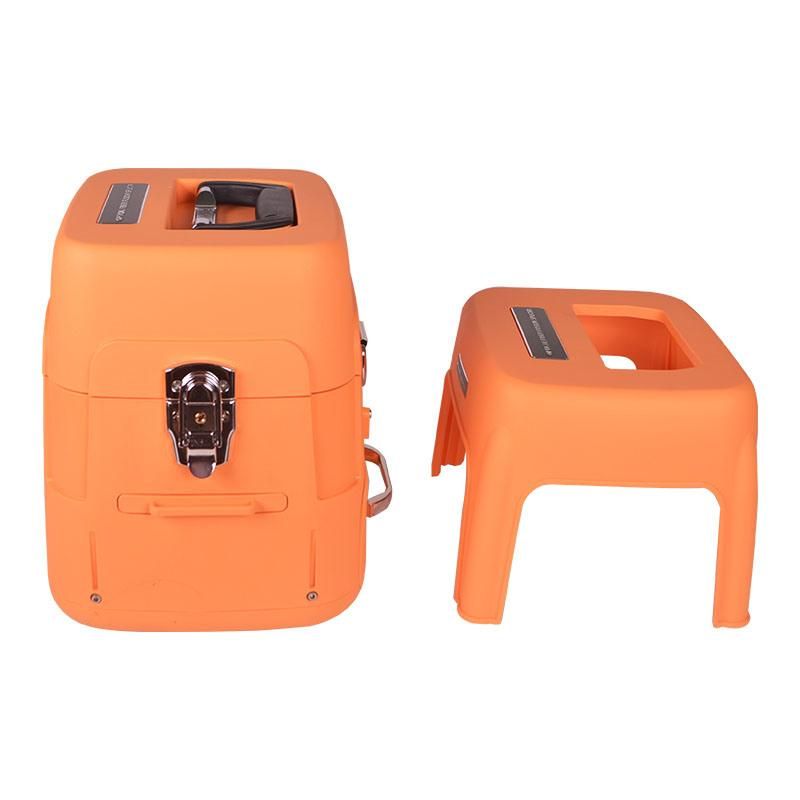

AI-9 Fusion Splicer
3.5 inches high Resolution colorful LCD display
L Average splice time: 10 second
L Average tube-heat time: 40 second
L Lithium battery: Up to 180 times of continuous splice and heat
L Simultaneous X and Y views with 50 times magnification
L New developed technology providing wind and dust resistance
L Splicing mode
I Auto & Manual
L USB Port
L Storing 6, 000 groups of splice results

Applicable fibers	SM MM DS NZDS
Fiber diameter	Cladding diameter:80-150μm;Coating diameter:100-1000μm
Fiber aligning method	Meticulous , Core , Clad , Manual
Actual average splice loss	0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Typical splicing time	Typical 9 sec (standard SM fiber)
Tube typical heating time	Typical 30 sec
Storage of splice result	4000 results, 20 parameter per result
Fiber image magnification	200X (X or Y view) , 50X (X and Y view)
Battery capacity	Typical 300 cycles (splice/tube heat with inner Li-battery)
Monitor	3.5 inch TFT color LCD monitor
Power supply	AC 100-240V with AC adapter inner Li-battery (5200mAH)
Dimension	25mm(L)×105mm(W)×113mm(H)
Fiber cleaved length	8-16mm (Coating diameter:250μm)
Fiber count	Single
Return loss	> 60dB
Splicing mode	Auto Calibrate Normal Special
Splicing program	53 (templet), 40(user)
Protection sleeve length	60mm, 40mm
Tube heating program	9 (templet),24(user)
Tension test	2N
Electrode life	2500
Terminal	USB
Operating condition	0-5000m above sea level, -10-50 ° Max wind velocity of 15m/s
Weight	1.55Kg including battery
