• Model NO.：Control Cable
• Material Shape：Round Wire
• Range of Application：Equipment
• Certification：ISO9001, CE, CCC
• Brand：Yifang
• Cores Number：Multi Cores
• Armoured Type：Steel Wire , Steel Tape
• Standard：IEC 60245
• Screen Material：Copper Tape or Copper Wire Braiding

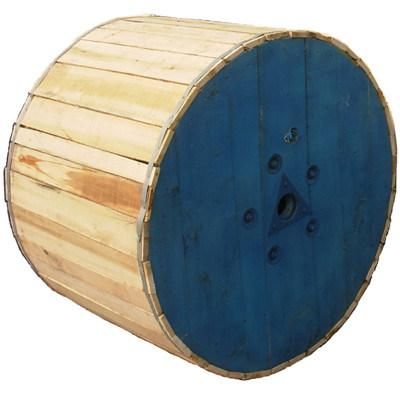

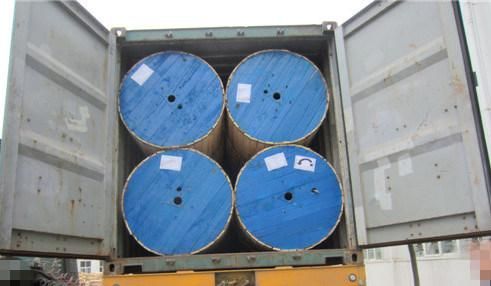

• Transport Package：Drum, Steel Drum
• Specification：7X2.5MM2
• Trademark：Yifang cable
• Origin：Zhengzhou Henan
• HS Code：8544492100
• Production Capacity：8000km,Year

Basic Info.

Model NO. Control Cable Material Shape Round Wire Range of Application Equipment Certification ISO9001, CE, CCC Brand Yifang Cores Number Multi Cores Armoured Type Steel Wire / Steel Tape Standard IEC 60245 Screen Material Copper Tape or Copper Wire Braiding Transport Package Drum, Steel Drum Specification 7X2.5MM2 Trademark Yifang cable Origin Zhengzhou Henan HS Code 8544492100 Production Capacity 8000km/Year

Product Description

PVC Insulated Flame Resistant Copper Tape Screened 450/750V Control Cables

Application

Control cables are suitable for d. C appication and for rated voltages up to 600/1000V ac, 50Hz--60Hz, as connection wire for electric devices as well as instruments in power station, substations, mines, petrochemical industry etc. As control circuit in control systems for single machine or set of machines, signal system and measuring system.

Product Description:

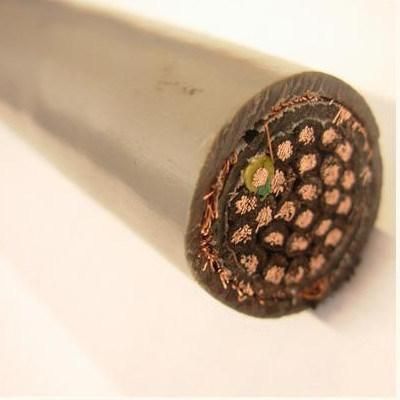

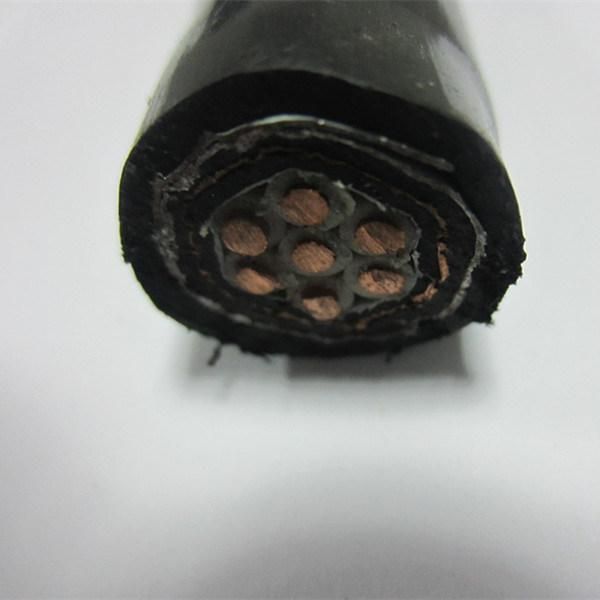

1) Copper core PVC insulated and PVC sheathed control cable
2) Copper core PVC insulated and PVC sheathed control cable with copper wire braid shielded
3) Copper core PVC insulated and PVC sheathed flexible control cable
4) Copper core PVC insulated and PVC sheathed flexible control cable with braided shield

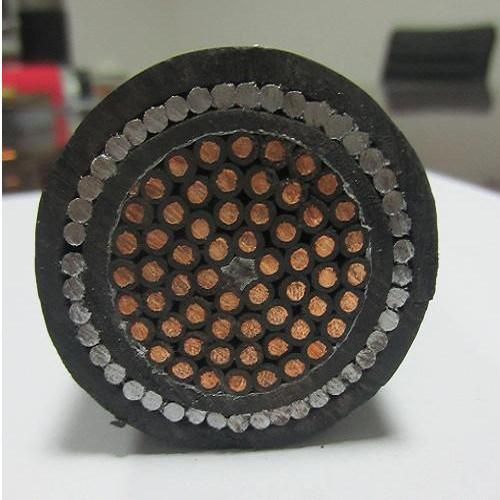

5) Copper core PVC insulated and PVC sheathed control cable with steel tape armouring

Specification:

Rated voltage: 450/750V, 0.6/1kV

1) Conductor: Solid / stranded copper wire (0.75~2.5mm2~10mm2)

Cores number: 2~61

2) Insulation: PVC/XLPE

3) Screen: Braided copper wire, copper tape or aluminum plastic composite tape

4) Armor: Steel tape or steel wire

5) Sheath: PVC / LSOH


Characticis:

PE insulated cable: 70C
XLPE insulated cable: 90C
PVC insulated cable: 70C&90C
