Rg8u Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：RG8U
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Brand：OEM
- Braiding：32,48,64,96,112,128,144
- Transport Package：200m,300m,305m
- Specification：2.74mm Conductor
- Trademark：FUU
- Origin：China
- HS Code：8544200000
- Production Capacity：3500km,Month
Description
Inner Conductor
7×0.752mm Bare Copper
Dielectric
7.24mm Solid PE
Shield 1
Nom. 7.85mm Bare Copper
Jacket
10.30mm PVC
Jacket Thickness
Application
Electrical Characteristics:
Capacitance
101.05 pF/m
Impedance
50 Ω
Velocity of Propagation
0.66
Max Operating Voltage
5000 VMS
Max Operating Frequency
1000 MHz
Bending Radius
40 mm
Mechanical and Envrionmental Properties
Cable bend radius
Operating Temp Range
-20 ºC to 80ºC
Cable diamensions
10.30mm

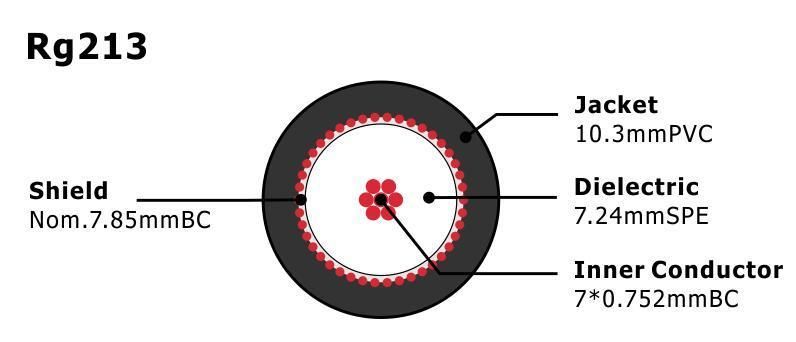

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
100
6.60
400
14.10
1000
24.00
Order Informations:
Marking
RG213 50 Ohm COAXIAL CABLE ×××M/FT
Package
Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time
Normally 25 days after received the deposit.
