Rg59 Micro 95% CCA PVC Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：RG59
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Brand：OEM
- Braiding：32,48,64,96,112,128,144
- Transport Package：200m,300m,305m
- Specification：0.8mm Conductor
- Trademark：FUU
- Origin：China
- HS Code：8544200000
- Production Capacity：3000km,Month
Description
Construction Parameters:
Inner Conductor
7×0.007"/7×0.18mm/7×33 AWG BC
Dielectric
0.087"/2.2±0.05mm Solid PE
Shield
0.12mm/34AWG Copper Clad Aluminum(95%)
Jacket
0.160"/4.05±0.1mm PVC
Application
For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance
20.74 Ohms/KM at 20ºC
Capacitance
52±2 pF/m
Impedance
75 ± 3 Ω
Return loss
between 5 and 1000MHz: > 22dB
Velocity of Propagation
0.66
Sparker Test (VAC)
3
Mechanical and Envrionmental Properties
Cable bend radius
10 times the cable diameter
Operating Temp Range
-20 ºC to 60ºC
Cable diamensions
0.238"±0.006"/6.05±0.15mm PE

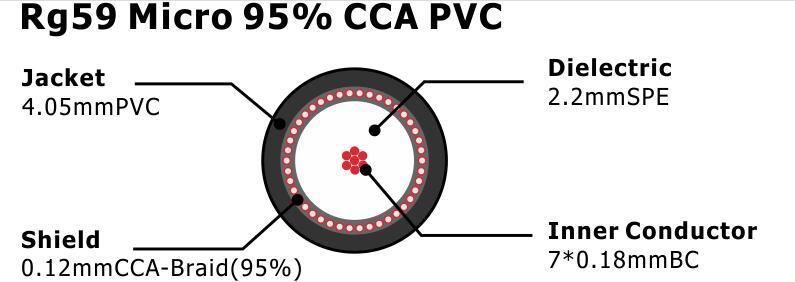

Cross Section
Attenuation(20ºC):
Frequency (MHZ)
Max Attenuation(dB/100ft)
Max Attenuation (dB/100m)
5
1.43
4.30
50
5.08
15.23
100
7.26
21.77
200
10.44
31.33
550
18.04
54.12
750
20.14
60.43
865
22.37
67.11
1000
25.90
77.69
