Rg59 Copper Coaxial Cable

Hangzhou Spring Electronics Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG59
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, RoHS
  • Brand：OEM
  • Braiding：32,48,64,96,112,128,144
  • Transport Package：200m,300m,305m
  • Specification：0.8mm Conductor
  • Trademark：FUU
  • Origin：China
  • HS Code：8544200000
  • Production Capacity：3000km,Month

Description

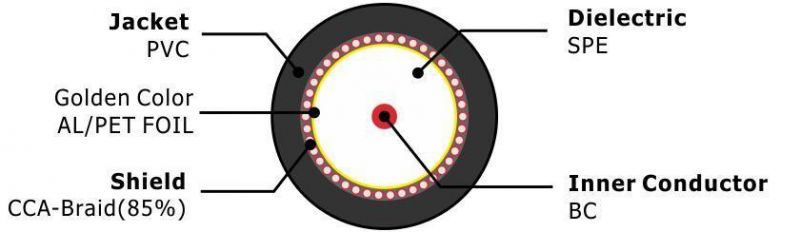

Construction Parameters:Inner Conductor0.58mm BCDielectric3.7±0.05mm Solid PEShield 1Golden Color AL/PET FOILShield 20.12mm/34AWG Copper Clad Aluminum(85%)Jacket6.00±0.15mm PVCApplicationFor Use in Longer CCTV Run Lengths, POCElectrical Characteristics: Inner Conductor Resistance66 Ohms/KM at 20ºCCapacitance67±2 pF/mImpedance75 ± 3 ΩReturn lossbetween 5 and 1000MHz: > 22dBVelocity of Propagation0.66Sparker Test (VAC)3 Mechanical and Envrionmental PropertiesCable bend radius10 times the cable diameterOperating Temp Range-20 ºC to 65ºCCable diamensions6.00±0.15mm PVC Cross SectionRg59 Copper Coaxial Cable Attenuation(20ºC):Frequency (MHZ)Max Attenuation (dB/100m)52.4507.510010.630018.345022.586531100033.5 Order Informations:MarkingRG59 CCTV COAXIAL CABLE  ×××M/FTPackage100m/Spool,300M/Wooden Spool,500M/Wooden SpoolDelivery timeNormally 25 days after received the deposit.
