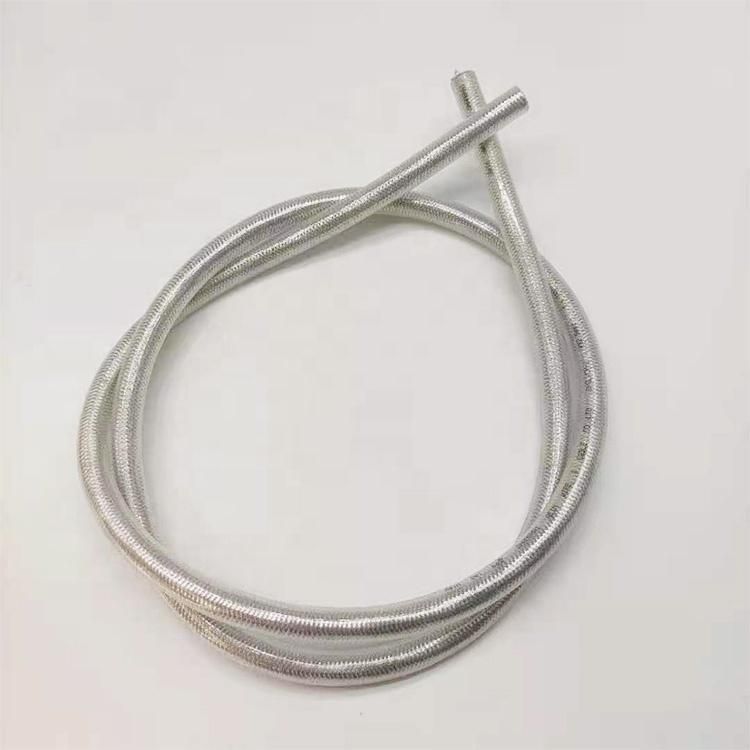

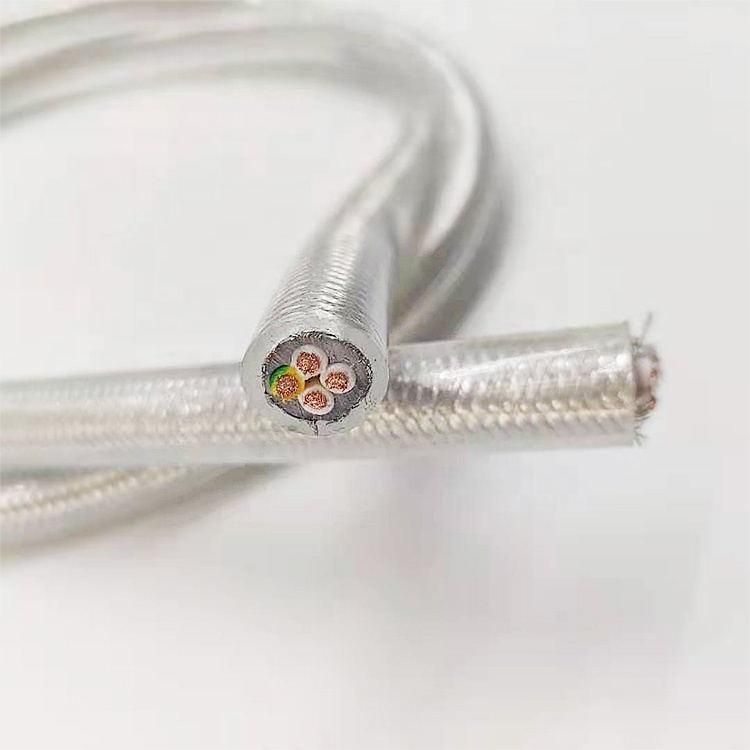

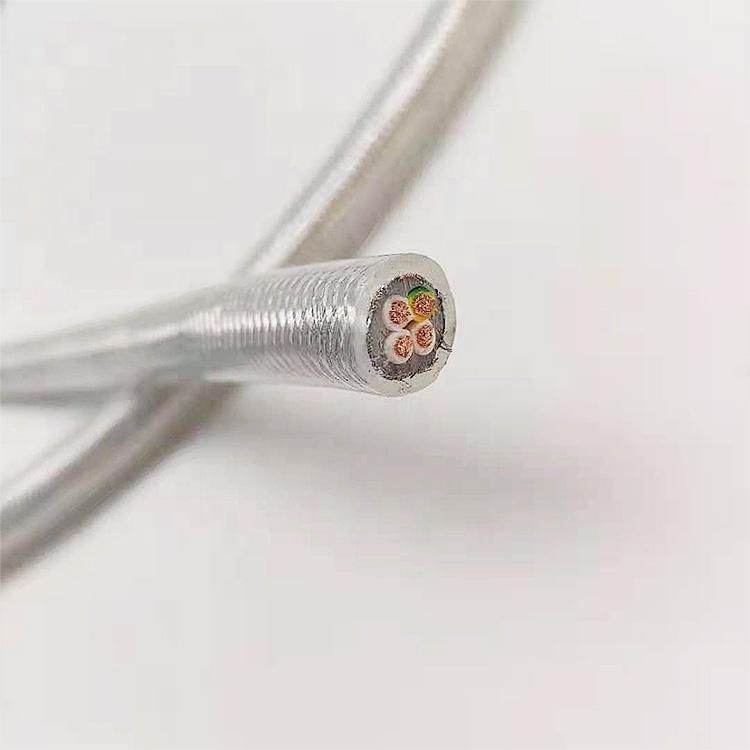

300/500V Opvc-Jz/Oz-Ycy Cable Transparent Sheath PVC Insulated Cable

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Electrical Facilities
  • Conductor Material：Copper
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：OPVC-JZ,OZ-YCY Cable
  • Material Shape：Round Wire
  • Range of Application：Acids Resistant
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

Item300/500V OPVC-JZ/OZ-YCY CableConductorBare copper strandInsulationPVCInner sheathPVCShieldCopper braid tinnedOuter sheathPVCSheath ColourTransparentCore NumberMulticores (As client's requirement)Rated VoltageUo/U:  300/500VTest Voltage4000 VTemperature RangeFixed min/max -40 °C / +80 °C
Moved min/max -15 °C / +70 °CBending RadiusFixed 6 x d
Moved 15 x dColorOptionalSpecial Features• 4 kV testing voltage
• Largely resistant to acids, bases and specified types of oil
•Additional mechanical protection by inner sheathApplicationPower, control and connecting cable in electrical facilities for lossless data and signal
transmission, fixed laying and flexible applications without tensile stress and without defined cable routing. Suitable for use in dry, humid and wet rooms. Outdoor use only with
UV-protection, no laying underground.
