• Model NO.：instrumentation cable 1.5mm2
• Wire Core Material：Tinned Wire
• Certification：CE, ISO, RoHS, CCC, UL, VDE
• Model：Kvv
• Brand：Yifang
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：multicores
• Trademark：Yifang Cable
• Origin：Zhengzhou, China
• HS Code：8544601200
• Production Capacity：300km,Month

Basic Info.

Model NO. instrumentation cable 1.5mm2 Wire Core Material Tinned Wire Certification CE, ISO, RoHS, CCC, UL, VDE Model Kvv Brand Yifang Transport Package Wooden or Wooden-Steel Drum Specification multicores Trademark Yifang Cable Origin Zhengzhou, China HS Code 8544601200 Production Capacity 300km/Month

Product Description

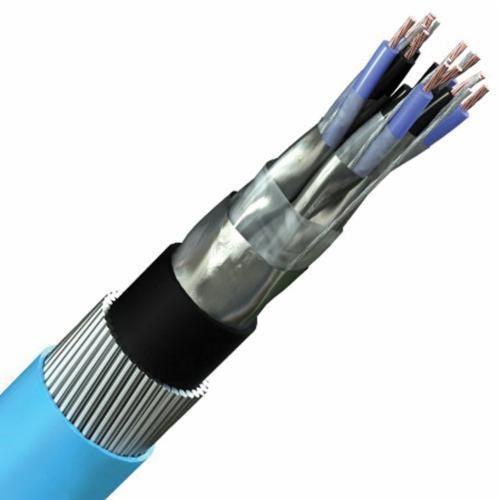

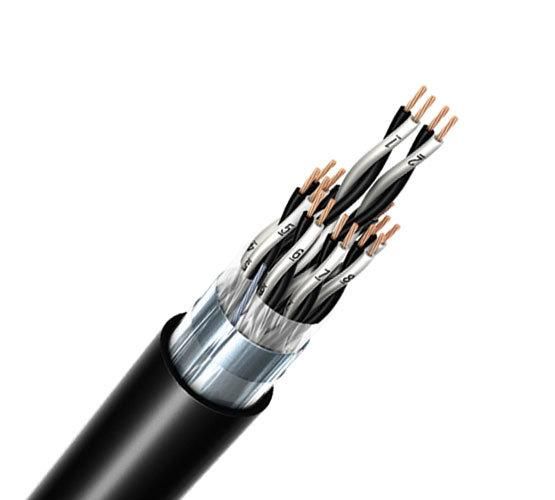

Instrumentation cable multi pairs triads,SWA,isos,0.5mm2 0.75mm2 1.5mm2



Application:

 Instrumentation cable can be used in interconnection of process control, communication & panel control systems like oil exploration, cement, paper, steel, power generation and others.

Specifications:

Conductors: Class 5 flexible plain copper

Insulation: PVC / XLPE

Individual shield: Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire for each pair or triad .

Overall  shield:  Aluminum foil-polyester tape with solid / 7 strands tinned copper drain wire

Sheath: PVC

Color code :
Pairs are black,white and alpha numeric coded;
Triads are black,white,red and alpha numeric coded
Voltage: 300/500V , 450/750V , 600/1000V

Operating temperature with PVC insualtion : Maximum 70°C

Operating temperature with XLPE insualtion : Maximum 90°C

Standard: BS 5308

Other customized options:
XLPE insulation
coloured outer sheath
non-shielded or overall shielded cables upon request
Galvanized steel wire armoured type
pairs are binded with Polyester tape and overall shielded with copper wire braidings
other constructions available upon request
Welcome to send us inquiry any time!

 Customized type accept!
